ViewSonicInteractive Flat PanelsSKU IFP8652-2ED

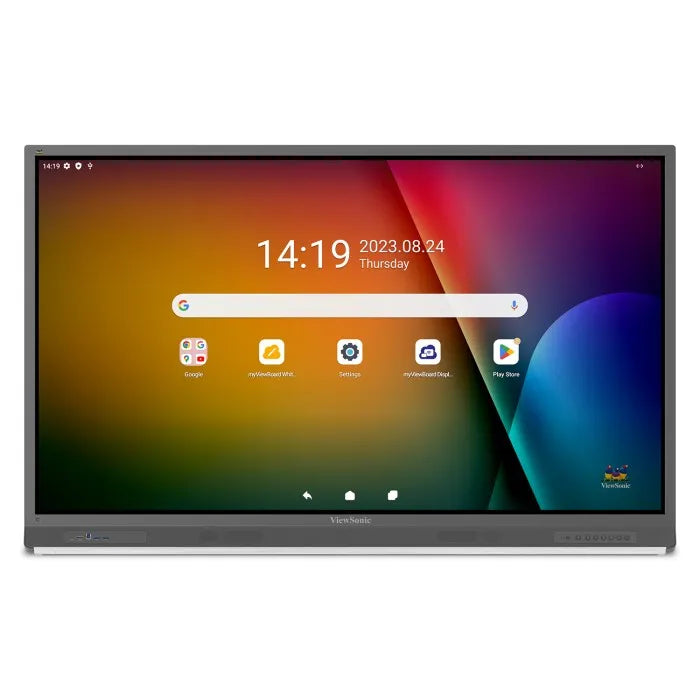

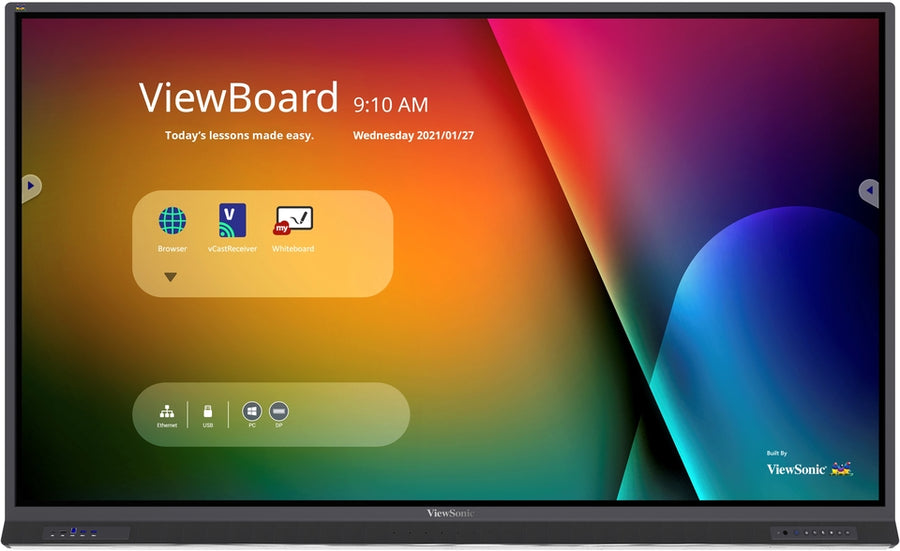

Viewsonic 86" Android EDLA-Certified ViewBoard Interactive Display
The Viewsonic 86" Android EDLA-Certified ViewBoard Interactive Display is a interactive flat panel available in the UAE from Procure.ae.
The Viewsonic 86" Android EDLA-Certified ViewBoard Interactive Display (SKU: IFP8652-2ED) is an advanced solution for modern classrooms, boardrooms, and collaborative spaces. Designed with a massive 86-inch 4K UHD touchscreen , this interactive display delivers stunning visual clarity and seamless multi-touch capabilities for dynamic presentations and engaging learning experiences. Powered by Android OS and certified with EDLA for security and device management, it supports a wide range of educational apps and collaboration tools . The ultra-responsive screen ensures precise writing—ideal for.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 86-Inch 4K UHD Touchscreen
- EDLA-Certified Security
- Android OS Platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-Inch 4K UHD Touchscreen
Provides expansive, ultra-high-definition visuals for immersive presentations.
02
EDLA-Certified Security
Ensures enterprise-level data protection and device management compliance.
03
Android OS Platform
Offers access to a wide ecosystem of educational and business apps.
04
20-Point Multi-Touch
Supports simultaneous interactions, perfect for group activities.
05
Integrated Wireless Casting
Enables seamless screen sharing from laptops, tablets, or smartphones.
06
Multiple Connectivity Ports
Features HDMI, USB-C, and more for versatile device integration.
07
Built-in Speakers & Microphone Array
Delivers clear audio for video calls, lessons, and meetings.
08
Robust Annotation Tools
Allows users to write, draw, and highlight directly on the screen.
Specifications
46 specificationsGeneral
Key FeaturesLight sensor, 9H anti-fingerprint and anti-glare glass, OPS slot, ViewBoard Cast wireless presentation, myViewBoard annotation software, infrared Ultra Fine Touch
What's in the BoxRemote control, Touch pen × 2, Quick Start Guide, Compliance statement, RS232 adapter, Clamp × 5, Camera Plate, Screw × 8, AAA Battery × 2, VB-WIFI-005 adapter, Power cord 3 m, HDMI cable 3 m, Touch USB cable 3 m
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness400 nits
Color Depth10-bit (1.07B colors)
Contrast Ratio1,200:1
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points20-point multi-touch
Touch Response Time< 7 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 13
ProcessorARM Cortex-A73 × 4
RAM8 GB
Storage64 GB
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort In × 1
Microphone8 array mic (distance: 5 m typ., 8 m max.)
Speaker Output2 × 15 W + 15 W subwoofer
Speaker TypeBuilt-in
Connectivity
EthernetRJ45 (Gigabit) × 1
HDMI InputsHDMI In (HDMI 2.0) × 3
HDMI OutputsHDMI Out × 1
OPS SlotModule slot × 1
Serial PortRS-232 × 1
Touch USB PortsTouch USB × 2
USB PortsUSB 3.0 × 4, USB 2.0 × 1
USB-C PortsUSB-C × 1 (60 W PD)
VGA InputVGA × 1
Wi-FiOptional
Power
Power Consumption187.9 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1966.4 x 1204.4 x 118.4 mm
Operating Humidity20% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2140 x 1340 x 280 mm
Surface ProtectionAnti-glare smooth glass
VESA Mount800 x 600 mm
Weight71 kg
Compliance
Warranty3 years
Downloads
Manufacturer documents for the Viewsonic 86" Android EDLA-Certified ViewBoard Interactive Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the ViewSonic interactive flat panel used for?
The Viewsonic 86" Android EDLA-Certified ViewBoard Interactive Display (SKU: IFP8652-2ED) is an advanced solution for modern classrooms, boardrooms, and collaborative spaces. Designed with a massive 86-inch 4K UHD touchscreen , this interactive display delivers stunning visual clarity and seamless.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 13, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
Request a quote via WhatsApp wa.me/97145465041 or email info@procure.ae.
