VSYS VS02US-464 Ultra-Slim Full-Motion TV Wall Mount for 43"–90" Displays, 50 kgVSYS
SKU VS02US-464

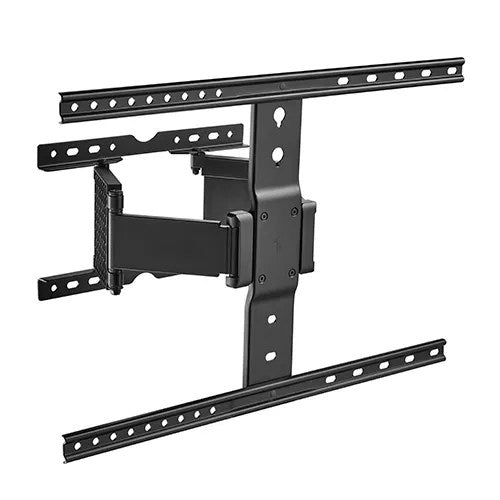

VSYS VS02US-464 Ultra-Slim Full-Motion TV Wall Mount for 43"–90" Displays, 50 kg

The VSYS VS02US-464 is an ultra-slim full-motion wall mount for 43"–90" flat or curved displays weighing up to 50 kg, available in the UAE from Procure.ae.

Articulating mounts normally force a trade-off: the arm that lets you angle a screen is also the reason the screen sits several centimetres proud of the wall. The VS02US-464 narrows that gap to almost nothing. Folded, the display rests 19.5 mm from the wall face, close enough to read as a fixed installation in a boardroom, lobby or retail feature wall. The same arm still draws out to 250 mm when a technician needs the rear connection panel or a viewer needs a different angle.

Movement is handled by a twin-section steel arm. The head tilts from plus 3 to minus 15 degrees and is free-tilting, swivels 30 degrees to either side, and carries a separate plus or minus 3 degree levelling adjustment that corrects an out-of-true wall without moving the plate. The wall plate fixes to solid masonry or a dual-stud line at 406 mm or 450 mm centres, and the display interface spans VESA patterns from 100 x 200 mm to 600 x 400 mm.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Ultra-Slim Full-Motion TV Wall Mount
  • Folds to 19.5 mm from the wall, so a full-motion screen keeps the clean profile of a fixed mount when it is not in use.
  • Extends to 250 mm, giving clear hand access behind the panel for cabling, power and source changes without dismounting.
  • Free-tilting head with plus 3 to minus 15 degrees of travel, which kills reflections from high windows and downlights.
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Folds to 19.5 mm from the wall, so a full-motion screen keeps the clean profile of a fixed mount when it is not in use.
02
Extends to 250 mm, giving clear hand access behind the panel for cabling, power and source changes without dismounting.
03
Free-tilting head with plus 3 to minus 15 degrees of travel, which kills reflections from high windows and downlights.
04
Swivel of 30 degrees left and 30 degrees right lets one screen serve seating on two sides of a room.
05
Independent plus or minus 3 degree screen levelling corrects small wall and stud inaccuracies after the plate is fixed.
06
VESA 100 x 200 mm to 600 x 400 mm (maximum hole spacing 602 x 400 mm) covers the majority of 43" to 90" panels, including curved models.
07
Rated to 50 kg and strength tested to four times that load, which suits large-format commercial panels.
08
Steel and plastic construction to RoHS, with decorative covers that conceal cabling along the arm.
09
Wall plate designed for solid walls or dual studs at 406 mm or 450 mm spacing for a secure hold under heavier displays.
10
Hook-on bubble level supplied, so the plate can be set true by one installer.

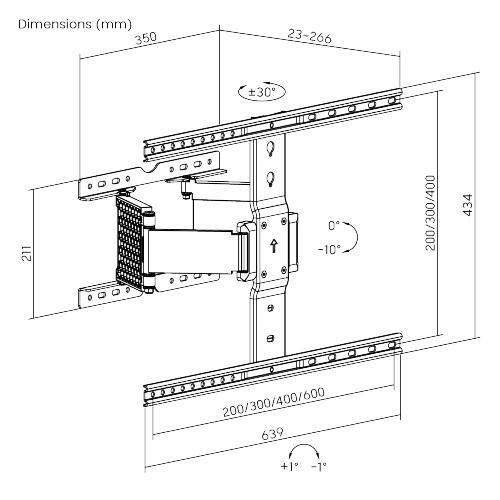

Specifications

15 specifications
General
Key FeaturesDecorative cable covers included
ModelVS02US-464
TypeUltra-Slim Full-Motion TV Wall Mount
What's in the BoxFull-motion arm, Wall plate, Mounting hardware, Decorative cable covers, Hook-on bubble level, Installation guide
Display
Supported Screen Sizes43-90" (flat and curved)
Physical
AdjustabilityTilt, swivel, extension, levelling
Extension19.5 mm folded to 250 mm extended
Load Capacity50 kg
MaterialSteel and plastic
MountingFull motion articulating
Swivel+/-30°
Tilt-15 to +3°, free-tilting
VESA Mount100 x 200 to 600 x 400 mm (max hole spread 602 x 400 mm)
Wall FixingSolid wall or dual studs at 406/450 mm spacing
Compliance
CertificationsRoHS, strength tested to four times rated load

Questions

Can’t find your answer? Ask on WhatsApp

How far does the screen sit from the wall?
19.5 mm when the arm is folded, which is close enough to pass for a fixed mount. When you need access or a different viewing angle, the arm extends to 250 mm from the wall.
Which displays will fit the VS02US-464?
Flat or curved panels from 43" to 90" weighing up to 50 kg, with a VESA pattern between 100 x 200 mm and 600 x 400 mm. Check the rear of the display or its datasheet for the exact hole spacing before ordering.
Does it need two studs or can it go on a solid wall?
Both are supported. The wall plate is dimensioned for solid masonry or for a dual-stud fixing at 406 mm or 450 mm centres, which is what gives it the margin to carry larger panels safely.
How does it handle cabling, and can I order in project quantities?
