TrendInteractive Flat PanelsSKU TD-55ID20U-A

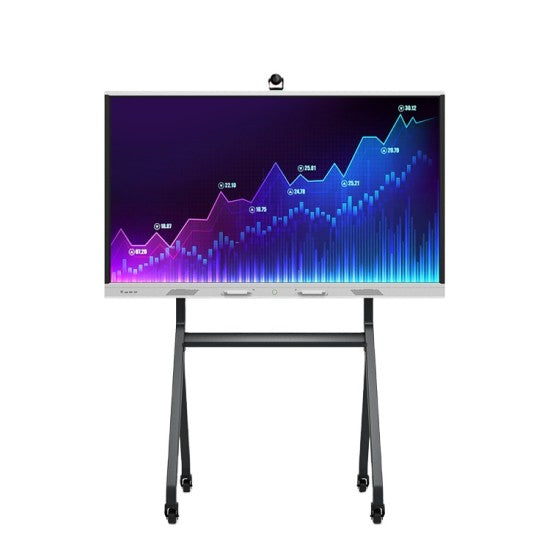

Trend TD-86ID20U-A 86-Inch 4K Interactive Display Panel
The Trend TD-86ID20U-A 86-Inch 4K Interactive Display Panel is a interactive flat panel available in the UAE from Procure.ae.
The Trend TD-86ID20U-A 86-Inch 4K Interactive Display Panel is the perfect solution for modern meeting rooms, classrooms, and collaborative workspaces. With its expansive 86-inch 4K UHD screen , this interactive panel delivers breathtaking clarity and vibrant colors for presentations, lessons, and video conferencing. The advanced touchscreen technology offers smooth, responsive multi-touch input, making it easy to annotate, draw, and interact directly on-screen. Integrated wireless connectivity ensures seamless device mirroring and content sharing, while the robust built-in speakers provide.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- 86-Inch 4K UHD Screen
- Responsive Multi-Touch Technology
- Integrated Wireless Connectivity
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-Inch 4K UHD Screen
Enjoy ultra-clear visuals with stunning resolution and rich color depth for all your content.
02
Responsive Multi-Touch Technology
Supports multiple users for seamless collaboration and interaction.
03
Integrated Wireless Connectivity
Effortlessly mirror devices and share content without cables.
04
Multiple Input Options
Flexible HDMI, USB, and LAN ports for easy connection to various devices.
05
Anti-Glare Durable Glass
Protects the display and ensures visibility in bright environments.
06
Built-In High-Quality Speakers
Delivers clear and powerful audio for presentations and media playback.
07
Energy-Efficient Operation
Designed to minimize power consumption without sacrificing performance.
08
User-Friendly Interface
Intuitive controls and easy navigation for all users.
Specifications
39 specificationsGeneral
Key Features20-point infrared touch, 4 mm tempered glass, Android 6.0, 24/7 operation, Remote control, Wall or floor installation
Display
BacklightDirect LED
Brightness450 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio2,000:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points20-point multi-touch
Touch Response Time8 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsArm Mali-T720 MP2
Memory TypeDDR3
Operating SystemAndroid 6
ProcessorARM 4x Cortex-A53, 1.5 GHz
RAM1.5 GB
Storage32 GB
Audio
Audio OutHeadphone out × 1
Speaker Output2 × 5 W (6 ohm)
Speaker TypeBuilt-in
Connectivity
EthernetRJ45 × 2
HDMI InputsHDMI In × 3
SD Card SlotSD card slot × 1
Serial PortSerial × 1 (DB9)
Touch USB PortsTouch USB × 1
USB PortsUSB 3.0 × 2, USB 2.0 × 1
VGA InputVGA × 1 (Rear)
Wi-FiBuilt-in
Power
Power Consumption385 W
Physical
Dimensions1960.6 x 1161.8 x 96.8 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0°C to 50°C
Surface Protection4 mm tempered glass
Weight67 kg
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Trend TD-86ID20U-A 86-Inch 4K Interactive Display Panel — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Trend interactive flat panel used for?
The Trend TD-86ID20U-A 86-Inch 4K Interactive Display Panel is the perfect solution for modern meeting rooms, classrooms, and collaborative workspaces. With its expansive 86-inch 4K UHD screen , this interactive panel delivers breathtaking clarity and vibrant colors for presentations, lessons, and.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 6, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
