TrendInteractive Flat PanelsSKU TD-65ID20U-Di5

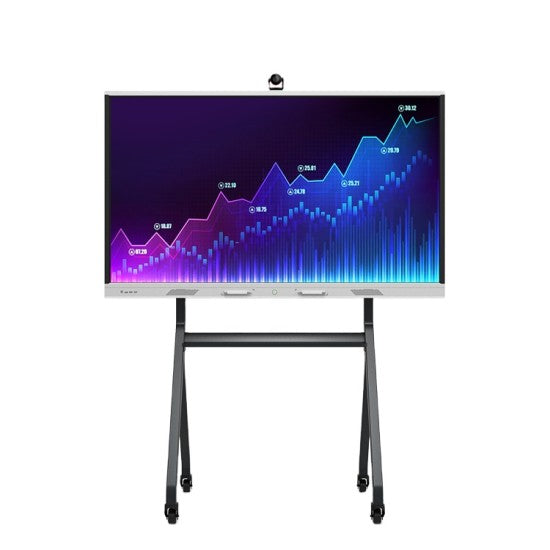

Trend TD-75ID20U-Di5 75-Inch 4K Interactive Flat Panel Display
The Trend TD-75ID20U-Di5 75-Inch 4K Interactive Flat Panel Display is a interactive flat panel available in the UAE from Procure.ae.
The Trend TD-75ID20U-Di5 75-Inch 4K Interactive Flat Panel Display is the perfect solution for modern classrooms, conference rooms, and collaborative workspaces. This advanced interactive display boasts a stunning 75-inch 4K UHD screen, delivering crisp visuals and vibrant colors that enhance presentations, lessons, and meetings. With multi-touch capability , users can write, draw, and interact seamlessly, making teamwork and brainstorming sessions more engaging. The flat panel display features an intuitive interface, allowing for easy access to apps, documents, and web content. Designed for.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- 75-Inch 4K UHD Display
- 20-Point Multi-Touch
- Integrated Android OS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-Inch 4K UHD Display
Delivers ultra-high-definition visuals for breathtaking image clarity and color accuracy.
02
20-Point Multi-Touch
Supports simultaneous touchpoints for collaborative work and interactive lessons.
03
Integrated Android OS
Offers an intuitive user experience with access to a variety of apps and tools.
04
Wireless Screen Sharing
Enables easy content sharing from laptops, tablets, and smartphones without cables.
05
Anti-Glare Tempered Glass
Ensures clear viewing and protects the panel from scratches and fingerprints.
06
Built-in Speakers
Provides rich, room-filling audio for presentations, videos, and multimedia content.
07
Multiple Connectivity Options
Includes HDMI, USB, VGA, and LAN ports for seamless integration with various devices.
08
Smart Annotation Tools
Enables real-time drawing, highlighting, and note-taking directly on the screen.
Specifications
40 specificationsGeneral
Key Features20-point infrared touch, Dual OS Android and Windows, Intel Core i5, 4 mm tempered glass, 24/7 operation, Remote control, Wall or floor installation
Display
BacklightDirect LED
Brightness450 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio2,000:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points20-point multi-touch
Touch Response Time8 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsArm Mali-T720 MP2 (Android), Intel HD 3000 (Windows)
Memory TypeDDR3
Operating SystemAndroid 6.0 / Windows 7, 8, 10
ProcessorARM Cortex-A53 1.5 GHz (Android), Intel Core i5 (Windows)
RAM1.5 GB (Android) / 4 GB (Windows)
Storage32 GB (Android) / 120 GB SSD (Windows)
Audio
Audio InAV in × 1
Audio OutAV out × 1
Speaker Output2 × 5 W (6 ohm)
Speaker TypeBuilt-in
Connectivity
EthernetRJ45 × 2
HDMI InputsHDMI In × 3
SD Card SlotSD card slot × 1
Serial PortSerial × 1 (DB9)
Touch USB PortsTouch USB × 1
USB PortsUSB 3.0 × 2, USB 2.0 × 1
VGA InputVGA × 1 (Rear)
Wi-FiBuilt-in
Power
Power Consumption385 W
Physical
Dimensions1960.6 x 1161.8 x 96.8 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0°C to 50°C
Surface Protection4 mm tempered glass
Weight67 kg
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Trend TD-75ID20U-Di5 75-Inch 4K Interactive Flat Panel Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Trend interactive flat panel used for?
The Trend TD-75ID20U-Di5 75-Inch 4K Interactive Flat Panel Display is the perfect solution for modern classrooms, conference rooms, and collaborative workspaces. This advanced interactive display boasts a stunning 75-inch 4K UHD screen, delivering crisp visuals and vibrant colors that enhance.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 6, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
