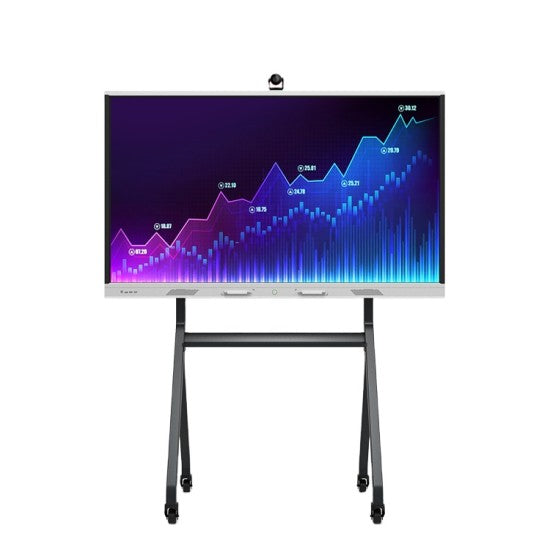

Trend TD-55ID20U-Di5 55-Inch 4K Interactive Flat Panel Display
The Trend TD-55ID20U-Di5 55-Inch 4K Interactive Flat Panel Display is a interactive flat panel available in the UAE from Procure.ae.
The Trend TD-55ID20U-Di5 55-Inch 4K Interactive Flat Panel Display is designed to revolutionize your workspace, classroom, or conference room with its advanced touchscreen technology and ultra-high-definition 4K resolution . This interactive flat panel offers seamless collaboration with its multi-touch capabilities, making it ideal for presentations, team meetings, and educational environments. The large 55-inch display ensures crystal-clear visuals and vivid colors, while the integrated smart display functions support wireless connectivity and device mirroring. With robust Android OS.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- Ultra HD 4K Resolution
- 55-Inch Display
- Multi-Touch Capability
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra HD 4K Resolution
Delivers stunning clarity and vibrant visuals for immersive presentations and teaching.
02
55-Inch Display
Optimal size for classrooms, meeting rooms, and collaborative spaces.
03
Multi-Touch Capability
Supports up to 20 simultaneous touch points for enhanced interactivity.
04
Android OS Compatibility
Runs a wide range of educational and business applications effortlessly.
05
Wireless Screen Sharing
Easily mirror devices for seamless collaboration and presentations.
06
Integrated Speakers
High-quality built-in audio for video conferences and multimedia playback.
07
Robust Connectivity
Multiple HDMI, USB, and Ethernet ports for versatile device integration.
08
Anti-Glare Glass
Reduces reflections for clear viewing in any lighting condition.
Specifications
39 specificationsGeneral
Key Features20-point infrared touch, Dual OS Android and Windows, Intel Core i5, 4 mm tempered glass, 24/7 operation, Remote control, Wall or floor installation
Display
BacklightDirect LED
Brightness450 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio2,000:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Touch Points20-point multi-touch
Touch Response Time8 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsArm Mali-T720 MP2 (Android), Intel HD 3000 (Windows)
Memory TypeDDR3
Operating SystemAndroid 6.0 / Windows 7, 8, 10
ProcessorARM Cortex-A53 1.5 GHz (Android), Intel Core i5 (Windows)
RAM1.5 GB (Android) / 4 GB (Windows)
Storage32 GB (Android) / 120 GB SSD (Windows)
Audio
Audio InAV in × 1
Audio OutAV out × 1
Speaker Output2 × 5 W (6 ohm)
Speaker TypeBuilt-in
Connectivity
EthernetRJ45 × 2
HDMI InputsHDMI In × 3
SD Card SlotSD card slot × 1
Serial PortSerial × 1 (DB9)
Touch USB PortsTouch USB × 1
USB PortsUSB 3.0 × 2, USB 2.0 × 1
VGA InputVGA × 1
Power
Power Consumption385 W
Physical
Dimensions1960.6 x 1161.8 x 96.8 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0°C to 50°C
Surface Protection4 mm tempered glass
Weight67 kg
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Trend TD-55ID20U-Di5 55-Inch 4K Interactive Flat Panel Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Trend interactive flat panel used for?
The Trend TD-55ID20U-Di5 55-Inch 4K Interactive Flat Panel Display is designed to revolutionize your workspace, classroom, or conference room with its advanced touchscreen technology and ultra-high-definition 4K resolution . This interactive flat panel offers seamless collaboration with its.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 6, so you can open apps, whiteboard, and browse without a separate computer.
