TrendInteractive Flat PanelsSKU TD-100ID20U-Di7

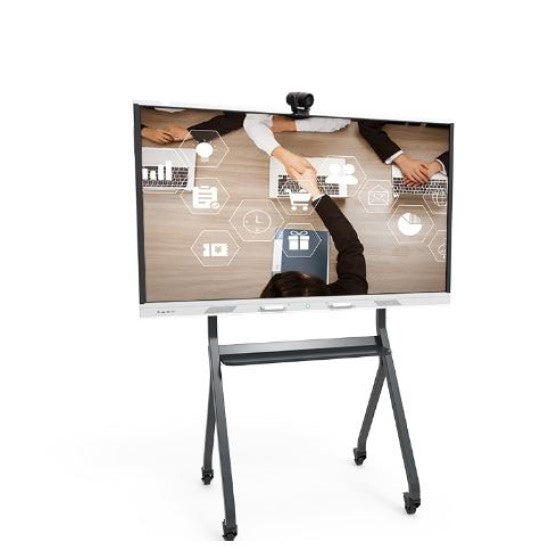

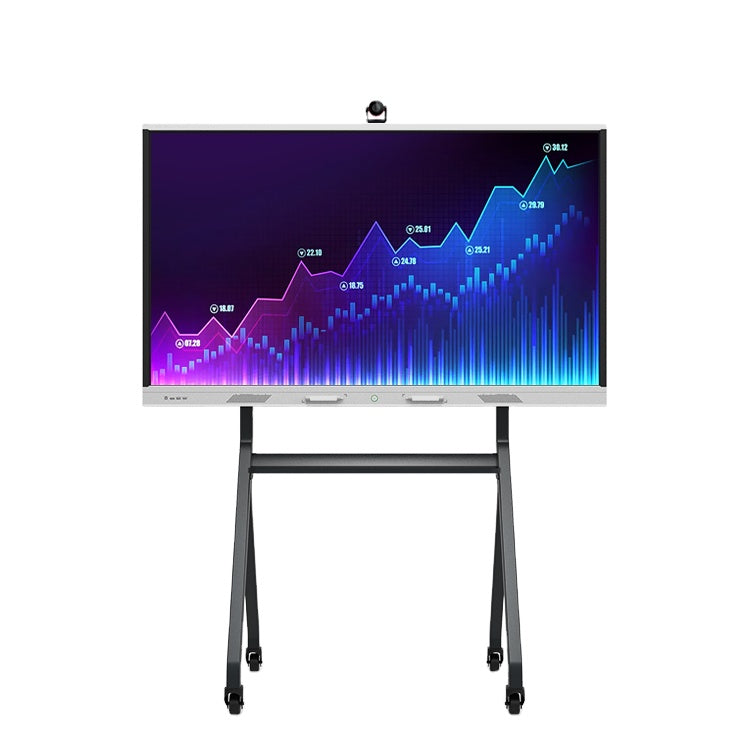

Trend TD-100ID20U-Di7 100-Inch 4K Interactive Smart Display
The Trend TD-100ID20U-Di7 100-Inch 4K Interactive Smart Display is a interactive flat panel available in the UAE from Procure.ae.
The Trend TD-100ID20U-Di7 100-Inch 4K Interactive Smart Display is the ultimate solution for modern classrooms, boardrooms, and collaborative workspaces. Designed to deliver a stunning 4K ultra HD resolution on an expansive 100-inch touchscreen , this interactive display transforms presentations and group activities with ease. Featuring advanced multi-touch capability , seamless wireless connectivity , and intuitive smart display technology , the TD-100ID20U-Di7 ensures everyone can participate effortlessly. Its robust anti-glare panel and energy-efficient LED backlight provide a clear,.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
100 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- 100-Inch 4K UHD Display
- Multi-Touch Technology
- Smart Android OS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
100-Inch 4K UHD Display
Immersive ultra high-definition visuals for large audiences and detailed content.
02
Multi-Touch Technology
Supports up to 20 simultaneous touch points for collaborative work.
03
Smart Android OS
Built-in Android platform for seamless app integration and easy navigation.
04
Wireless Screen Mirroring
Effortlessly connect laptops, tablets, or smartphones for instant presentations.
05
Anti-Glare Surface
Ensures clear visibility from any angle, even in brightly lit spaces.
06
Integrated Speakers
High-quality audio built in for impactful multimedia presentations.
07
Durable Construction
Engineered for frequent use in classrooms, offices, and public spaces.
08
Energy-Efficient LED Backlighting
Reduces power consumption without compromising brightness.
Specifications
39 specificationsGeneral
Key Features20-point infrared touch, Dual OS Android and Windows, Intel Core i7, 4 mm tempered glass, 24/7 operation, Remote control, Wall or floor installation
Display
BacklightWLED
Brightness450 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio2,000:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size100 inch
Touch Points20-point multi-touch
Touch Response Time8 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsArm Mali-T720 MP2 (Android), Intel HD 3000 (Windows)
Memory TypeDDR3
Operating SystemAndroid 6.0 / Windows 7, 8, 10
ProcessorARM Cortex-A53 1.5 GHz (Android), Intel Core i7 (Windows)
RAM1.5 GB (Android) / 4 GB (Windows)
Storage32 GB (Android) / 120 GB SSD (Windows)
Audio
Audio InAV in × 1
Audio OutAV out × 1
Speaker Output2 × 5 W (6 ohm)
Speaker TypeBuilt-in
Connectivity
EthernetRJ45 × 2
HDMI InputsHDMI In × 3
SD Card SlotSD card slot × 1
Serial PortSerial × 1 (DB9)
Touch USB PortsTouch USB × 1
USB PortsUSB 3.0 × 2, USB 2.0 × 1
VGA InputVGA × 1
Wi-FiBuilt-in
Power
Power Consumption385 W
Physical
Dimensions1960.6 x 1161.8 x 96.8 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0°C to 50°C
Weight67 kg
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Trend TD-100ID20U-Di7 100-Inch 4K Interactive Smart Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Trend interactive flat panel used for?
The Trend TD-100ID20U-Di7 100-Inch 4K Interactive Smart Display is the ultimate solution for modern classrooms, boardrooms, and collaborative workspaces. Designed to deliver a stunning 4K ultra HD resolution on an expansive 100-inch touchscreen , this interactive display transforms presentations.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 6, so you can open apps, whiteboard, and browse without a separate computer.
