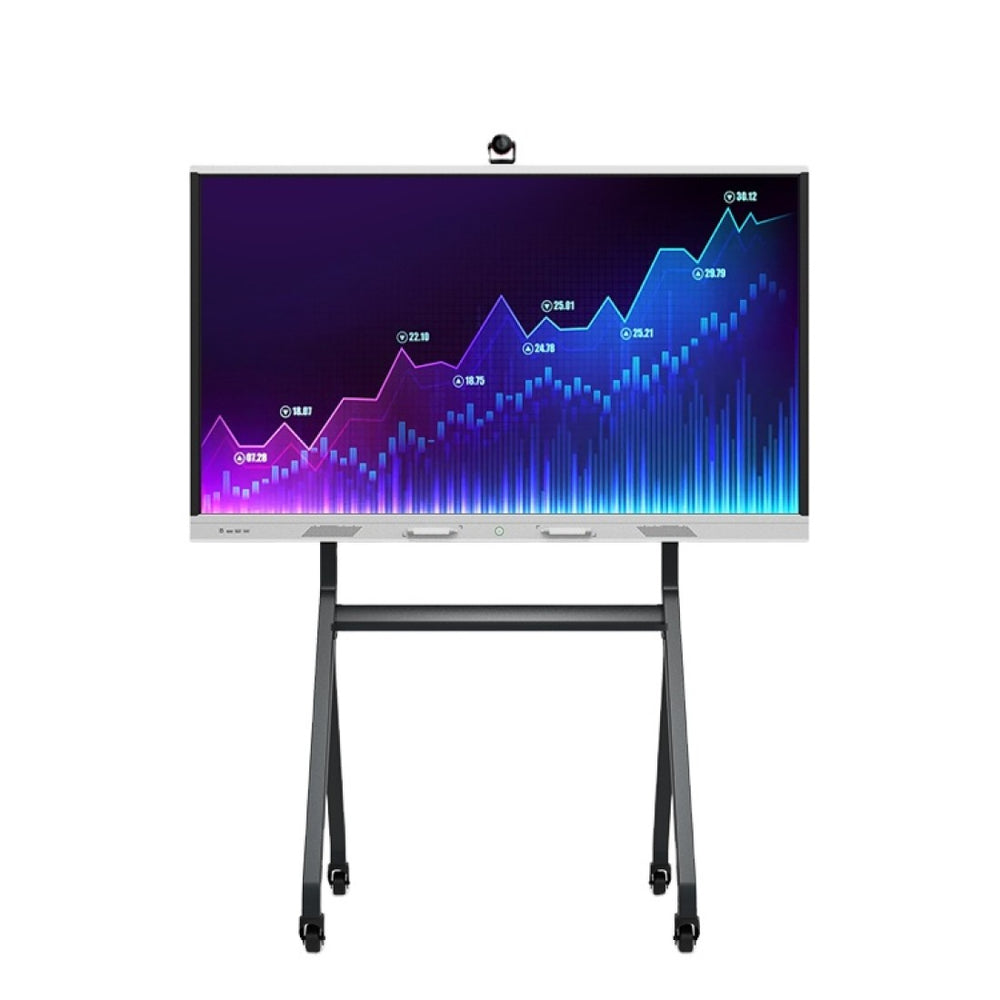

Trend TD-100ID20U-Di3 100-Inch 4K Interactive Touchscreen Display
The Trend TD-100ID20U-Di3 100-Inch 4K Interactive Touchscreen Display is a interactive flat panel available in the UAE from Procure.ae.
The Trend TD-100ID20U-Di3 100-Inch 4K Interactive Touchscreen Display revolutionizes your workspace with its expansive 100-inch touchscreen and crystal-clear 4K UHD resolution . Designed for seamless collaboration in classrooms, boardrooms, and conference halls, this interactive display supports up to 20 simultaneous touch points, ensuring multiple users can engage at once. Its ultra-responsive touchscreen technology delivers smooth writing, annotation, and gesture controls, making presentations and lessons more interactive than ever. The anti-glare glass and robust construction provide.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
100 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- Ultra-Large 100-Inch Screen
- 4K UHD Resolution
- 20-Point Multi-Touch Support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra-Large 100-Inch Screen
Offers a commanding display size ideal for large rooms and group sessions.
02
4K UHD Resolution
Delivers stunning clarity and vibrant visuals for presentations, videos, and graphics.
03
20-Point Multi-Touch Support
Enables multiple users to interact simultaneously, enhancing collaboration.
04
Responsive Touchscreen Technology
Ensures smooth, lag-free writing and gesture recognition.
05
Anti-Glare Tempered Glass
Reduces reflections and protects the screen for long-term durability.
06
Integrated Whiteboarding
Built-in software for easy note-taking, brainstorming, and annotation.
07
Wireless Screen Sharing
Supports connection from laptops, tablets, and smartphones without cables.
08
Powerful Integrated Speakers
Delivers clear, room-filling audio for multimedia and video calls.
Specifications
39 specificationsGeneral
Key Features20-point infrared touch, Dual OS Android and Windows, Intel Core i3, 4 mm tempered glass, 24/7 operation, Remote control, Wall or floor installation
Display
BacklightWLED
Brightness450 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio2,000:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size100 inch
Touch Points20-point multi-touch
Touch Response Time8 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsArm Mali-T720 MP2 (Android), Intel HD 3000 (Windows)
Memory TypeDDR3
Operating SystemAndroid 6.0 / Windows 7, 8, 10
ProcessorARM Cortex-A53 1.5 GHz (Android), Intel Core i3 (Windows)
RAM1.5 GB (Android) / 4 GB (Windows)
Storage32 GB (Android) / 120 GB SSD (Windows)
Audio
Audio InAV in × 1
Audio OutAV out × 1
Speaker Output2 × 5 W (6 ohm)
Speaker TypeBuilt-in
Connectivity
EthernetRJ45 × 2
HDMI InputsHDMI In × 3
SD Card SlotSD card slot × 1
Serial PortSerial × 1 (DB9)
Touch USB PortsTouch USB × 1
USB PortsUSB 3.0 × 2, USB 2.0 × 1
VGA InputVGA × 1
Wi-FiBuilt-in
Power
Power Consumption385 W
Physical
Dimensions1960.6 x 1161.8 x 96.8 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0°C to 50°C
Weight67 kg
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Trend TD-100ID20U-Di3 100-Inch 4K Interactive Touchscreen Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Trend interactive flat panel used for?
The Trend TD-100ID20U-Di3 100-Inch 4K Interactive Touchscreen Display revolutionizes your workspace with its expansive 100-inch touchscreen and crystal-clear 4K UHD resolution . Designed for seamless collaboration in classrooms, boardrooms, and conference halls, this interactive display supports up.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 6, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
