TrendInteractive Flat PanelsSKU TD-100ID20U-A

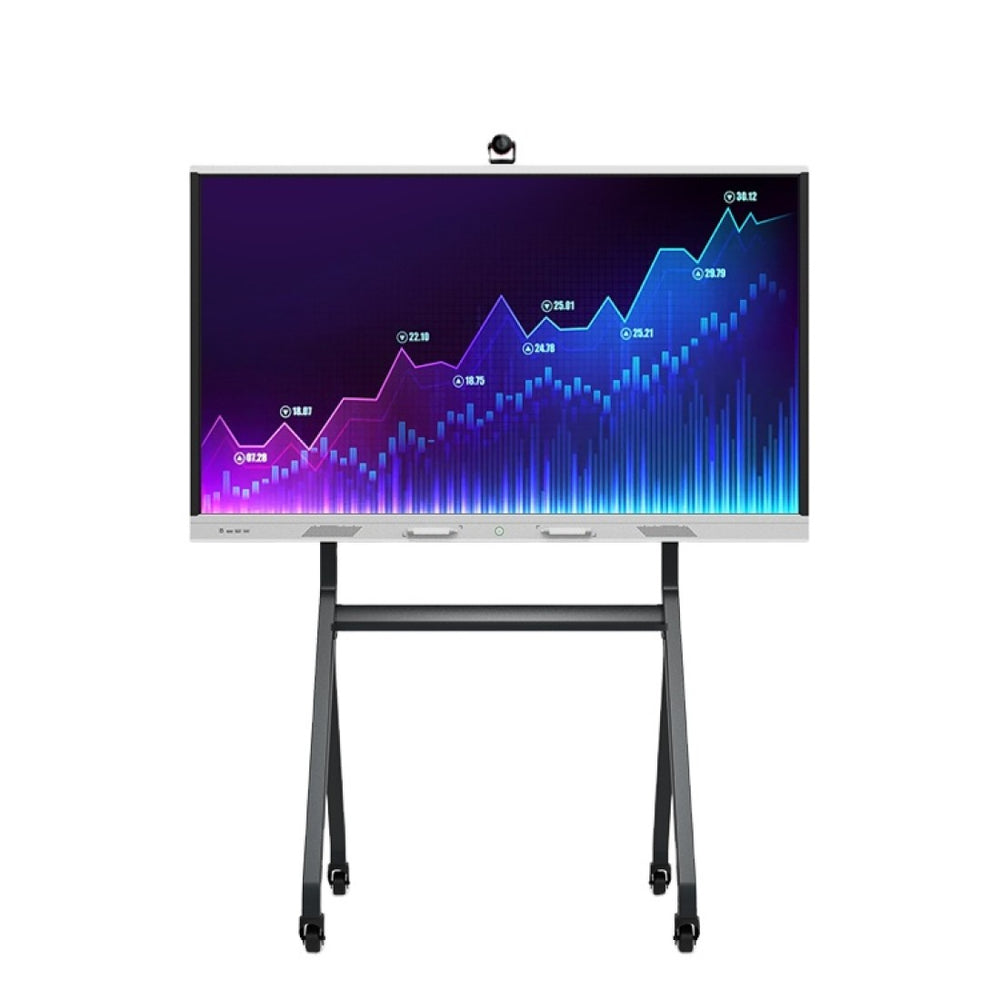

Trend TD-100ID20U-A 100-Inch 4K Interactive Display Panel
The Trend TD-100ID20U-A 100-Inch 4K Interactive Display Panel is a interactive flat panel available in the UAE from Procure.ae.
The Trend TD-100ID20U-A 100-Inch 4K Interactive Display Panel is the ultimate solution for modern classrooms, conference rooms, and collaborative workspaces. This advanced interactive display boasts a stunning 100-inch screen, delivering vibrant 4K Ultra HD resolution for crystal-clear visuals and immersive presentations. Built with cutting-edge touchscreen technology , it supports up to 20 simultaneous touch points, making group collaboration seamless and engaging. Its robust connectivity options, including HDMI, USB, and wireless casting, ensure compatibility with a wide variety of devices..
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
100 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- 100-Inch 4K Ultra HD Screen
- 20-Point Multi-Touch
- Anti-Glare Surface
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
100-Inch 4K Ultra HD Screen
Massive display with 3840 x 2160 resolution for lifelike detail and clarity.
02
20-Point Multi-Touch
Supports up to 20 simultaneous touch points for collaborative interaction.
03
Anti-Glare Surface
Reduces reflections for comfortable viewing in any lighting condition.
04
Scratch-Resistant Glass
Durable design withstands frequent use in busy environments.
05
Integrated Interactive Software
Includes annotation and whiteboard tools for enhanced presentations.
06
Multiple Connectivity Options
HDMI, USB, and wireless casting for flexible device integration.
07
Ultra-Slim Bezel
Modern, sleek frame maximizes viewing area and aesthetics.
08
Powerful Built-In Speakers
Delivers clear audio for presentations and media playback.
Specifications
39 specificationsGeneral
Key Features20-point infrared touch, 4 mm tempered glass, Android 6.0, 24/7 operation, Remote control, Wall or floor installation
Display
BacklightWLED
Brightness450 nits
Color Depth8-bit (16.7 million colours)
Contrast Ratio2,000:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size100 inch
Touch Points20-point multi-touch
Touch Response Time8 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsArm Mali-T720 MP2 (Android)
Memory TypeDDR3
Operating SystemAndroid 6
ProcessorARM 4x Cortex-A53, 1.5 GHz
RAM1.5 GB
Storage32 GB
Audio
Audio InAV in × 1
Audio OutAV out × 1
Speaker Output2 × 5 W (6 ohm)
Speaker TypeBuilt-in
Connectivity
EthernetRJ45 × 2
HDMI InputsHDMI In × 3
SD Card SlotSD card slot × 1
Serial PortSerial × 1 (DB9)
Touch USB PortsTouch USB × 1
USB PortsUSB 3.0 × 2, USB 2.0 × 1
VGA InputVGA × 1
Wi-FiBuilt-in
Power
Power Consumption385 W
Physical
Dimensions1960.6 x 1161.8 x 96.8 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0°C to 50°C
Weight67 kg
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Trend TD-100ID20U-A 100-Inch 4K Interactive Display Panel — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Trend interactive flat panel used for?
The Trend TD-100ID20U-A 100-Inch 4K Interactive Display Panel is the ultimate solution for modern classrooms, conference rooms, and collaborative workspaces. This advanced interactive display boasts a stunning 100-inch screen, delivering vibrant 4K Ultra HD resolution for crystal-clear visuals and.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 6, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
