TrendMeeting Room SolutionsSKU TC-24FAY-i56G

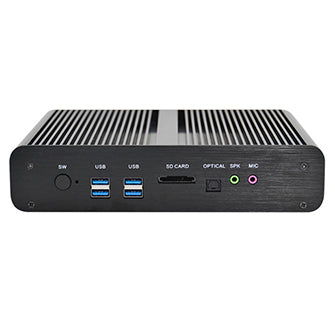

Trend Fanless Digital Signage Media Player – TC-24FAY-i56G
The Trend TC-24FAY-i56G is a fanless, heavy-alloy digital signage media player for 24/7 industrial use. It runs an Intel Core i5 6th Generation processor with Ultra HD graphics, outputs 3840 x 2160 (4K UHD) video, and supports VESA mounting. Procure.ae supplies the TC-24FAY-i56G in the UAE.
The TC-24FAY-i56G is built around an Intel Core i5 6th Generation processor and Ultra HD graphics, with HDMI and VGA outputs rated for 3840 x 2160 (4K UHD) resolution. Its passive cooling has no fan, so the unit runs silently. The black aluminium alloy chassis measures 177 x 127 x 55 mm and weighs 0.55 kg net. Storage supports mSATA and SATA drives, memory options run from 2 GB to 32 GB, and integrated LAN runs at 10/100/1000 Mbps. The unit draws up to 60 W from a DC 12 V, 5 A supply.
The manufacturer rates the player for 24/7 operation and lists call boot and network start, which suit remotely managed signage networks. It supports VESA mounting for wall or display-rear installation. Procure.ae can advise on pairing it with a display for a complete signage installation. The fanless design and alloy shell suit continuous use in public-facing locations.
Resolution
3840 x 2160 (4K UHD)
Type
Signage Media Player
Weight
0.55 kg (net)
- Fanless Heavy Alloy Casing
- 4K UHD Output
- Intel Core i5 6th Gen
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Fanless Heavy Alloy Casing
passive cooling and a black aluminium alloy shell keep the player silent and sturdy.
02
4K UHD Output
3840 x 2160 resolution with Ultra HD graphics over HDMI.
03
Intel Core i5 6th Gen
processor for smooth content playback.
04
24/7 Operation
rated for industrial, continuous use, with call boot and network start.
05
Flexible Storage
mSATA (64 GB to 512 GB) and SATA (500 GB to 2 TB) options.
06
Wired Networking
10/100/1000 Mbps LAN with two RJ45 ports.
07
VESA Mounting
VESA support for wall or display-rear mounting.
Specifications
21 specificationsGeneral
Application24/7 industrial use
Key FeaturesFanless design, Intel Core i5 6th Gen, 4K UHD output, 24/7 operation, VESA support, call boot and network start
ModelTC-24FAY-i56G
TypeSignage Media Player
Display
Resolution3840 x 2160 (4K UHD)
Performance
GraphicsUltra HD Graphics; HDMI and VGA outputs
Operating SystemWindows 10 Pro trial; licensed Windows 7/10/10 Pro or Linux optional
ProcessorIntel Core i5 6th Generation
RAM2 GB to 32 GB (optional)
StoragemSATA 64 GB to 512 GB + SATA 500 GB to 2 TB (optional)
Audio
AudioIntegrated audio
Connectivity
BluetoothOptional
Ethernet10/100/1000 Mbps
PortsHDMI x 1, VGA x 1, RJ45 x 2, USB 3.0 x 4, USB 2.0 x 4, SD x 1, audio
Power
Power Consumption60 W
Power SourceDC 12 V, 5 A
Physical
Dimensions177 x 127 x 55 mm
MaterialBlack aluminium alloy shell
VESA MountSupported
Weight0.55 kg (net)
Compliance
Warranty2 years
Downloads
Manufacturer documents for the Trend Fanless Digital Signage Media Player – TC-24FAY-i56G — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TC-24FAY-i56G support 4K output?
Yes. The manufacturer lists a 3840 x 2160 (4K UHD) resolution, supported by Ultra HD graphics and an HDMI output. The unit also has a VGA port, so it can be matched to a display that uses analogue input.
Is it designed for continuous 24/7 operation?
Yes. The manufacturer rates the unit for 24/7 use in industrial settings. It has passive cooling with no fan and supports call boot and network start, which allow it to power up remotely after a shutdown.
How much memory and storage can it take?
Memory can be configured from 2 GB up to 32 GB. Storage supports an mSATA drive from 64 GB to 512 GB, plus a SATA drive from 500 GB to 2 TB. Both storage options are optional, so you can choose the combination that suits your playback library.
Can it be wall-mounted or fitted behind a display?
Yes. The manufacturer lists VESA support. The specifications do not state the VESA hole pattern, so confirm the mount pattern with Procure.ae before ordering a bracket. Procure.ae can also advise on installation for signage projects across the UAE.
Which operating system does it run?
The unit ships with a Windows 10 Pro trial. The manufacturer lists licensed Windows 7, Windows 10, Windows 10 Pro or Linux as optional choices. Confirm the licence you need when requesting a quote, so the system matches your software.
Can I buy the TC-24FAY-i56G in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
