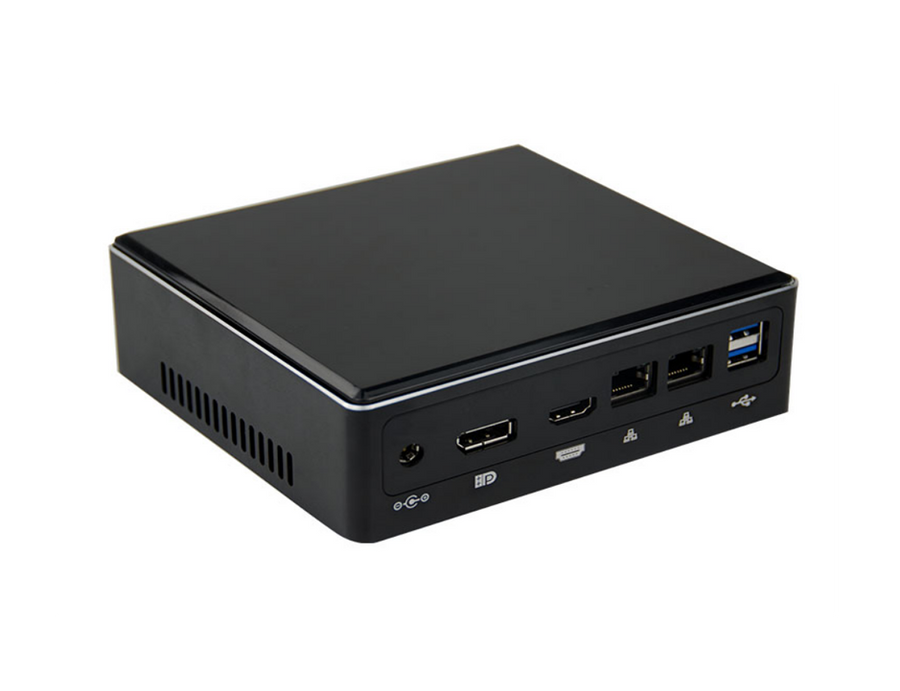

Trend TC-24A-i510G 24/7 digital signage media player with 10th Gen Intel Core i5Trend
Meeting Room SolutionsSKU TC-24A-i510G

Trend Digital Signage Media Player with 10th Gen Core i5 – TC-24A-i510G

The Trend TC-24A-i510G is a 24/7 digital signage media player built around a 10th Gen Intel Core i5 processor and dual UHD graphics for 4K UHD output. It suits continuous signage, information displays and kiosks that need reliable round-the-clock operation. It has an active cooling fan, mSATA and SATA storage and VESA mounting. Procure.ae supplies the TC-24A-i510G across the UAE.

Powered by a 10th Gen Intel Core i5 processor, the TC-24A-i510G drives dual UHD graphics through HDMI and DisplayPort outputs at 3840 x 2160 (4K UHD). Memory is configurable from 2 GB to 32 GB, and storage supports mSATA drives from 64 GB to 512 GB plus SATA drives from 500 GB to 2 TB. An active cooling fan keeps the unit stable during continuous operation. The integrated LAN runs at 10/100/1000 Mbps, with Wi-Fi and Bluetooth available as options. Call boot and network start are supported.

The media player fits digital signage walls, menu boards and information displays where content runs around the clock. Its VESA support allows it to be mounted behind a display. It ships with a Windows 10 Pro trial, and licensed Windows or Linux can be specified as options. Four USB 3.0 and four USB 2.0 ports, plus two RJ45 connectors and a USB-C port, handle peripherals and network connections. Compared with the TC-24A-i710G, this model uses a 10th Gen Core i5 instead of an i7; the other specifications are the same.

Resolution
3840 x 2160 (4K UHD)
Type
Digital Signage Media Player
  • Processor
  • 4K UHD output
  • Active cooling
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Processor
10th Gen Intel Core i5 for multitasking and smooth content playback.
02
4K UHD output
Dual UHD graphics at 3840 x 2160 over HDMI and DisplayPort.
03
Active cooling
Integrated cooling fan for stable operation during 24/7 use.
04
Memory and storage
2 GB to 32 GB RAM, with mSATA 64 GB to 512 GB and SATA 500 GB to 2 TB.
05
Network
Integrated 10/100/1000 Mbps LAN, with optional Wi-Fi and Bluetooth.
06
Boot options
Call boot and network start support.
07
VESA mounting
VESA support for fitting behind a display.
08
Connectivity
Two RJ45, four USB 3.0, four USB 2.0 and one USB-C port.

Specifications

20 specifications
General
ApplicationIndustrial, 24/7 use
Key Features24/7 operation, Active cooling fan, Dual UHD graphics, Call boot and network start, VESA mounting, Optional Wi-Fi and Bluetooth
ModelTC-24A-i510G
TypeDigital Signage Media Player
Display
Resolution3840 x 2160 (4K UHD)
Performance
GraphicsDual UHD graphics (HDMI and DisplayPort)
Operating SystemWindows 10 Pro Trial (licensed Windows or Linux optional)
Processor10th Gen Intel Core i5
RAM2 GB to 32 GB
StoragemSATA 64 GB to 512 GB, SATA 500 GB to 2 TB
Audio
AudioIntegrated audio
Connectivity
BluetoothOptional
Ethernet10/100/1000 Mbps auto-adaptive
PortsDC in × 1, HDMI × 1, DisplayPort × 1, RJ45 × 2, USB 3.0 × 4, USB 2.0 × 4, USB-C × 1
Wi-FiOptional
Power
Power Consumption60 W
Physical
Dimensions135 x 150 x 50 mm
MaterialAluminium alloy and plastic
VESA MountSupported
Compliance
Warranty2 years

Downloads

Manufacturer documents for the Trend Digital Signage Media Player with 10th Gen Core i5 – TC-24A-i510G — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What processor does the Trend TC-24A-i510G use?
It uses a 10th Gen Intel Core i5 processor with dual UHD graphics. The manufacturer rates the unit for industrial use and 24/7 operation, with an active cooling fan. Procure.ae can confirm which configuration suits your content and number of screens.
Does the TC-24A-i510G support 4K displays?
Yes. The manufacturer's specifications list a resolution of 3840 x 2160 (4K UHD), with HDMI and DisplayPort graphics outputs for connecting a 4K display. Procure.ae can confirm the display and cable setup needed for your screen.
Can the TC-24A-i510G be VESA mounted?
Yes. The manufacturer's specifications list VESA support, so the media player can be fitted to a VESA mount behind a display. Procure.ae can advise on the mounting kit for your display.
What operating system does it run?
It ships with a Windows 10 Pro trial. The manufacturer lists licensed Windows 7 or 10, Linux and DOS as optional operating systems. Procure.ae can advise on the software licence needed for your deployment.
Can I buy the TC-24A-i510G in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
