TrendInteractive Flat PanelsSKU TD-86ID20U-Di3

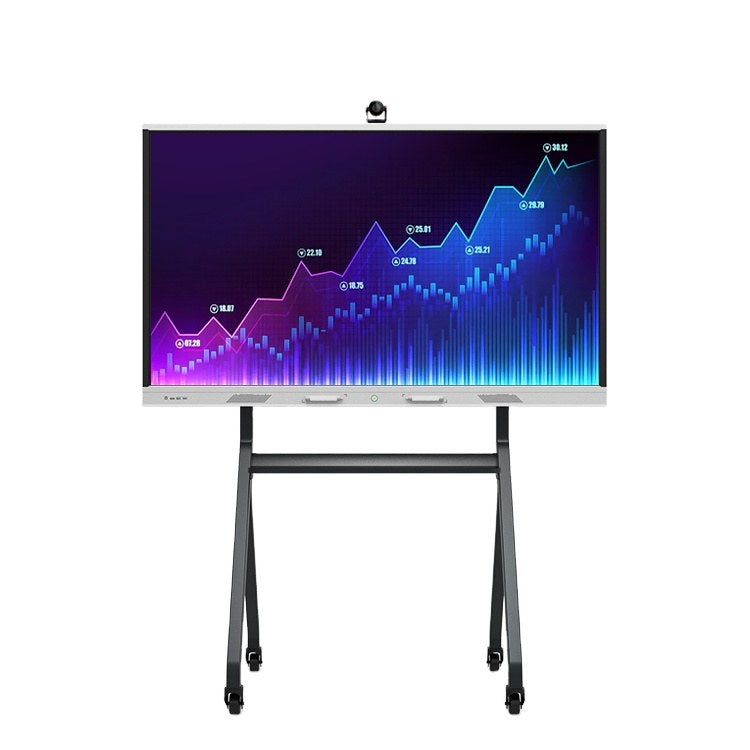

Trend 86-inch Dual-OS Interactive Flat Panel, Intel i3 – TD-86ID20U-Di3
The Trend TD-86ID20U-Di3 is an 86-inch interactive flat panel with 20 infrared touch points, 4K UHD resolution and dual operating systems, Android and Windows. Its Intel i3 Windows PC is built in, which suits classrooms, corporate meeting rooms and reception areas that need one display for teaching and presentations. Procure.ae supplies the TD-86ID20U-Di3 across the UAE.
The panel shows 3840 x 2160 (4K UHD) resolution at 60 Hz on a 16:9 IPS screen with 450 nits brightness and 2,000:1 contrast, viewed at 178° horizontally and vertically. The infrared touch frame supports 20 touch points, with 2 mm accuracy across more than 90% of the touch area and an 8 ms response time. Two 5 W speakers are built in. The manufacturer lists the 4 mm toughened glass front as level 7 earthquake resistant and a maximum service time of 24 hours a day.
The TD-86ID20U-Di3 suits classrooms, meeting rooms, reception areas, banks, government offices and exhibition venues. The panel runs Android 6.0 or Windows 7, 8 or 10. The Windows side uses an Intel i3 processor with 4 GB RAM and a 120 GB SSD in the base configuration, Ports include three HDMI inputs, VGA, AV in and out, USB touch and two RJ45 Ethernet sockets. It mounts on a wall, on a movable base or as a fixed floor stand. The Di5 and Di7 models use Intel i5 and i7 processors.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- Dual operating system
- 20-point infrared touch
- 4K UHD display
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Dual operating system
Switch between Android 6.0 and Windows 7, 8 or 10 on one panel.
02
20-point infrared touch
Infrared touch frame with 20 touch points and 2 mm accuracy over more than 90% of the touch area.
03
4K UHD display
3840 x 2160 resolution at 60 Hz on a 16:9 IPS panel with a 178° viewing angle.
04
Intel i3 Windows PC
Intel i3 processor with 4 GB RAM and a 120 GB SSD in the base configuration.
05
Brightness and contrast
450 nits brightness and 2,000:1 contrast on the IPS panel.
06
Built-in speakers
Two 5 W speakers, with the integrated sound card on the Windows side.
07
Ports and connectivity
HDMI In x 3, VGA, AV In and Out, USB touch, and two RJ45 Ethernet ports.
08
Tempered glass front
4 mm toughened glass, listed by the manufacturer as level 7 earthquake resistant.
Specifications
35 specificationsGeneral
Key FeaturesDual OS (Android and Windows), 20-point infrared touch, 4K UHD, 2,000:1 contrast, Intel i3 PC, built-in speakers, remote control, 24-hour operation
ModelTD-86ID20U-Di3
TypeInteractive Flat Panel
What's in the BoxRemote control, base/bracket, WiFi, power cord, user manual, warranty card
Display
Aspect Ratio16:9
BacklightWLED
Brightness450 nits
Contrast Ratio2,000:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy2 mm across more than 90% of the touch area
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemDual OS: Android 6.0 and Windows 7 / 8 / 10
ProcessorIntel i3 (Windows); quad-core Cortex-A53 1.5 GHz (Android)
RAM4 GB (Windows); 1.5 GB (Android)
Storage120 GB SSD (Windows); 32 GB (Android)
Storage Conditions-20 to 60 °C; 10% to 90% RH (no condensation)
Audio
Speaker Output2 x 5 W (built-in)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In x 3, VGA In x 1, AV In x 1, AV Out x 1, USB 2.0 x 1 (multimedia), USB touch (Type-B) x 1, RJ45 Ethernet x 2, Earphone x 1
Power
Standby Power385 W
Physical
ColorBlack
Dimensions1960.6 x 1161.8 x 96.8 mm
Duty Cycle24 hours a day
MountingOn wall, movable or fixed floor standing
Operating Humidity20% to 80% RH (no condensation)
Operating Temperature0 to 50 °C
Shipping Weight72 kg
Weight67 kg
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Trend 86-inch Dual-OS Interactive Flat Panel, Intel i3 – TD-86ID20U-Di3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TD-86ID20U-Di3 run Android and Windows?
Yes, it runs Android 6.0 or Windows 7, 8 or 10, and the manufacturer describes switching between the two operating systems with a modular design. The manufacturer's specifications do not state whether both systems run at the same time, so confirm that with Procure.ae before you buy if you need both active together.
Can the TD-86ID20U-Di3 be wall mounted?
Yes, the manufacturer lists on-wall, movable and fixed floor-standing installation, and a base or bracket is included with the accessories. The manufacturer's specifications do not state a VESA pattern for this model, so confirm the mounting hardware before fixing the panel to a wall. Procure.ae can arrange installation across the UAE.
What room size and use suits the TD-86ID20U-Di3?
It suits medium and large rooms where a group views one 86-inch screen, such as classrooms, corporate meeting rooms, reception areas, banks, government offices, shopping centres and exhibition venues. The 178° viewing angle keeps the image readable from wide seating positions. The manufacturer's specifications do not state a recommended viewing distance, so confirm the room layout with Procure.ae when you request a quote.
Does it have enough ports for a laptop and other video sources?
Yes. It has three HDMI In ports, VGA In, AV In and AV Out, a USB 2.0 multimedia port, a USB Type-B touch port, an earphone output and two RJ45 Ethernet sockets. The built-in Windows PC means a separate computer is not needed for Windows use.
Can the TD-86ID20U-Di3 connect to a network?
Yes, it has two RJ45 Ethernet sockets. The manufacturer lists Wi-Fi, 3G and 4G access as optional network cards for the Windows side, so confirm the configuration before ordering if you need wireless access.
