TrendFloor Standing KiosksSKU TP-275SSK
Trend 27-inch Self-Service Payment Kiosk – TP-275SSK
The Trend TP-275SSK is a 27-inch, Full HD self-service payment kiosk with 10-point capacitive touch and Windows 7, 8 or 10. It is built for ordering and payment in restaurants and canteens, and it mounts on a wall or a vertical base. Procure.ae supplies the TP-275SSK in the UAE.
The kiosk has a 1920 x 1080 (Full HD) display with 350 nits brightness, 1200:1 contrast and an 8 ms response time at 60 Hz. Its capacitive touch frame accepts 10 points and is accurate to ±2 mm across more than 90% of the touch area. Processor options are Intel Core i3, i5 or i7, with 4 GB or 8 GB DDR3 memory and 120 GB or 240 GB SSD storage, plus a 500 GB HDD option. The unit weighs 20.66 kg net, and its 4 mm tempered glass front has an anti-glare treatment and Mohs 7 surface hardness.
The screen supports horizontal and vertical display modes. Mounting options are wall-mounted or on a vertical base. Ports include HDMI, VGA, USB 2.0, RJ45, LVDS and headphone audio, and the manufacturer lists wired network access with optional WiFi, 3G and 4G. Power is 80 W at 100–240 V AC, with 1 W standby. Procure.ae can advise on the right configuration for your ordering setup before you request a quote.
Screen Size
27 inch
Resolution
1920 x 1080 (Full HD)
Brightness
350 nits
Touch Technology
PCAP
- Self-Service Ordering
- 10-Point Capacitive Touch
- Full HD Display
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Self-Service Ordering
dedicated ordering and payment kiosk for restaurants and canteens.
02
10-Point Capacitive Touch
multi-touch that supports zooming in and out of pictures.
03
Full HD Display
1920 x 1080 at 60 Hz with 350 nits brightness, in a 27-inch screen.
04
Horizontal or Vertical
display supports both orientations.
05

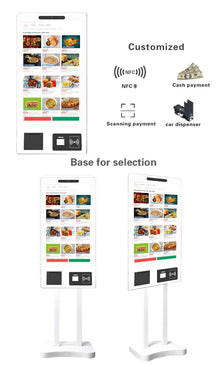

Wall or Base Mounting
wall-mounted or vertical base installation.
06
Tempered Glass Front
4 mm tempered glass with anti-glare treatment and Mohs 7 hardness.
07
Processor Options
Intel Core i3, i5 or i7 with 4 GB or 8 GB DDR3 memory.
08
Touch Durability
single-touch life rated at more than 50 million touches.
Specifications
37 specificationsGeneral
ApplicationSelf-service ordering and payment
Key FeaturesSelf-service payment, 10-point capacitive touch, Full HD, Windows 7/8/10, horizontal and vertical display, wall or base mount, anti-glare glass
ModelTP-275SSK
TypeSelf-Service Payment Kiosk
Display
Aspect Ratio16:9
Brightness350 nits
Color Gamut60% NTSC (CIE 1931)
Contrast Ratio1200:1
OrientationHorizontal and vertical
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size27 inch
Touch Accuracy±2 mm (over 90% of touch area)
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle89° in each direction (minimum, CR ≥ 10)
Performance
GraphicsIntel HD Graphics 3000
Operating SystemWindows 7 / 8 / 10
ProcessorIntel Core i3, i5 or i7 (options)
RAM4 GB or 8 GB DDR3 (optional)
Storage120 GB or 240 GB SSD (optional 500 GB HDD)
Storage Conditions-20 to 60 °C; 10% to 90% RH (non-condensing)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI x 1, VGA x 1, USB 2.0 x 1, RJ45 x 1, LVDS x 1, headphone audio
Wi-FiOptional (wired, WiFi, 3G and 4G network access)
Power
Power Consumption80 W
Standby Power1 W
Physical
ColorWhite
MaterialAluminium alloy and sheet metal chassis
MountingWall-mounted or vertical base
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 50 °C
Shipping Weight23.12 kg (gross)
Surface Protection4 mm tempered glass, anti-glare, Mohs 7 hardness
Weight20.66 kg (net)
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Trend 27-inch Self-Service Payment Kiosk – TP-275SSK — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TP-275SSK run Windows or Android?
It runs Windows 7, Windows 8 or Windows 10, with Intel Core i3, i5 or i7 processor options. The manufacturer's specifications list Windows, so confirm the operating system your ordering software needs before requesting a quote.
Can it be wall-mounted or used on a base?
Yes. The manufacturer lists wall-mounted installation or a vertical base, and the design includes maintenance doors for access. The specifications do not state a VESA pattern, so confirm the mounting option with Procure.ae before ordering.
Is the screen suitable for a bright restaurant or canteen?
The screen is rated at 350 nits brightness with 1200:1 contrast, and its 4 mm tempered glass has an anti-glare treatment. Those figures help readability in bright areas, but the manufacturer's specifications do not state a figure for direct sunlight.
What network connections does it support?
The manufacturer lists wired network access through an RJ45 port, with WiFi, 3G and 4G access available as options. Confirm the connection type you need when ordering, because the wireless options are not standard.
How much memory and storage can it have?
Memory is 4 GB or 8 GB DDR3, and storage is a 120 GB or 240 GB SSD, with an optional 500 GB HDD. Choose the configuration that suits your ordering software and the amount of data the kiosk will store.
Can I buy the TP-275SSK in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
