TrendInteractive Flat PanelsSKU TD-100ID20U-Di5

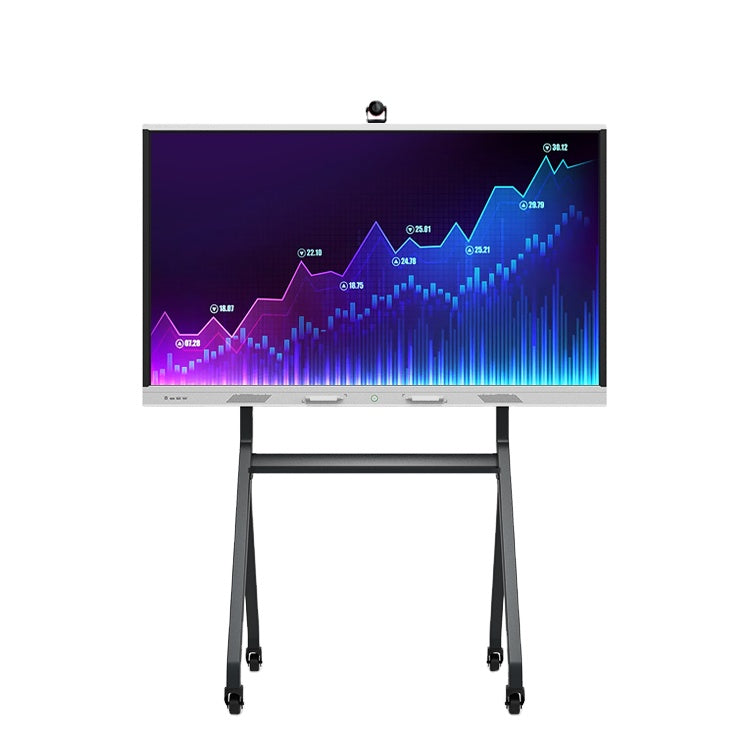

Trend 100-inch 4K Interactive Flat Panel – TD-100ID20U-Di5
The Trend TD-100ID20U-Di5 is a 100-inch 4K interactive flat panel with 20-point infrared touch and dual Windows and Android operating systems. It suits classrooms, government offices and meeting rooms, with 3840 x 2160 resolution and 450 nits of brightness. Procure.ae supplies the TD-100ID20U-Di5 in the UAE.
The panel shows 3840 x 2160 (UHD) resolution at 60 Hz on a 16:9 S-IPS display, with 450 nits brightness and 2,000:1 contrast. Its infrared touch frame supports 20 touch points, and more than 90% of the touch area is accurate to 2 mm. Each unit runs two operating systems: Android 6.0 on a quad-core Cortex-A53 processor, or Windows 7, 8 or 10 on an Intel Core i5 with 4 GB RAM and a 120 GB SSD. Built-in speakers are rated 2 x 5 W, and the 4 mm tempered glass front is designed for continuous use.
The manufacturer lists teaching and conference use, with installation on a wall, as a movable unit or on a fixed floor stand. The package includes a remote control, a base or bracket, and a WiFi module, and optional network cards add cable, WiFi, 3G or 4G access. Connections include three HDMI inputs, one VGA input, AV in and out, two RJ45 ports and a USB Type-B touch port. The specifications do not state a VESA pattern, so confirm the mounting option with Procure.ae before ordering.
Screen Size
100 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- Interactive 20-Point Touch
- 4K UHD Display
- Dual Operating System
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Interactive 20-Point Touch
infrared touch frame with 20 touch points and 2 mm accuracy over more than 90% of the touch area.
02
4K UHD Display
3840 x 2160 resolution on a 16:9 S-IPS panel with 178-degree viewing angles.
03
Dual Operating System
Android 6.0 and Windows 7, 8 or 10 in one unit.
04
Bright, High-Contrast Image
450 nits brightness and 2,000:1 contrast ratio.
05
Built-in Speakers
2 x 5 W speakers built into the panel.
06
Multi-Input Connectivity
three HDMI inputs, VGA, AV in and out, USB touch and two RJ45 ports.
07
Flexible Installation
wall-mounted, movable or fixed floor-standing options.
08
Rated for Long Days
manufacturer lists up to 24 hours of service per day.
Specifications
41 specificationsGeneral
ApplicationTeaching, meetings, government and corporate reception
Key Features100-inch 4K, 20-point infrared touch, dual Windows and Android OS, 2 x 5 W speakers, 24-hour service, wall or floor mount, 4 mm tempered glass
ModelTD-100ID20U-Di5
TypeInteractive Flat Panel
What's in the BoxRemote control, base/bracket, WiFi module, power cord, manual, warranty card
Display
Aspect Ratio16:9
BacklightWLED
Brightness450 nits
Contrast Ratio2,000:1
Panel TechnologyS-IPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size100 inch
Touch Accuracy2 mm (over 90% of touch area)
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Duty Cycle24 hours per day
GraphicsIntel HD Graphics 3000
Operating SystemDual OS: Windows 7 / 8 / 10 and Android 6.0
ProcessorIntel Core i5 (Windows); quad-core Cortex-A53 1.5 GHz (Android)
RAM4 GB (Windows); 1.5 GB (Android)
Storage120 GB SSD (Windows); 32 GB (Android)
Storage Conditions-20 to 60 °C; 10% to 90% RH (non-condensing)
Audio
Speaker Output2 x 5 W
Connectivity
Ethernet2 x RJ45
HDMI Inputs3
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI in x 3, VGA x 1, USB 2.0 x 1, USB touch (Type B) x 1, AV in x 1, AV out x 1, RJ45 x 2, audio out
VGA Input1 x DB15
Wi-FiOptional
Power
Power ConsumptionStandby 385 W
Physical
ColorBlack
Dimensions1960.6 x 1161.8 x 96.8 mm
Material4 mm tempered glass front; plastic and sheet metal shell
MountingOn wall, movable or fixed floor stand
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 50 °C
Weight67 kg (net)
Compliance
Warranty1 year
Downloads
Manufacturer documents for the Trend 100-inch 4K Interactive Flat Panel – TD-100ID20U-Di5 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the TD-100ID20U-Di5 support 4K video?
Yes. The panel's native resolution is 3840 x 2160 (UHD) at 60 Hz, with a 16:9 aspect ratio. It has three HDMI inputs for connecting 4K sources, plus VGA and AV inputs for older equipment.
Can more than one person use the touch function at the same time?
Yes. The infrared frame supports 20 touch points, so more than one person can write or touch at once. The manufacturer states that more than 90% of the touch area is accurate to 2 mm.
Which operating systems does it run?
The panel runs Android 6.0 on a quad-core Cortex-A53 processor, or Windows 7, 8 or 10 on an Intel Core i5 with 4 GB RAM. The manufacturer also describes single or dual system settings, which suit different software needs.
Can it be wall-mounted or placed on a floor stand?
Yes. The manufacturer lists on-wall, movable and fixed floor-standing installation. The VESA pattern is not stated in the specifications, so confirm the mounting option with Procure.ae before ordering. Procure.ae can also arrange installation across the UAE.
Does it include a remote control and WiFi?
Yes. The package includes a remote control, a base or bracket, and a WiFi module, along with a power cord, manual and warranty card. Optional network cards add cable, 3G or 4G access if your site needs them.
