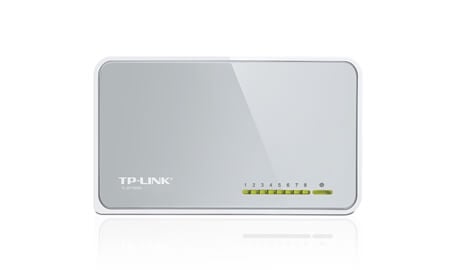

TP-Link TL-SF1008D 8-Port 10/100Mbps Desktop Switch

Standards and Protocols

IEEE 802.3, IEEE 802.3u, IEEE 802.3x
CSMA/CD

Interface

8 10/100Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX

External Power Supply

100-240VAC, 50/60Hz

Fan Quantity

Fanless

Data Rates

10/100Mbps at Half Duplex ;
20/200Mbps at Full Duplex

LED Indicator

Power, 1, 2, 3, 4, 5, 6, 7, 8

Dimensions ( W x D x H )

5.3*3.1*0.9 in. (134.5*79*22.5mm)

Power Supply

External Power Adapter

Transfer Method

Store and Forward

Advanced Functions

Green Technology, saving power up to73%
802.3X Flow Control, Back Pressure
Auto-Uplink Every Port

Certification

FCC, CE, RoHS

Package Contents

8-Port 10/100Mbps Desktop Switch
Power Adapter
User Guide

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, Windows 8, Mac® OS, NetWare®, UNIX® or Linux.

Environment

Operating Temperature: 0°C~40°C (32°F~104°F);
Storage Temperature: -40°C~70°C (-40°F~158°F);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
