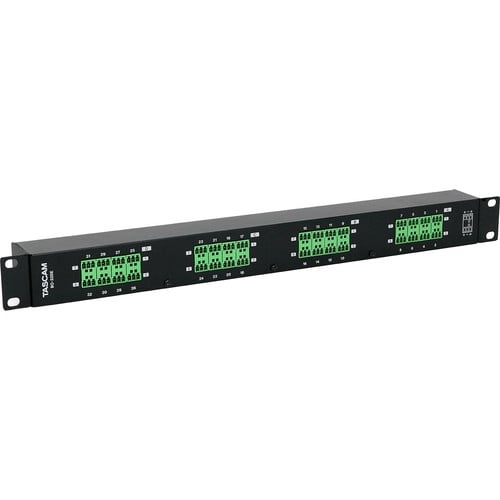

Tascam BO-32DE Rackmount 32-Channel DB25 to Euroblock I/O Adapter
- SKU: BO-32DE
Actual Stock & Price Can Be Confirmed After Placing the Order.
No longer available
PRODUCT OVERVIEW The Tascam BO-32DE is a passive rackmount 32-channel DB25 to Euroblock I/O adapter designed to deliver multi-channel conversion between D-Sub 25-pin and Euroblock for system installers, A/V technicians, and audio engineers in houses of worship, clubs, restaurants, and live stage applications. Its 32 channels... See More
PRODUCT OVERVIEW
The Tascam BO-32DE is a passive rackmount 32-channel DB25 to Euroblock I/O adapter designed to deliver multi-channel conversion between D-Sub 25-pin and Euroblock for system installers, A/V technicians, and audio engineers in houses of worship, clubs, restaurants, and live stage applications. Its 32 channels of I/O include 16 Euroblocks and four DB25 connectors, all of which can be used as inputs or outputs.
The enclosure occupies 1 RU and allows rotatable orientation to avoid unnecessary stress on cables. The reversible rack ears enable the BO-32DE to be positioned with either the Euroblock or DB25 connectors facing forward. 32 Euroblock plug tabs, a cable kit, and a rackmount screw kit are included.
- Ideal for providing connectivity between CD players, digital audio players, microphone preamps, zone mixers, distribution amplifiers, audio over IP converters, and more
- 32 channels of I/O
- 16 Euroblock balanced connectors
- Four DB25 balanced connectors
- Connectors function as inputs or outputs to accommodate a range of routing scenarios
- Mount in either of two 180° rotations to simplify cable runs and avoid unnecessary stress on cables
- Reversible rack ears can be positioned to face forward or backward so that either the Euroblock or DB25 connectors are front facing
- Shallow 2" depth uses minimal rack space
- Passive design requires no power source
- Includes 32 Euroblock plug tabs, cable kit, and rackmount screw kit
No datasheet available.
