VSYS VS02SE-446 Super-Economy Full-Motion TV Wall Mount for 32"–75" Displays, 40 kg
- Model: VS02SE-446
- SKU: VS02SE-446
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VS02SE-446 is a super-economy full-motion wall mount for 32"–75" flat and curved displays weighing up to 40 kg, available in the UAE from Procure.ae. Once a panel passes about 65 inches, the moment arm working on the wall fixings becomes the limiting... See More
The VSYS VS02SE-446 is a super-economy full-motion wall mount for 32"–75" flat and curved displays weighing up to 40 kg, available in the UAE from Procure.ae.
Once a panel passes about 65 inches, the moment arm working on the wall fixings becomes the limiting factor rather than the bracket itself. The VS02SE-446 addresses that by anchoring through a dual-stud plate spanning 406mm centres, spreading the load across two structural members instead of one. Construction is steel with reinforced plastic components, rated to 40 kg and strength-tested to three times that figure.

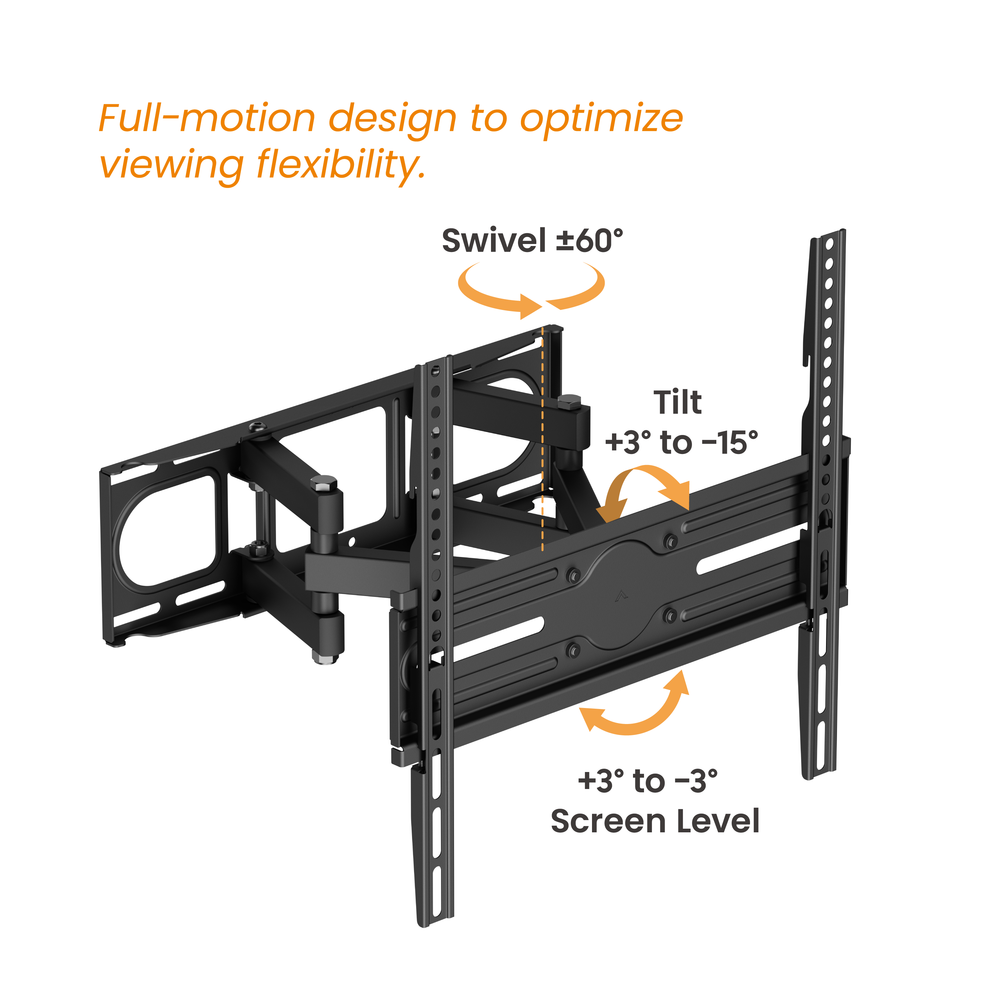

Beyond the extra anchorage, this model adds a levelling adjustment the smaller economy arms do not have: an independent plus 3 to minus 3 degree correction that squares a heavy screen after it is hanging, without loosening the wall plate. Working movement is plus 3 to minus 15 degrees of tilt and 60 degrees of swivel each way, with the arm travelling from 67mm folded to 355mm extended. A hook-on bubble level and integrated cable routing are supplied.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Dual-stud wall plate spanning 406mm centres, distributing the load of a larger panel across two studs.
- Independent screen levelling of plus 3 to minus 3 degrees, correcting a crooked hang without touching the wall fixings.
- Tilt of plus 3 to minus 15 degrees, a deeper downward range than typical economy arms, for screens set above seated eye level.
- Swivel of 60 degrees to either side, enough to redirect a large screen toward a second seating zone.
- Arm travel from 67mm folded to 355mm extended, keeping the panel close to the wall when not being repositioned.
- Rated to 40 kg and strength-tested to three times that load, matching the mass of most 65 to 75 inch panels.
- VESA 100x100mm to 400x400mm, covering the standard patterns used across this size class.

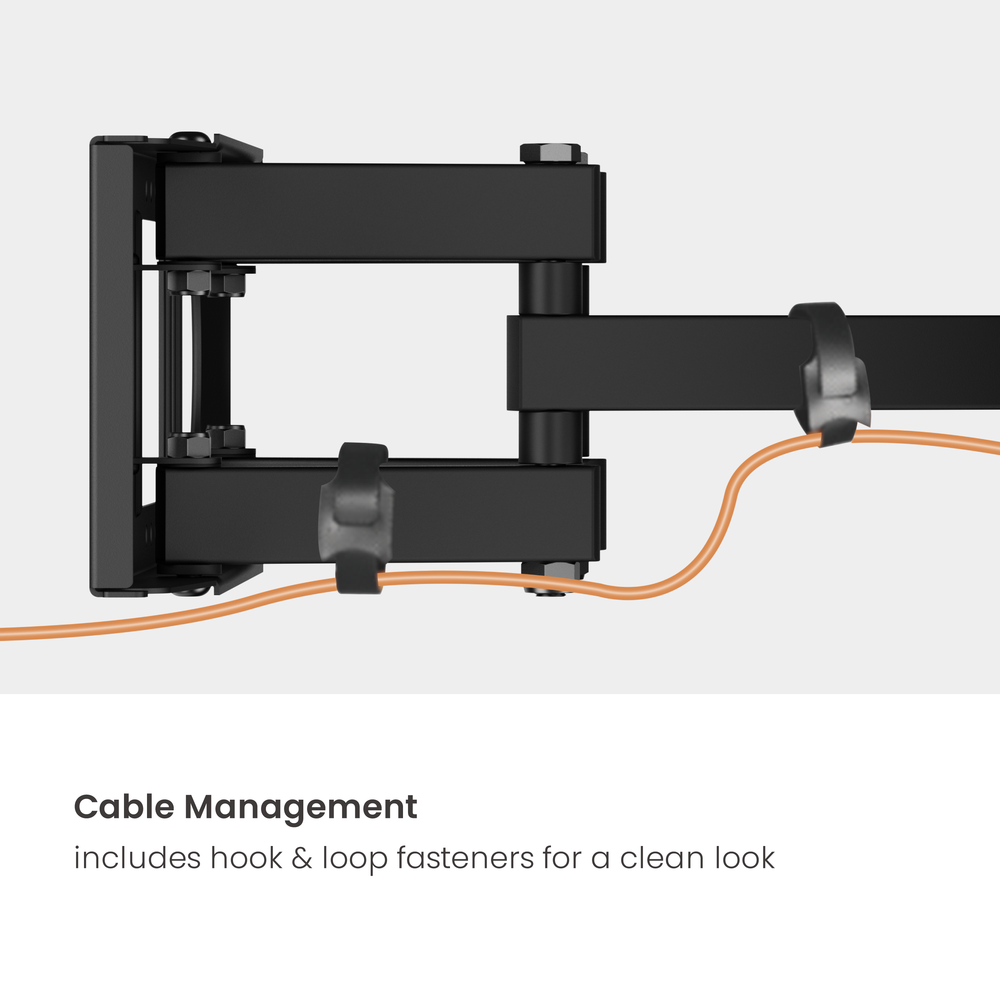

- Hook-on bubble level and integrated cable routing included, so the first-fix and the finish are handled in one visit.
Technical Specifications
| Model | VS02SE-446 |
| Type | Full-motion articulating TV wall mount |
| Screen size range | 32" to 75" |
| Weight capacity | Up to 40 kg |
| VESA compatibility | 100x100mm to 400x400mm |
| Tilt range | Plus 3 to minus 15 degrees |
| Swivel range | Plus 60 to minus 60 degrees |
| Screen levelling | Plus 3 to minus 3 degrees |
| Extension range | 67mm folded to 355mm extended |
| Material | Steel and reinforced plastic |
| Wall plate | Dual stud at 406mm centres, also suits solid walls |
| Cable management | Integrated cable routing |
| Testing | Strength tested to 3x rated load |
| In the box | Full-motion arm, dual-stud wall plate, mounting hardware bag, hook-on bubble level, installation guide |
Ideal for: open-plan offices serving two desk clusters, hotel lobbies and reception areas, staff canteens and break rooms, training rooms, villa family rooms, and showroom demonstration walls across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VS02SE-446 Super-Economy Full-Motion TV Wall Mount for 32"–75" Displays, 40 kg |
| Mounting Type | Wall mount, dual stud at 406mm centres or solid wall |
| Screen Size Support | 32 to 75 inch flat and curved TVs |
| Wall Mount Type | Full motion articulating arm with dual-stud plate |
| Product Type | Full-motion articulating TV wall mount |
| Screen Size Range | 32 to 75 inches |
| Load Capacity | Up to 40 kg |
| VESA Compatibility | 100x100mm to 400x400mm |
| Movement | Full motion, tilt, swivel and screen levelling on an extending arm |
| Tilt | Plus 3 to minus 15 degrees |
| Swivel | Plus 60 to minus 60 degrees |
| Rotation | Screen levelling plus 3 to minus 3 degrees |
| Extension Range | 67mm folded to 355mm extended |
| Wall Clearance | 67mm folded, 355mm at full extension |
| Material and Finish | Steel and reinforced plastic |
| Mounting Interface | VESA 100x100mm to 400x400mm |
| Cable Management | Integrated cable routing |
| Testing and Certification | Strength tested to 3 times rated load |
| In the Box | Full-motion arm, dual-stud wall plate, mounting hardware bag, hook-on bubble level, installation guide |
| MPN | VS02SE-446 |
| Model | VS02SE-446 |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VS02SE-446 in the UAE?
Procure.ae supplies the VSYS VS02SE-446 across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
Does it have to be fixed across two studs?
The plate is designed to span two studs at 406mm centres, which is the recommended fixing for panels toward the top of the range. It also installs to solid concrete or block walls using appropriate anchors.
What is the screen levelling adjustment for?
It corrects a display that hangs slightly off horizontal, over a plus 3 to minus 3 degree range, without disturbing the wall plate. On a 75-inch panel a fraction of a degree is visible along the ceiling line, so this saves re-drilling.
How does it compare with the VS02SE-466?
The 446 covers 32 to 75 inches and accepts VESA patterns up to 400x400mm on a dual-stud plate; the 466 runs from 37 to 80 inches and takes VESA up to 600x400mm. Both carry 40 kg and share the same 67mm to 355mm arm travel, so the decision is driven by panel size and mounting pattern.
Can it be supplied for a multi-room fit-out?
Yes. Procure.ae quotes the VS02SE-446 in project quantities for hotel, office and residential developments, with consolidated delivery across the UAE and GCC.
