VSYS VS02SE-466 Super-Economy Full-Motion TV Wall Mount for 37"–80" Displays, 40 kgVSYS
SKU VS02SE-466

VSYS VS02SE-466 Super-Economy Full-Motion TV Wall Mount for 37"–80" Displays, 40 kg

The VSYS VS02SE-466 is a super-economy full-motion wall mount for 37"–80" flat and curved displays weighing up to 40 kg, available in the UAE from Procure.ae.

The usual obstacle when specifying an articulating arm for an 80-inch panel is not weight but mounting pattern. Plenty of arms stop at 400x400mm, which rules out the wider hole spacing found on large-format screens. The VS02SE-466 accepts VESA patterns up to 600x400mm while still carrying 40 kg on a steel and reinforced-plastic structure, so one bracket family can cover a media wall, a lounge screen and a signage panel.

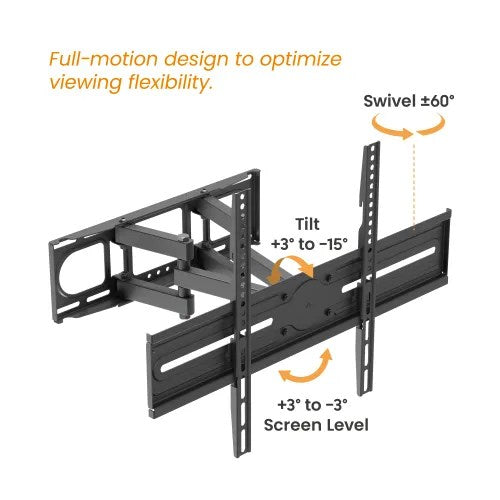

Two-tier height brackets allow the display position to be stepped up or down on the arm, giving control over final screen height without moving the wall plate. Motion is plus 3 to minus 15 degrees of tilt, 60 degrees of swivel to either side, and an independent plus 3 to minus 3 degree levelling correction. The arm folds to 67mm and reaches 355mm, and hook-and-loop ties hold the cabling to the arm through that travel.

It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Type
Full-Motion Articulating TV Wall Mount
  • VESA support to 600x400mm, wide enough for large-format 75 and 80 inch panels that will not fit a 400x400mm arm.
  • Two-tier height brackets step the screen up or down on the arm, so final height is set without re-drilling the wall plate.
  • Tilt from plus 3 to minus 15 degrees for correcting sightlines from seated positions and reducing glare.
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
VESA support to 600x400mm, wide enough for large-format 75 and 80 inch panels that will not fit a 400x400mm arm.
02
Two-tier height brackets step the screen up or down on the arm, so final height is set without re-drilling the wall plate.
03
Tilt from plus 3 to minus 15 degrees for correcting sightlines from seated positions and reducing glare.
04
Swivel 60 degrees left or right, letting one large display serve a lounge, a waiting area and a walkway.
05
Independent plus 3 to minus 3 degree levelling to square the panel after it is hanging.
06
Arm folds to 67mm and extends to 355mm, so the screen sits close to the wall when it is not being turned.
07
Hook-and-loop cable management keeps HDMI and power leads with the arm across the full range of motion.
08
Steel and reinforced plastic construction rated to 40 kg, with a hook-on bubble level supplied for a straight first fix.

Specifications

17 specifications
General
CompatibilityUniversal VESA, small-to-medium retail/POS displays
Key FeaturesHook-and-loop cable ties along the arm
ModelVS02SE-466
TypeFull-Motion Articulating TV Wall Mount
What's in the BoxFull-motion arm, Wall plate, Mounting hardware bag, Hook-on bubble level, Installation guide
Display
Supported Screen Sizes37-80" (flat and curved)
Physical
AdjustabilityFull motion, tilt, swivel, extension, levelling
Extension67 mm folded to 355 mm extended
Height RangeTwo-tier height brackets
Load Capacity40 kg
MaterialSteel and reinforced plastic
MountingWall mount, solid wall or stud
RotationLevelling +/-3°
Swivel+/-60°
Tilt-15 to +3°
VESA Mount100 x 100 to 600 x 400 mm
Compliance
CertificationsStrength tested

Questions

Can’t find your answer? Ask on WhatsApp

Will it take an 80-inch panel with a 600x400mm pattern?
Yes. The bracket accepts VESA patterns from 100x100mm up to 600x400mm, which is the practical reason to choose this model over a 400x400mm arm, provided the panel weighs 40 kg or less.
What do the two-tier height brackets do?
They give two mounting positions for the display on the arm, so the screen centre can be raised or lowered without repositioning the wall plate. That is useful when a soundbar, cabinet or window sill constrains the available height.
How much does the arm move?
It folds to 67mm from the wall and extends to 355mm. At any point in that travel the screen tilts plus 3 to minus 15 degrees, swivels 60 degrees either way, and can be levelled by up to 3 degrees.
What is the difference between this and the VS02SE-446?
