SpecktronFloor Standing KiosksSKU Transparent OLED 55in Portrait Kiosk

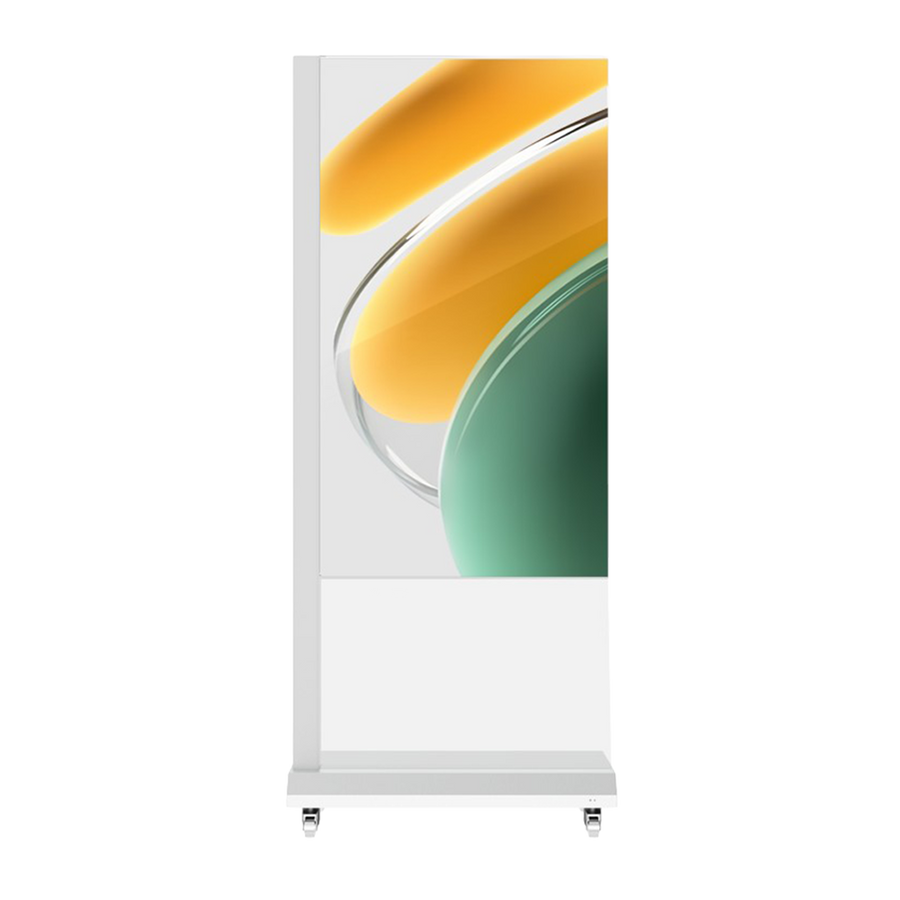

Specktron 55-inch Transparent OLED Portrait Kiosk
The Specktron 55-inch Transparent OLED Portrait Kiosk is a 9:16 OLED digital signage kiosk with a 1080 x 1920 panel. It offers 150,000:1 contrast, a 1 ms response time and 200 to 600 nits, with USB, HDMI and RS232 inputs. Suited to exhibitions, museums and corporate environments, it is supplied in the UAE by Procure.ae.
The portrait model uses a 55-inch OLED panel at 1080 x 1920 in a 9:16 ratio. Brightness is rated from 200 to 600 nits, with 150,000:1 contrast, a 178-degree viewing angle and a 1 ms grey-to-grey response time. The panel uses 10-bit colour, giving 1.07 billion colours, and sits in an aluminum profile frame. Power is 100–240 V AC, with consumption under 190 W.
The kiosk suits vertical installations in exhibitions, museums and corporate environments, where a tall, narrow display is needed. Its control connections are USB, HDMI and RS232 inputs, plus an RS232 output. The manufacturer rates it for 0 to 40 °C and 20% to 80% humidity. Unlike the 55-inch landscape info kiosk, it uses a 9:16 portrait panel.
Screen Size
55 inch
Resolution
1080 x 1920 (portrait)
Brightness
200–600 nits
Type
Transparent OLED Digital Signage Kiosk
- Portrait format
- Contrast ratio
- Response time
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Portrait format
9:16 ratio with 1080 x 1920 resolution.
02
Contrast ratio
150,000:1 contrast ratio and 178-degree viewing angle.
03
Response time
1 ms grey-to-grey response.
04
Brightness range
200 to 600 nits (cd/m²).
05
Colour depth
10-bit per colour, 1.07 billion colours.
06
Control ports
USB, HDMI and RS232 inputs with RS232 output.
07
Frame construction
Aluminum profile frame.
Specifications
18 specificationsGeneral
Key FeaturesPortrait 9:16 OLED, 150,000:1 contrast, 1 ms response, 200–600 nits, 10-bit colour, aluminum frame, RS232 in and out
ModelTransparent OLED 55in Portrait Kiosk
TypeTransparent OLED Digital Signage Kiosk
Display
Aspect Ratio9:16
Brightness200–600 nits
Color Depth10-bit, 1.07 billion colours
Contrast Ratio150,000:1
Panel TechnologyOLED
Resolution1080 x 1920 (portrait)
Response Time1 ms
Screen Size55 inch
Viewing Angle178°
Connectivity
Input Voltage100–240 V AC
PortsInputs: USB × 1, HDMI × 1, RS232 IN × 1; Output: RS232 OUT × 1
Power
Power Consumption<190 W
Physical
MaterialAluminum profile frame
Operating Humidity20% to 80%
Operating Temperature0 to 40 °C
Downloads
Manufacturer documents for the Specktron 55-inch Transparent OLED Portrait Kiosk — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and ratio does the 55-inch portrait kiosk use?
It uses a 1080 x 1920 resolution in a 9:16 portrait ratio on a 55-inch OLED panel. Brightness is rated from 200 to 600 nits, with 10-bit colour. The kiosk has an aluminum profile frame.
What are the contrast ratio and response time?
The panel is rated at 150,000:1 contrast, with a 1 ms grey-to-grey response time and a 178-degree viewing angle. Brightness is rated at 200 to 600 nits, and colour depth is 10-bit.
Which inputs and outputs does it have?
It has USB × 1, HDMI × 1 and RS232 IN × 1 inputs, plus an RS232 OUT × 1 output. The manufacturer lists RS232 for control connections, with one RS232 IN and one RS232 OUT port.
What operating conditions does it support?
The kiosk operates at 0 to 40 °C and 20% to 80% humidity. Power input is 100–240 V AC, and consumption is under 190 W. The power input is rated for standard 100–240 V AC supplies.
Is it suitable for exhibitions and corporate environments?
Yes. The manufacturer describes the kiosk for exhibitions, museums and corporate environments. Its portrait format suits vertical, narrow spaces. The 55-inch panel is rated at 1080 x 1920 with a 9:16 ratio.
Can I buy the Transparent OLED 55in Portrait Kiosk in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
