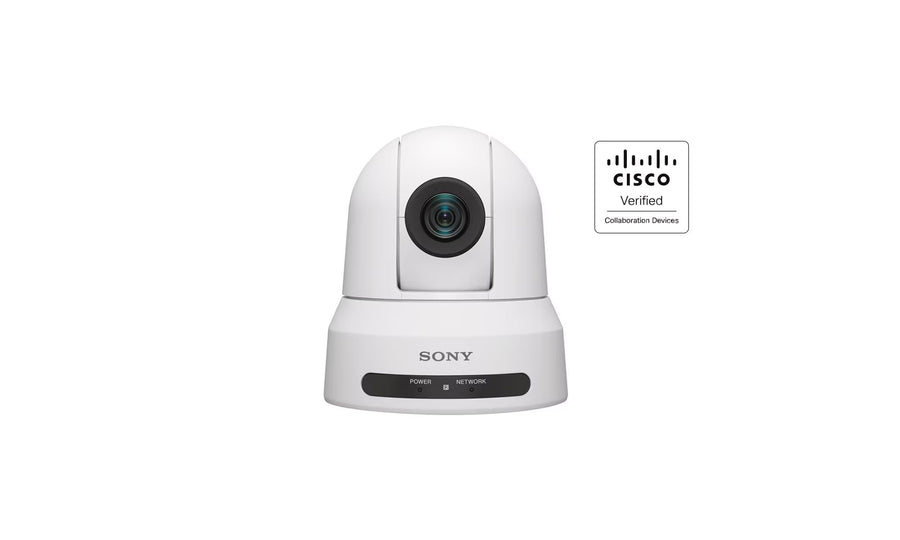

Sony IP PTZ Conference Camera with 12x Zoom – SRG-X120

The Sony SRG-X120 is a discontinued IP PTZ camera for conference rooms, classrooms and live streaming setups. It offers 12x optical zoom, HDMI and 3G-SDI outputs, and NDI|HX capability with a licence sold separately. Procure.ae can confirm current availability of the Sony SRG-X120 across the UAE.

The SRG-X120 uses a 1/2.5-type Exmor R CMOS sensor with approximately 8.5 megapixels effective and a 12x optical zoom, with a focal length of 4.4 to 52.8 mm. It offers 4K streaming output with an optional 4K license, and HD output over 3G-SDI, HDMI and IP at up to 1920 x 1080. Pan spans ±170 degrees and tilt runs from +90 to -20 degrees, with pan speed up to 300 degrees per second. It supports three multi-streams to up to five clients.

The SRG-X120 suits rooms that need an IP PTZ camera with NDI|HX and a choice of HD or 4K streaming. It accepts VISCA over IP and VISCA RS-422 control, with 256 CGI presets or 100 VISCA presets. It takes DC 12 V or PoE+ (IEEE 802.3at compliant) and mounts to a ceiling with the supplied brackets. Because the model is discontinued, confirm current availability before specifying it for a project.

Resolution

3840 x 2160 (4K UHD, optional license); 1920 x 1080 (Full HD)

Speed

Pan 1.1 to 101°/s; tilt 1.1 to 91°/s

Type

PTZ Camera

Weight

1.8 kg

Key features

4K output

3840 x 2160 with the optional 4K license.

12x optical zoom

4.4 to 52.8 mm focal length, with a horizontal view of about 70°.

NDI|HX capability

available with a licence sold separately.

IP streaming

up to 3840 x 2160, with bitrates from 512 kbps to 50 Mbps.

Multi streaming

three streams to up to five clients.

PoE+ or DC power

DC 12 V or PoE+ (IEEE 802.3at compliant).

Microphone inputs

two 3.5 mm inputs with mic or line selection.

Ceiling mount

mounts with the supplied ceiling brackets and wire rope.

Specifications

General
Key Features	4K output (requires optional 4K license), 12x optical zoom, NDI\|HX capability (license sold separately), PoE+ power, ceiling mount
Model	SRG-X120
Type	PTZ Camera
What's in the Box	AC power adaptor, IR remote commander, ceiling brackets (2), wire rope, M3 and M2.6 screws, HDMI cable fixing plate, warranty

Display
Camera	1/2.5-type Exmor R CMOS, approx. 8.5 MP effective
Resolution	3840 x 2160 (4K UHD, optional license); 1920 x 1080 (Full HD)
Viewing Angle	approx. 70° horizontal (wide)
Zoom	12x optical

Performance
Speed	Pan 1.1 to 101°/s; tilt 1.1 to 91°/s
Storage Conditions	-20 to +60 °C

Audio
Audio In	3.5 mm mini-phone × 2 (mic / line selectable)

Connectivity
Data Rate	512 Kbps to 50 Mbps (IP stream)
Input Voltage	DC 10.8 to 13.2 V
PoE	PoE+ (IEEE 802.3at compliant)
Ports	HDMI × 1, 3G-SDI × 1, IP streaming (RJ-45) × 1, VISCA IN/OUT RJ-45, microphone input 3.5 mm × 2
Protocols	IPv4, IPv6, HTTP, HTTPS, RTP/RTCP, RTSP, UPnP, VISCA over IP

Power
Power Consumption	25.5 W max

Physical
Color	White / Black
Dimensions	158.4 x 177.5 x 200.2 mm
Mounting	Ceiling mount (with ceiling bracket)
Operating Temperature	0 to 40 °C
Weight	1.8 kg
