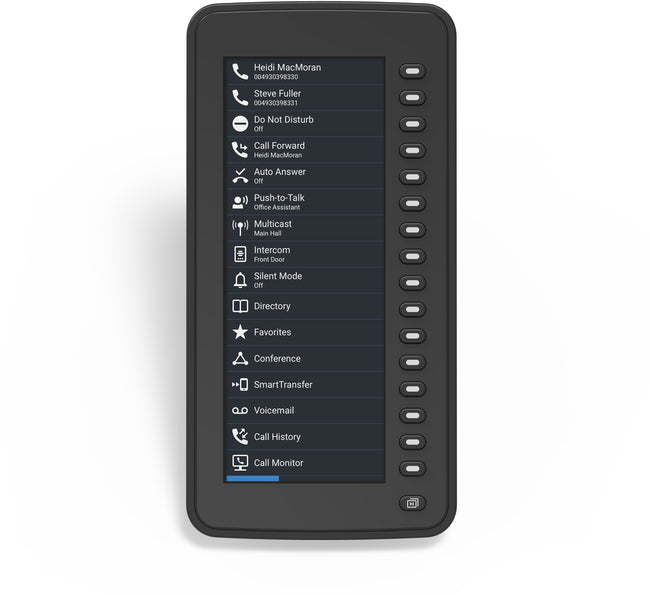

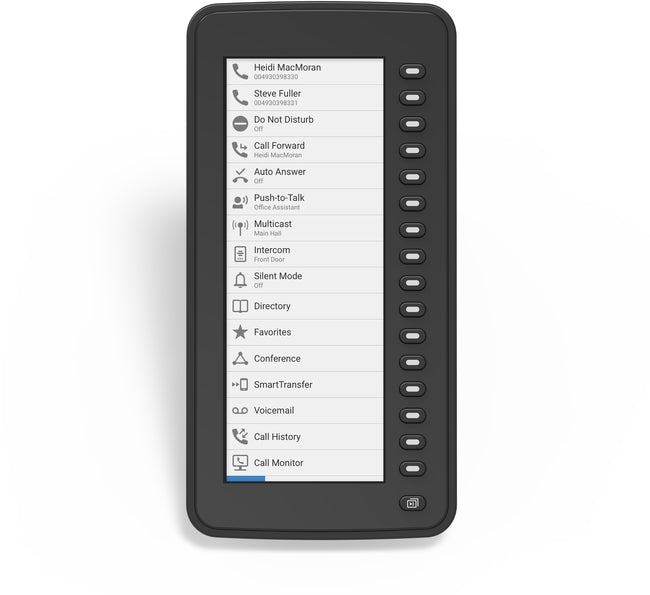

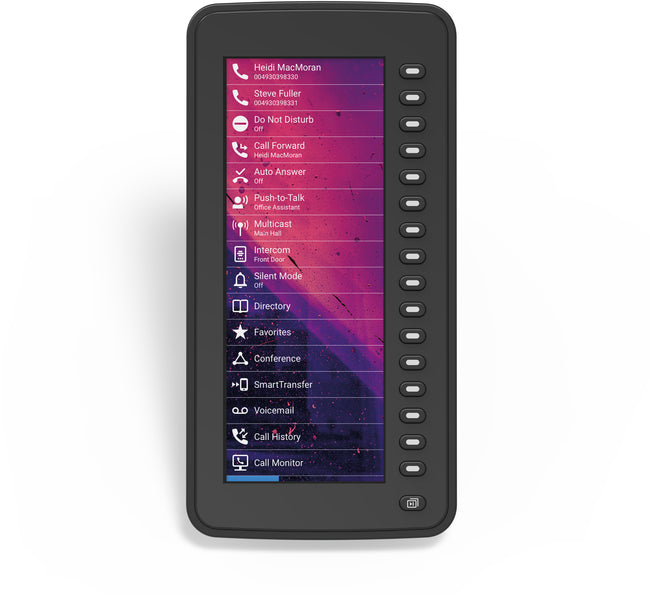

Snom D7C – Front ViewSnom
PABX & VoIPSKU Snom-D7C

Snom D7C Colour Expansion Module for D7-Series Phones

The Snom D7C is a colour-touchscreen expansion module that Procure.ae supplies in the UAE to extend the button capacity of Snom's D7-series desk phones.

The Snom D7C attaches to a compatible Snom desk phone and turns a handful of extension numbers into a full directory of speed dials, line appearances and presence indicators. Its 6.8-inch TFT colour touchscreen is paired with 16 physical multi-colour LED keys, giving receptionists and team leads 48 programmable functions on a single module without touching the phone's own configuration.

It suits reception desks, executive assistants and any workstation that manages several extensions at once, from corporate offices to hotel front desks and school administration blocks. Up to two additional D7C or D7 modules can be daisy-chained from a single host phone, and Procure.ae can plan and deliver multi-module setups for larger UAE and GCC sites.

Type
Color Expansion Module
  • 6.8-inch TFT colour screen
  • 48 programmable functions
  • USB plug and play
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
6.8-inch TFT colour screen
A sharp touchscreen displays names, numbers and line status for each programmable key
02
48 programmable functions
16 physical multi-colour LED keys combined with touchscreen paging
03
USB plug and play
Connects to the host phone's USB port with no separate configuration step
04
Expandable to 3 modules
Chain up to two more D7 or D7C units for larger key counts
05
Presence and BLF monitoring
See colleague availability and call state at a glance
06
One-touch call routing
Transfer and route calls directly from the module's keys
07
Matches D785, D765, D745, D735, D725, D717 and D715
Fits Snom's current D7-series handsets

Specifications

14 specifications
General
CompatibilitySnom D785, D765, D745, D735, D725, D717, D715
ModelD7C
TypeColor Expansion Module
Display
Display6.8" colour touchscreen TFT LCD
Connectivity
ExpansionUp to 2 additional modules per phone
Programmable KeysUp to 48 (16 multi-colour LED keys)
USB PortsUSB plug and play (powered from host phone)
Physical
ColorBlack
Additional specifications
Physical keys16 multi-colour LED keys
Programmable functionsUp to 48
ConnectionUSB plug and play (powered from host phone)
ExpandabilityUp to 2 additional modules per phone
Compatible phonesSnom D785, D765, D745, D735, D725, D717, D715
ColourBlack

Questions

Can’t find your answer? Ask on WhatsApp

Which Snom phones does the D7C work with?
The D7C is built for Snom's current D7-series desk phones, including the D785, D765, D745, D735, D725, D717 and D715. It connects via the phone's USB port and does not work with older D3-series models.
Does the D7C need its own power supply?
No. The module is powered directly through the USB plug-and-play connection to the host phone, so no separate adapter or mains cable is required.
How many D7C modules can I add to one phone?
A single Snom D7-series phone can drive up to three expansion modules in total (the D7C plus two more D7 or D7C units), giving well over a hundred programmable keys where a workstation needs them.
What is the difference between the D7C and the standard D7 module?
The D7C uses a 6.8-inch colour touchscreen for its key labels, while the standard D7 module relies on 18 physical LED keys with a self-labelling paper-free display. Both attach the same way to D7-series phones.
