SMARTMeeting Room SolutionsSKU SMART FSE-400 series electric height-adjustable mobile stand
SMART FSE-400 Electric Height-Adjustable Mobile Stand – FSE-400

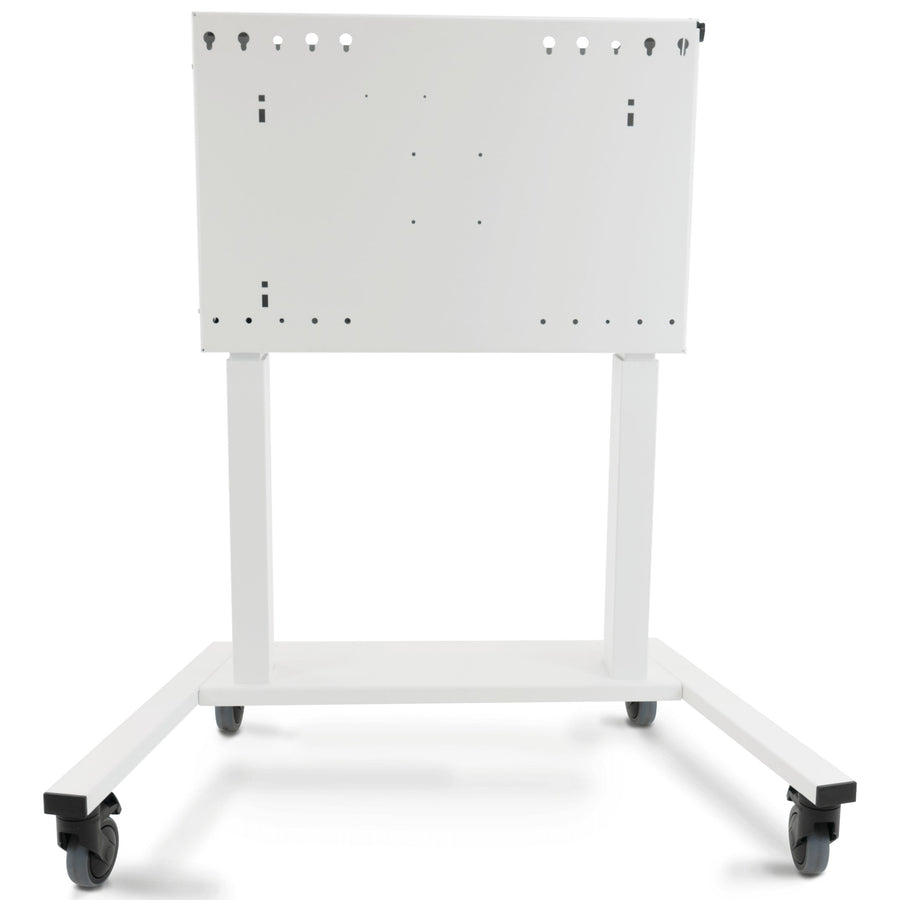

The SMART FSE-400 is an electric height-adjustable mobile stand for SMART Board interactive displays up to 86 inch. It lifts up to 111 kg, adjusts over 66 cm of travel and rolls on 4-inch locking casters. Procure.ae supplies the FSE-400 stand in the UAE for classrooms and meeting rooms.
The stand supports SMART Board GX, MX and MX Pro, QX Pro, 6000 and 6000 Pro, 6000S and 6000S Pro, 7000 and 7000 Pro, 7000R and 7000R Pro, and 2000 series displays. It has a maximum lift capacity of 245 lb (111 kg) and raises the display from 122 cm to 188 cm, a 66 cm height range. Its motor draws up to 300 W when raising a display, and the manufacturer specifies a 10% duty cycle: two minutes of fully loaded operation followed by 18 minutes of rest.
Type
Electric Height-Adjustable Mobile S...
- Electric height adjustment
- Locking casters
- Lift capacity
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Electric height adjustment
raises and lowers the display over 66 cm, from 122 cm to 188 cm.
02
Locking casters
four 4-inch industrial-grade locking casters for mobility.
03
Lift capacity
carries displays up to 111 kg (245 lb).
04
VESA compatibility
300 x 400, 500 x 400, 600 x 400, 700 x 400 and 400 x 200 mm patterns with M8 fixings.
05
Optional parts
handles, a cable hook and a laptop shelf are sold as separate order numbers.
06
Warranty
five-year limited equipment warranty.
Specifications
18 specificationsGeneral
CompatibilitySMART Board GX, MX, MX Pro, QX Pro, 6000, 6000 Pro, 6000S, 6000S Pro, 7000, 7000 Pro, 7000R, 7000R Pro and 2000 series
Key Features4-inch locking casters, electric height adjustment, 111 kg lift capacity, 66 cm travel, handle and cable hook options, laptop shelf option, five-year warranty
ModelSMART FSE-400 series electric height-adjustable mobile stand
TypeElectric Height-Adjustable Mobile Stand
Display
Supported Screen SizesUp to 86 inch (218 cm) diagonal, 80 inch (203 cm) wide
Performance
Duty Cycle10% (2 min at full load, 18 min rest)
Storage Conditions-10 to 70 °C
Connectivity
Input Voltage100–240 V AC, 50–60 Hz
Power
Power Consumption300 W (maximum load when raising)
Standby Power0.1 W
Physical
AdjustabilityElectric height adjustment
Height Range122 to 188 cm (66 cm travel)
Load Capacity111 kg (245 lb)
Operating HumidityUp to 85% RH, non-condensing
Operating Temperature10 to 40 °C
VESA Mount300 x 400, 500 x 400, 600 x 400, 700 x 400, 400 x 200 mm (M8); 800 mm patterns need WM-SBID-200
Compliance
CertificationsISED, CE, RoHS, REACH
Warranty5 years limited equipment warranty
Downloads
Manufacturer documents for the SMART FSE-400 Electric Height-Adjustable Mobile Stand – FSE-400 — datasheets, manuals, drawings and certificates.
- Datasheet – SMART FSE-400 series electric height-adjustable mobile stand – specsfse-400
- Datasheet – SMART FSE-400 series electric height-adjustable mobile stand – specsfse-410
- Datasheet – SMART FSE-400 series electric height-adjustable mobile stand – specsfse-420
- Brochure – SMART FSE-400 series electric height-adjustable mobile stand
- User manual – SMART FSE-400 series electric height-adjustable mobile stand – fse400floorstand textless
- User manual – SMART FSE-400 series electric height-adjustable mobile stand – fse420 textless
- User manual – SMART FSE-400 series electric height-adjustable mobile stand – userguidefse-400
- User manual – SMART FSE-400 series electric height-adjustable mobile stand – userguidefse-410
- User manual – SMART FSE-400 series electric height-adjustable mobile stand – userguidefse-420
- AddendumForSMART ElectricHeight-adjustableStands
Questions
Can’t find your answer? Ask on WhatsApp
Which SMART Boards does the FSE-400 stand support?
The FSE-400 supports SMART Board GX, MX and MX Pro, QX Pro, 6000 and 6000 Pro, 6000S and 6000S Pro, 7000 and 7000 Pro, 7000R and 7000R Pro, and 2000 series displays. Displays up to 86 inch diagonal and 80 inch wide are supported.
Is the stand compatible with my display's VESA pattern?
Yes, if the pattern is 300 x 400, 500 x 400, 600 x 400, 700 x 400 or 400 x 200 mm with M8 fixings. Displays with 800 mm patterns require the WM-SBID-200 wall mount. Check your display's VESA pattern against these values before ordering.
How much weight can the stand carry?
The maximum lift capacity is 245 lb (111 kg), and the manufacturer specifies a 10% duty cycle. Allow 18 minutes of rest after two minutes of fully loaded operation. The stand draws up to 300 W when raising a display.
