SMARTInteractive Flat PanelsSKU SIP-727

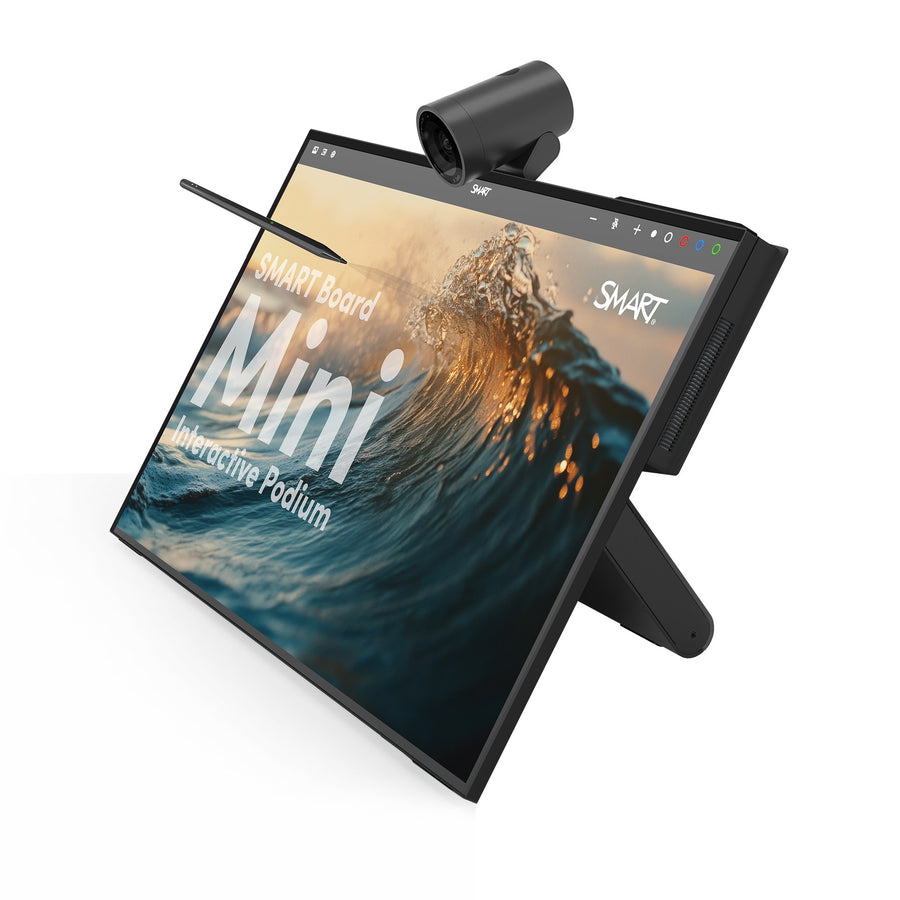

SMART Board Mini 727 27-inch Interactive Podium – SIP-727
The SMART Board Mini 727 (model SIP-727) is a 27-inch interactive podium for teachers and presenters, with a 4K UHD touch display, a built-in 4K camera and an eight-microphone array. Its OPS slot takes SMART PCM modules or the AM60 appliance. Procure.ae supplies the SIP-727 in the UAE.
The SIP-727 has a 27-inch 4K UHD (3840 x 2160) LED-backlit display rated at 500 nits, with a 16:9 aspect ratio, a 60 Hz refresh rate, a 178° viewing angle and a 14 ms response time. Its PCAP touch layer supports 10 simultaneous touch points with palm rejection, and the active stylus offers 4096 pressure levels and a fine eraser. The integrated 4K camera has auto-focus, auto-framing that users can control, and 5× digital zoom over a 118° field of view.
The podium suits lecture theatres, classrooms and presentation rooms where a presenter needs touch, camera and audio in one unit. Two 6 W speakers are integrated, and the HDMI 2.1 and USB-C ports support 4K at 60 Hz, with DisplayPort 1.4a on the USB-C ports. The unit has a Kensington security slot and an integrated privacy shutter, and it mounts with a VESA plate of 75 x 75 mm or 100 x 100 mm. It weighs 6.1 kg and tilts from -16° to 90°.
Screen Size
27 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
PCAP
- 27-inch 4K UHD display
- 10-point PCAP touch
- Active stylus
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
27-inch 4K UHD display
3840 x 2160 resolution, 16:9 aspect ratio, 500 nits and a 60 Hz refresh rate.
02
10-point PCAP touch
Palm rejection and a 14 ms display response time on a 27-inch 4K UHD panel.
03
Active stylus
Microsoft Pen Protocol stylus with 4096 pressure levels and a fine eraser.
04
4K camera with auto-framing
Auto-focus, user-controllable auto-framing and 5× digital zoom over a 118° field of view.
05
Eight-microphone array
Built-in acoustic echo cancellation, with two integrated 6 W speakers.
06
Rear OPS slot
Supports SMART PCM modules or the AM60 appliance.
07
Privacy and security
Integrated privacy shutter and a Kensington security slot.
Specifications
34 specificationsGeneral
Key Features27-inch 4K UHD display, 10-point PCAP touch, Active stylus, 4K camera with auto-framing, Eight-microphone array, Privacy shutter, OPS slot for PCM modules or AM60, Kensington slot
ModelSIP-727
TypeInteractive Podium
What's in the BoxStylus with tether, remote control, VESA mounting plate, power adapter, 3 m USB 2.0 cable, 1.8 m USB-C cable
Display
Aspect Ratio16:9
BacklightLED
Brightness500 nits
Camera4K camera, auto-focus, auto-framing (user-controllable), 5× digital zoom, 118° field of view
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time14 ms
Screen Size27 inch
Touch Points10-point multi-touch
Touch TechnologyPCAP
Viewing Angle178°
Zoom5× digital (ePTZ)
Audio
Audio2 x 6 W speakers
MicrophoneEight-microphone array with acoustic echo cancellation
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 (SMART PCM modules or AM60 appliance)
PortsHDMI 2.1 × 2, USB-C × 2, USB 3.0 Type-A × 2, USB 3.0 Type-B × 1, RJ45 LAN × 1, 3.5 mm audio × 1
Power
Power Consumption< 50 W (typical)
Standby Power< 0.5 W
Physical
ColorBlack
MaterialBlack aluminum
Operating Humidity20% to 90% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions753 x 488 x 156 mm
Shipping Weight10.5 kg
Tilt-16° to 90°
VESA Mount75 x 75 mm and 100 x 100 mm (M4)
Weight6.1 kg
Compliance
CertificationsCE, LVD, CB, EMCD, REACH, RoHS, WEEE, ENERGY STAR, HDMI, HDCP
Security FeaturesKensington security slot, integrated privacy shutter
Downloads
Manufacturer documents for the SMART Board Mini 727 27-inch Interactive Podium – SIP-727 — datasheets, manuals, drawings and certificates.
- Datasheet – SMART Board Mini interactive podium
- Brochure – SMART Board Mini interactive podium – SMART-Board-Mini-interactive-podium-brochure-en
- Brochure – SMART Board Mini interactive podium – SMART-Board-Mini-interactive-podium-brochure-engb
- Installation guide – SMART Board Mini interactive podium
Questions
Can’t find your answer? Ask on WhatsApp
Is the SIP-727 a 4K display?
Yes. The SIP-727 has a 27-inch 4K UHD display at 3840 x 2160 resolution, a 16:9 aspect ratio, a 60 Hz refresh rate and 500 nits of brightness. The display response time is 14 ms.
Does the SIP-727 include a camera and microphones?
Yes. It has an integrated 4K camera with auto-focus, auto-framing that users can control, and 5× digital zoom. The eight-microphone array has built-in acoustic echo cancellation, and two 6 W speakers are integrated.
Can the SIP-727 run a PC or an AM60 appliance?
Yes. Its OPS slot supports SMART PCM modules or the AM60 appliance. The manufacturer also lists the SIP-727-PCMi5, SIP-727-PCMi7 and SIP-727-AM60 bundles as separate model codes, so check which bundle matches your needs before ordering.
How is the SIP-727 mounted?
The podium includes a VESA mounting plate and screws, and it supports M4 VESA patterns of 75 x 75 mm and 100 x 100 mm. It weighs 6.1 kg and tilts from -16° to 90°. Procure.ae can advise on the stand or mount that suits your room.
Can I buy the SIP-727 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
