SMARTInteractive Flat PanelsSKU M586-V5-P

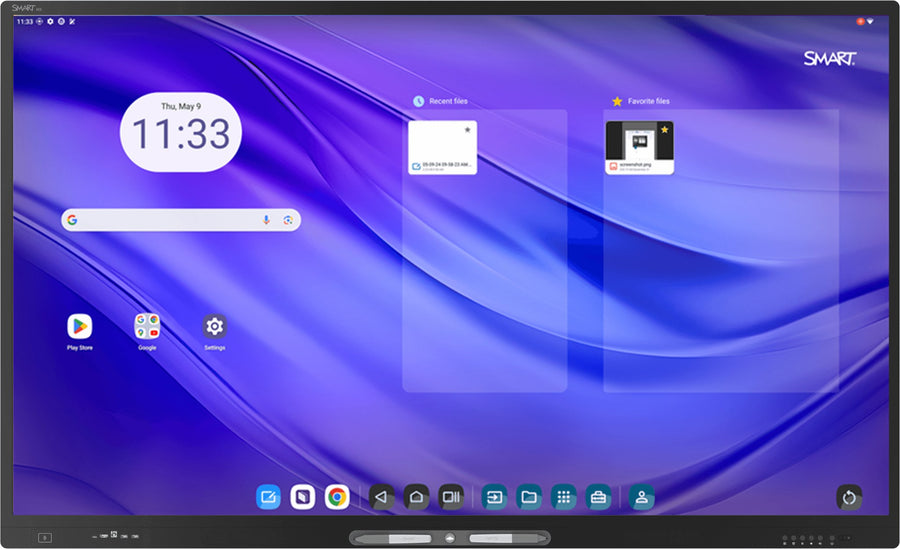

SMART Board M Pro with iQ TAA 86-inch Interactive Flat Panel – M586-V5-P
The SMART Board M586-V5-P is a 86-inch 4K UHD interactive flat panel from the M Pro series with iQ, listed as TAA. It runs Android 13 with automatic updates to Android 15 and suits classrooms, boardrooms, training rooms and government offices. Procure.ae supplies it across the UAE.
The M586-V5-P has a 3840 x 2160 (4K UHD) LED-backlit panel, 400 nits brightness, a 178° viewing angle and an 8 ms display response time. HyPr Touch with Advanced IR supports up to 50 touch points, depending on the operating system, with 1 mm accuracy and a typical touch response time of 5 ms. The octa-core processor, 8 GB DDR4 memory and 64 GB storage (up to 576 GB) run Android 13. Wi-Fi 6E, Bluetooth 5.2 and NFC are on board, and two integrated 20 W speakers, two pens and a remote control are included.
The 800 x 600 mm VESA pattern uses M8 fixings, so standard VESA wall or mount systems rated for 68 kg can carry the panel. The rear OPS PC accessory slot accepts SMART PCM modules, and the USB-C, USB 3.2 Gen 1 and RJ45 LAN ports connect devices and wired networks. Compared with the high secure M Pro models, which do not list a built-in operating system or Wi-Fi, this iQ model adds Android, wireless connectivity and NFC. Procure.ae offers free training and support across the UAE.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 4K UHD resolution
- Advanced IR touch
- Android platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels on a 16:9 panel rated at 400 nits.
02
Advanced IR touch
HyPr Touch with Advanced IR supports up to 50 touch points with 1 mm accuracy.
03
Android platform
Android 13 with automatic over-the-air updates to Android 15.
04
Wireless connectivity
Wi-Fi 6E (IEEE 802.11ax) and Bluetooth 5.2 dual mode.
05
NFC reader
Integrated RFID NFC reader/writer for ISO 14443A/B and ISO 15693 cards.
06
Memory and storage
Octa-core CPU, 8 GB DDR4 memory and 64 GB storage (up to 576 GB).
07
Integrated audio
Two integrated 20 W speakers, with ambient light and infrared sensors.
08
iQ and TAA
M Pro series with iQ, listed as TAA, with a personalized home screen and split screen.
Specifications
42 specificationsGeneral
Key Features4K UHD (3840 x 2160), 400 nits, HyPr Touch Advanced IR, up to 50 touch points, Android 13, Wi-Fi 6E, Bluetooth 5.2, NFC reader
ModelM586-V5-P
TypeInteractive Flat Panel
What's in the Box2 pens, remote control, 5 m USB 2.0 A-to-B cable
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy1 mm
Touch PointsUp to 50-point multi-touch
Touch Response Time5 ms (typical)
Touch TechnologyInfrared
Viewing Angle178°
Performance
LicenseRoom license and 10 personal licenses
Operating SystemAndroid 13
ProcessorOcta-core
RAM8 GB
Storage64 GB (up to 576 GB)
Storage Conditions-20 to 60 °C
Audio
Audio2 x 20 W integrated speakers
Connectivity
BluetoothBluetooth 5.2
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotRear, SMART PCM modules
PortsUSB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB Type-C × 3, RJ45 LAN × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1, 3.5 mm stereo × 1, USB 2.0 Type-A × 1, microSD slot with security cover × 1
ProtocolsISO 14443A/B, ISO 15693, NFC Tag 1-4
Wi-FiWi-Fi 6E (IEEE 802.11ax)
Power
Power Consumption149 W (typical)
Standby Power0.2 W
Physical
ColorBlack
Dimensions1962 x 1199 x 89 mm
Operating Humidity5% to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions2165 x 1445 x 160 mm
Shipping Weight94 kg
VESA Mount800 x 600 mm
Weight68 kg
Compliance
CertificationsTAA, CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, HDMI, HDCP
Country of OriginMexico
Security FeaturesSecurity cover on microSD slot
Downloads
Manufacturer documents for the SMART Board M Pro with iQ TAA 86-inch Interactive Flat Panel – M586-V5-P — datasheets, manuals, drawings and certificates.
- Datasheet – SMART Board M Pro series TAA – m-pro-series-taa-en
- Datasheet – SMART OPS PC module PCM13
- Datasheet – SMART Board M Pro series TAA – specssbidm500v5p
- User manual – SMART Board M Pro high secure series TAA / Board M Pro series TAA
- Installation guide – SMART Board M Pro high secure series TAA / Board M Pro series TAA
Questions
Can’t find your answer? Ask on WhatsApp
Is the SMART Board M586-V5-P a 4K display?
Yes. The M586-V5-P has a 3840 x 2160 (4K UHD) LED-backlit display with a 16:9 aspect ratio, a 178° viewing angle and 400 nits brightness. Its refresh rate is 60 Hz.
Does the M586-V5-P have a built-in operating system?
Yes. It runs Android 13, with automatic over-the-air updates to Android 15. The software includes a personalized home screen and settings, split screen, picture-in-picture with touch pass-through, templates and file and app libraries.
Does it support Wi-Fi, Bluetooth and NFC?
Yes. It has Wi-Fi 6E (IEEE 802.11ax) with two external tri-band antennas, Bluetooth 5.2 dual mode and an integrated RFID NFC reader/writer. Two RJ45 1000BASE-T ports provide wired networking.
What touch technology does it use?
It uses HyPr Touch with Advanced IR, which supports up to 50 touch points depending on the operating system, with 1 mm accuracy. Typical touch response time is 5 ms, and simultaneous tool differentiation and Object Awareness are included.
Can it be wall mounted, and what VESA pattern does it use?
Yes. It uses an M8 VESA pattern of 800 x 600 mm. The panel weighs 68 kg, so the wall or mount system must be rated for that load. Procure.ae can arrange delivery and installation across the UAE.
Can I buy the M586-V5-P in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
