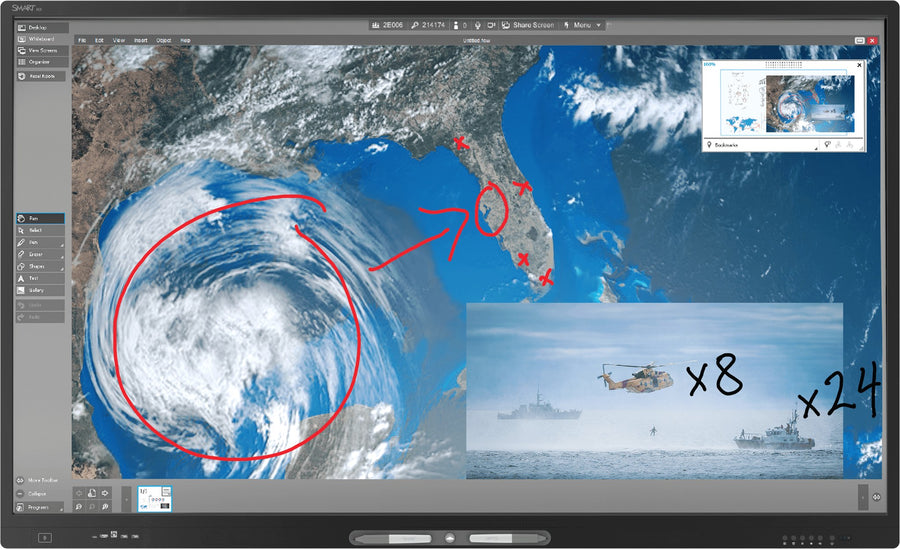

SMART Board M465-V5-P 65-inch interactive flat panelSMART

SMART Board M Pro High Secure TAA 65-inch Interactive Flat Panel – M465-V5-P

The SMART Board M465-V5-P is a 65-inch 4K UHD interactive flat panel from the M Pro high secure series, listed by the manufacturer as TAA. It suits classrooms, boardrooms and government offices, with 400 nits brightness, up to 50-point touch and a rear OPS slot. Procure.ae supplies it across the UAE.

The M465-V5-P pairs a 3840 x 2160 (4K UHD) LED-backlit panel with a 16:9 aspect ratio, 400 nits brightness, a 178° viewing angle and a 60 Hz refresh rate. HyPr Touch with Advanced IR supports up to 50 touch points, depending on the operating system, with 1 mm accuracy and a typical touch response time of 5 ms. Simultaneous tool differentiation, Object Awareness and Silktouch are listed as touch features. The glass is full heat-tempered and anti-glare. Two pens and magnetic and frame-mounted tool holders come with it, and two integrated 20 W speakers are built in.

The 600 x 400 mm VESA pattern uses M8 fixings, so the panel fits standard VESA wall or mount systems rated for its 40 kg weight. The rear OPS PC accessory slot accepts SMART PCM modules, and the RJ45 LAN, VGA, RS-232 and S/PDIF optical ports support integration with existing AV and control systems. The iQ models in the M Pro series add Android, Wi-Fi 6E, Bluetooth 5.2 and NFC, which this model's specifications do not list. Procure.ae offers free training and support, with delivery and installation across the UAE.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
  • 4K UHD resolution
  • Advanced IR touch
  • Fast response
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K UHD resolution
3840 x 2160 pixels on a 16:9 panel rated at 400 nits.
02
Advanced IR touch
HyPr Touch with Advanced IR supports up to 50 touch points with 1 mm accuracy.
03
Fast response
The panel has an 8 ms display response time and a 5 ms typical touch response time.
04
Integrated audio
Two integrated 20 W speakers, with ambient light and infrared sensors.
05
Touch features
Simultaneous tool differentiation, Object Awareness and Silktouch are listed for this model.
06
High secure series
M Pro high secure series, listed as TAA, with full heat-tempered anti-glare glass.
07
OPS expansion
Rear OPS PC accessory slot for SMART PCM modules.
08
VESA mounting
600 x 400 mm M8 pattern, with two pens and magnetic and frame-mounted tool holders.

Specifications

34 specifications
General
Key Features4K UHD (3840 x 2160), 400 nits, HyPr Touch Advanced IR, up to 50 touch points, 8 ms display response, rear OPS slot, two integrated speakers, TAA high secure series
ModelM465-V5-P
TypeInteractive Flat Panel
What's in the Box2 pens, remote control, 5 m USB 2.0 A-to-B cable
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Accuracy1 mm
Touch PointsUp to 50-point multi-touch
Touch Response Time5 ms (typical)
Touch TechnologyInfrared
Viewing Angle178°
Performance
LicenseRoom license and 10 personal licenses
Storage Conditions-20 to 60 °C
Audio
Audio2 x 20 W integrated speakers
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotRear, SMART PCM modules
PortsUSB 3.2 Gen 1 Type-A × 4, USB 3.2 Gen 1 Type-B × 4, USB Type-C × 3, RJ45 LAN × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1, 3.5 mm stereo × 1, USB 2.0 Type-A × 1
Power
Power Consumption90 W (typical)
Standby Power0.2 W
Physical
ColorBlack
Dimensions1507 x 928 x 89 mm
Operating Humidity5% to 80% RH, non-condensing
Operating Temperature5 to 35 °C
Shipping Dimensions1620 x 1165 x 160 mm
Shipping Weight56 kg
VESA Mount600 x 400 mm
Weight40 kg
Compliance
CertificationsTAA, CE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR, HDMI, HDCP
Country of OriginMexico

Questions

Can’t find your answer? Ask on WhatsApp

Is the SMART Board M465-V5-P a 4K display?
Yes. The M465-V5-P has a 3840 x 2160 (4K UHD) LED-backlit display with a 16:9 aspect ratio, a 178° viewing angle and 400 nits brightness. Its refresh rate is 60 Hz.
Does the M465-V5-P have a built-in operating system?
No. The manufacturer's specifications list the operating system as not available for this model. The rear OPS PC accessory slot supports SMART PCM modules, and the VGA and USB-C ports take external video sources.
What touch technology does it use?
It uses HyPr Touch with Advanced IR, which supports up to 50 touch points depending on the operating system, with 1 mm accuracy. Typical touch response time is 5 ms, and simultaneous tool differentiation and Object Awareness are included.
Can it be wall mounted, and what VESA pattern does it use?
Yes. It uses an M8 VESA pattern of 600 x 400 mm. The panel weighs 40 kg, so the wall or mount system must be rated for that load. Procure.ae can arrange delivery and installation across the UAE.
How much power does it use?
Typical power consumption is 90 W, with 0.2 W standby. Input voltage is 100–240 V AC, 50/60 Hz, and the operating range is 5 to 35 °C with 5% to 80% relative humidity, non-condensing.
Can I buy the M465-V5-P in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
