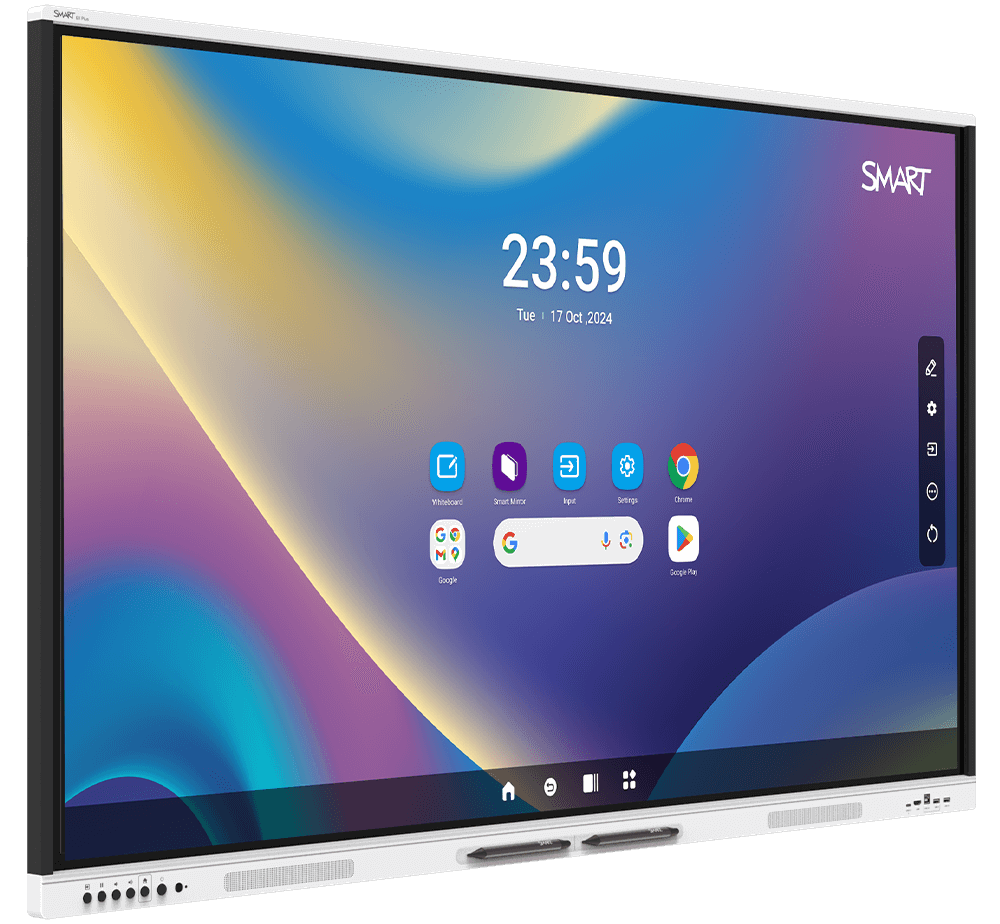

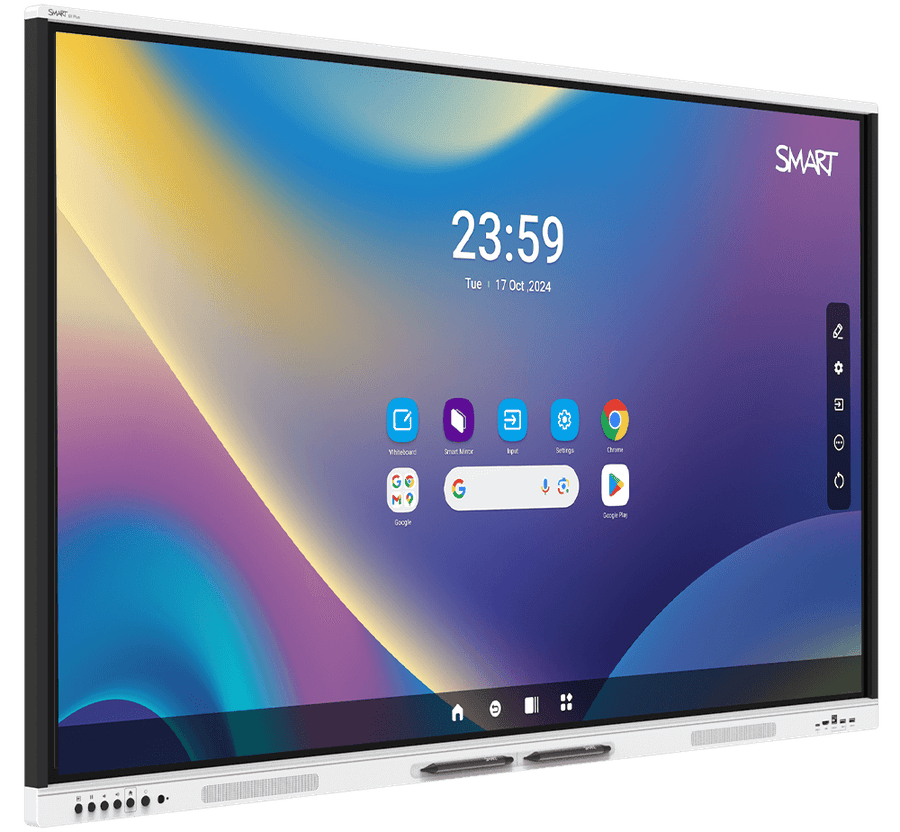

SMART Board GX086-V4 Plus interactive display
The SMART Board GX086-V4 Plus interactive display is a interactive flat panel available in the UAE from Procure.ae.
Transform any classroom or meeting space with the SMART Board GX086-V4 Plus interactive display , designed to deliver seamless collaboration and intuitive touch technology. This 86-inch interactive flat panel offers ultra-high definition 4K resolution, ensuring crystal-clear visuals for presentations, lessons, and digital content. With robust multi-touch capabilities , users can write, draw, and interact with content simultaneously, making teamwork effortless. The SMART Board GX086-V4 Plus is ideal for both educational environments and business settings, supporting diverse connectivity.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 86-Inch 4K UHD Display
- 20-Point Multi-Touch
- Built-In Android OS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-Inch 4K UHD Display
Enjoy breathtaking clarity and vibrant colors with ultra-high definition resolution.
02
20-Point Multi-Touch
Supports simultaneous interaction from multiple users for collaborative activities.
03
Built-In Android OS
Access apps, browser, and annotation tools directly from the intuitive interface.
04
Wireless Screen Sharing
Effortlessly connect devices for real-time content sharing and presentations.
05
Integrated Speakers
Experience clear, immersive audio without the need for external equipment.
06
Anti-Glare Surface
Reduces reflections, ensuring comfortable viewing from any position in the room.
07
Smart Annotation Tools
Write, draw, and highlight on screen with precise, responsive touch.
08
Multiple Connectivity Ports
Includes HDMI, USB-C, and more for versatile device integration.
Specifications
47 specificationsGeneral
Key FeaturesPalm rejection, Pen and touch differentiation, Sensors: Ambient light, Infrared
What's in the BoxPower cable × 1, USB 2.0 A to B cable × 1, USB 3.2 Gen 1 Type-C cable × 1, Pens × 2, Remote control × 1, AAA batteries × 2, Installation instructions × 1, Important information document × 1, Wi-Fi/Bluetooth antennas × 2
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Color Depth10-bit (1.07 billion colours)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy±1 mm
Touch Points50-point multi-touch
Touch Response Time≤ 5 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 14
ProcessorOcta-core
RAM8 GB
Storage64 GB
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort 1.4a × 1
Speaker Output2 × 20 W
Speaker TypeBuilt-in
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 (Gigabit) × 2
HDMI InputsHDMI In (HDMI 2.1) × 3
HDMI OutputsHDMI Out × 1
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOptional
SD Card SlotmicroSD card slot × 1
Serial PortRS-232 × 1
Touch USB PortsTouch USB 3.0 × 2
USB PortsUSB 3.2 Gen 1 × 5
USB-C PortsUSB-C (USB 3.2 Gen 1, DP Alt Mode, audio, touch, 65 W charging)
VGA InputVGA × 1
Wi-FiWi-Fi 6 (802.11ax), 2.4/5 GHz
Power
Power Consumption< 130 W
Standby Power≤ 0.2 W
Physical
Dimensions1950 x 1154 x 88 mm
Operating Humidity20% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2140 x 1315 x 145 mm
Shipping Weight77.3 kg
Surface ProtectionAnti-glare smooth glass
VESA Mount800 x 600 mm
Weight64 kg
Downloads
Manufacturer documents for the SMART Board GX086-V4 Plus interactive display — datasheets, manuals, drawings and certificates.
- Datasheet – SMART Board GX (V4) Plus series – specssbidgxv4plusint
- Datasheet – SMART Board GX (V4) Plus series – specssbidgxv4plusna
- Brochure – SMART Board GX (V4) Plus series – SMART-Board-GX-Plus-series-brochure-en
- Brochure – SMART Board GX (V4) Plus series – SMART-Board-GX-Plus-series-brochure-engb
- User manual – SMART Board GX (V4) Plus series – guidesbidgxv4plususerint
- User manual – SMART Board GX (V4) Plus series – sbidgxv4plus int textlessguide
- Installation guide – SMART Board GX (V4) Plus series
Questions
Can’t find your answer? Ask on WhatsApp
What is the SMART interactive flat panel used for?
Transform any classroom or meeting space with the SMART Board GX086-V4 Plus interactive display , designed to deliver seamless collaboration and intuitive touch technology. This 86-inch interactive flat panel offers ultra-high definition 4K resolution, ensuring crystal-clear visuals for.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 14, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
