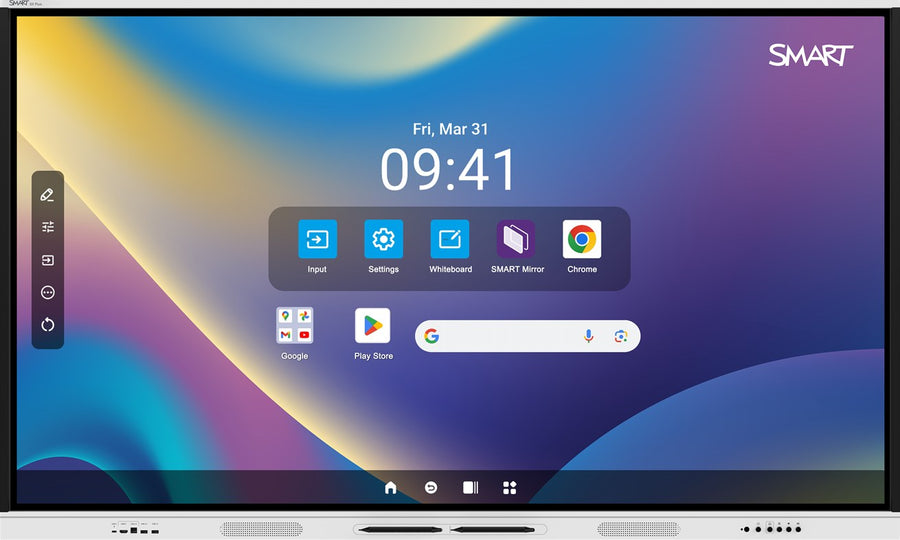

SMART Board GX (V4) Plus 75-inch Interactive Flat Panel – GX175G-V4

Name: SMART Board GX (V4) Plus 75-inch Interactive Flat Panel – GX175G-V4
Brand: SMART
SKU: GX175G-V4
Availability: InStock

The SMART Board GX (V4) Plus 75-inch is a 4K UHD interactive flat panel for classrooms, with 50-point touch and an embedded Android 14 operating system. It includes SMART Notebook and SMART Ink and the panel is listed with TÜV Low Blue Light certification. Procure.ae supplies the GX175G-V4 across the UAE.

The 75-inch panel has a 3840 x 2160 resolution, a 60 Hz refresh rate, 400 nits brightness and a 178° viewing angle, with an 8 ms display response time. Its advanced infrared touch supports up to 50 touch points, with 1 mm accuracy and a typical touch response of 5 ms. Two pens and magnetic, frame-mounted tool holders are included, and the touch supports simultaneous tool differentiation and object awareness. The embedded Android 14 system has an octa-core CPU, 8 GB DDR4 memory and 64 GB storage.

The panel comes with SMART Mirror, SMART Notebook, SMART Product Drivers and SMART Ink, and offers Wi-Fi 6 (802.11ax) with access point mode and Bluetooth 5.2. Its ports include two USB-C ports with DisplayPort alternate mode, five USB 3.2 Gen 1 Type-A ports, a DisplayPort 1.4a port, two RJ45 connectors, VGA, RS-232 and an OPS slot for SMART PCM modules. At 75 inches the panel draws 90 W typical, mounts to VESA M8 800 x 400 mm and weighs 52 kg.

Screen Size

75 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

400 nits

Touch Technology

Advanced infrared

Embedded Android 14
50-point touch
4K UHD display

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

Embedded Android 14

Octa-core CPU, 8 GB DDR4 memory and 64 GB storage.

50-point touch

Advanced infrared touch with 1 mm accuracy and up to 50 touch points.

4K UHD display

3840 x 2160 resolution, 400 nits brightness and a 178° viewing angle.

SMART software included

SMART Notebook, SMART Ink, SMART Product Drivers and SMART Mirror.

Integrated audio

Two integrated 20 W speakers with high fidelity audio.

OPS computing support

SMART PCM modules and an OPS PC accessory slot on the back of the panel.

Wi-Fi 6 connectivity

802.11ax, Wi-Fi access point mode and Bluetooth 5.2.

Low Blue Light listing

TÜV Low Blue Light is listed for the 75-inch model, alongside ENERGY STAR and HDMI.

Specifications

37 specifications

General

Key Features4K UHD, 50-point touch, embedded Android 14, SMART Notebook included, SMART OPS support, 2 x 20 W speakers, Wi-Fi 6, TÜV Low Blue Light

ModelGX175G-V4

TypeInteractive Flat Panel

What's in the Box2 pens, remote control, 5 m USB 2.0 A to B cable, 2 external antennas, embedded Android OS with SMART software

Display

Aspect Ratio16:9

BacklightLED

Brightness400 nits

Refresh Rate60 Hz

Resolution3840 x 2160 (4K UHD)

Response Time8 ms

Screen Size75 inch

Touch Accuracy1 mm

Touch Points50-point multi-touch

Touch Response Time5 ms

Touch TechnologyAdvanced infrared

Viewing Angle178°

Performance

LicenseSMART Notebook and SMART Ink included

Operating SystemAndroid 14

ProcessorOcta-core CPU

RAM8 GB

Storage64 GB

Storage Conditions-10 to 60 °C

Audio

Speaker Output2 x 20 W

Connectivity

BluetoothBluetooth 5.2

EthernetRJ45 1000BASE-T (x2)

Input Voltage100–240 V AC, 50/60 Hz

PortsUSB-C × 2, USB 3.2 Gen 1 Type-A × 5, USB 3.0 Type-B × 2, DisplayPort 1.4a × 1, RJ45 × 2, VGA × 1, RS-232 × 1, S/PDIF optical × 1

Wi-FiWi-Fi 6 (802.11ax)

Power

Power Consumption90 W (typical)

Standby Power0.2 W

Physical

ColorWhite

Dimensions1705 x 1016 x 88 mm (W x H x D)

Operating Humidity20% to 80% RH, non-condensing

Operating Temperature0 to 40 °C

VESA Mount800 x 400 mm

Weight52 kg

Compliance

CertificationsCE, UKCA, ENERGY STAR, HDMI, HDCP, TÜV Low Blue Light

Downloads

Manufacturer documents for the SMART Board GX (V4) Plus 75-inch Interactive Flat Panel – GX175G-V4 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What are the main specifications of the SMART Board GX175G-V4?

It is a 75-inch, 16:9 interactive flat panel with 3840 x 2160 (4K UHD) resolution, a 60 Hz refresh rate, 400 nits brightness and an embedded Android 14 operating system. It has an octa-core CPU, 8 GB DDR4 memory and 64 GB storage.

Does the GX175G-V4 come with software?

Yes. The manufacturer lists SMART Notebook, SMART Ink, SMART Product Drivers and SMART Mirror as included, along with the embedded Android operating system. The panel also receives over-the-air updates, according to the manufacturer.

Can the GX175G-V4 be wall mounted?

Yes, the panel has VESA M8 mounting at 800 x 400 mm. The manufacturer's specifications do not list a wall-mount bracket among the included items, so confirm the mounting kit with Procure.ae before installation.

Can I connect a laptop to the GX175G-V4?

Yes. A USB-C port with DisplayPort alternate mode carries 4K at 60 Hz video, touch and digital audio. A DisplayPort 1.4a port and a VGA input cover other sources, and two RJ45 ports support network connection.

How many touch points does the GX175G-V4 support?

It supports up to 50 touch points, depending on the operating system. Touch accuracy is 1 mm and the typical touch response time is 5 ms, with simultaneous tool differentiation and object awareness.
