SMARTInteractive Flat PanelsSKU SBID-6086S-V3

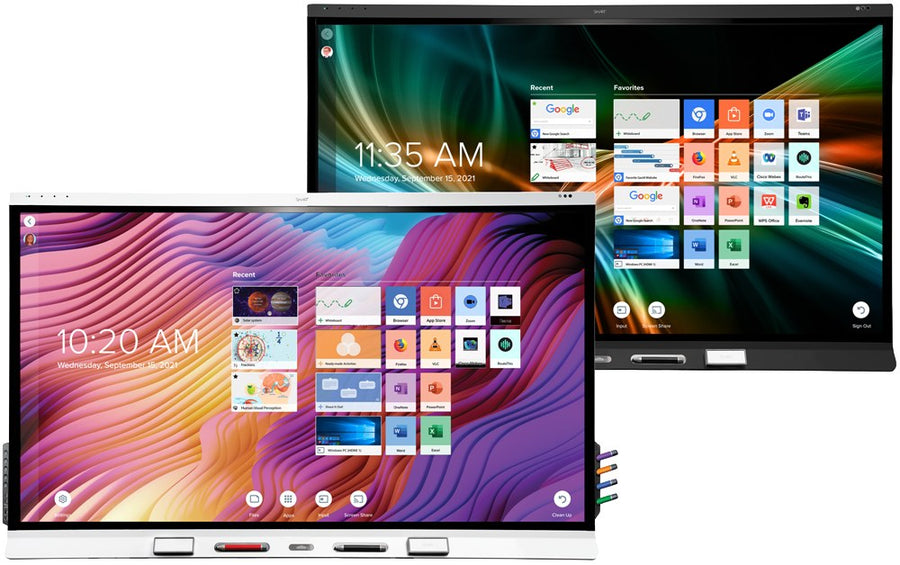

SMART Board 6000S V3 86-inch Interactive Flat Panel – SBID-6086S-V3
The SMART Board 6000S V3 (SBID-6086S-V3) is a 86-inch 4K UHD interactive flat panel for classrooms and meeting rooms. It has a 16:9 display of at least 350 nits, up to 40 touch points with HyPr Touch with InGlass, and an iQ built-in Android 11 experience. Procure.ae supplies the SBID-6086S-V3 across the UAE, with delivery and installation.
The SBID-6086S-V3 has a 86-inch 4K UHD LED display with a resolution of 3840 x 2160, a 16:9 aspect ratio, a 60 Hz refresh rate and a 178° viewing angle. The manufacturer rates maximum brightness at 350 nits or more, and the response time is 8 ms or less. The fully heat-tempered anti-glare glass resists smudges and fingerprints. HyPr Touch with InGlass supports up to 40 touch points, depending on the operating system, with ±1 mm accuracy. Touch features include Pen ID, Object Awareness, Silktouch and Pressure Sensitive Ink.
The panel runs an iQ built-in Android 11 experience with 6 GB memory and 32 GB storage, and includes SMART Notebook, SMART Ink and SMART Product Drivers. A rear OPS slot accepts optional SMART PCM computing modules for devices up to 60 W. Connections include three HDMI 2.1 ports, two USB-C ports for 4K video and touch, RJ45 Ethernet and dual-band Wi-Fi. A VESA 600 x 400 mm mount and a WM-SBID-200 wall mount are included. Procure.ae is an authorised reseller of SMART products in the UAE.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
≥ 350 nits
Touch Technology
HyPr Touch with InGlass
- 4K UHD display
- Touch with InGlass
- iQ built-in Android
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution at 16:9 with a 60 Hz refresh rate and a 178° viewing angle.
02
Touch with InGlass
HyPr Touch technology with up to 40 touch points, depending on the operating system, and ±1 mm accuracy.
03
iQ built-in Android
Android 11 with 6 GB memory and 32 GB storage, plus SMART Notebook included.
04
Built-in audio
Two 20 W speakers and an integrated linear four-microphone array.
05
Connectivity options
Three HDMI 2.1 ports, two USB-C ports, RJ45 Ethernet and Wi-Fi 802.11 a/b/g/n/ac.
06
Sign-in and tools
NFC reader and writer, two pens, two erasers and a remote control are included.
07
OPS slot
A rear slot accepts SMART PCM computing modules for devices rated up to 60 W.
08
Wall mounting
VESA 600 x 400 mm (M8) pattern with a WM-SBID-200 wall mount included.
Specifications
40 specificationsGeneral
Key FeaturesHyPr Touch with InGlass, Up to 40 touch points, iQ built-in Android, SMART Notebook included, NFC sign-in, Four-microphone array, OPS slot, Automatic OTA updates
ModelSBID-6086S-V3
TypeInteractive Flat Panel
What's in the Box2 pens (red and black), 2 erasers, remote control, USB cable, WM-SBID-200 wall mount, 3 antennae, 2 SMART ID cards
Display
Aspect Ratio16:9
BacklightLED
Brightness≥ 350 nits
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time≤ 8 ms
Screen Size86 inch
Touch Accuracy±1 mm
Touch PointsUp to 40-point multi-touch (OS dependent)
Touch TechnologyHyPr Touch with InGlass
Viewing Angle178°
Performance
LicenseSMART Notebook, SMART Ink and SMART Product Drivers included
Operating SystemAndroid 11
RAM6 GB
Storage32 GB
Audio
MicrophoneIntegrated linear four-microphone array
Speaker Output2 × 20 W
Connectivity
BluetoothBluetooth 5.0 (dual mode)
EthernetRJ45 × 2, 1000baseT
HDMI Inputs3 (HDMI 2.1, HDCP 1.4 and 2.3)
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 at rear, for devices up to 60 W
PortsHDMI 2.1 × 3 (HDCP 1.4 and 2.3), HDMI 2.1 × 1, USB-C × 2, USB 3.0 Type-A × 3, USB 3.0 Type-B × 3, USB 2.0 Type-A × 1, USB 2.0 Type-B × 1, RJ45 × 2, VGA × 1, RS-232 × 1, S/PDIF × 1
Serial PortRS-232 × 1
USB-C Ports2 (4K at 60 Hz, DisplayPort 1.2, touch)
Wi-Fi802.11 a/b/g/n/ac, 2 × 2 MIMO, 2.4 and 5 GHz
Power
Power Consumption161 W (typical)
Standby Power0.4 W
Physical
Dimensions2005 x 1221 x 124 mm
MountingWM-SBID-200 wall mount included
Operating Humidity5% to 80% RH, non-condensing
Operating Temperature5 to 35 °C
VESA Mount600 × 400 mm (M8)
Weight86 kg
Compliance
CertificationsCE, UKCA, LVD, CB, EMCD, RED, REACH, RoHS, WEEE, ENERGY STAR
WarrantySMART Assure (terms vary by region)
Downloads
Manufacturer documents for the SMART Board 6000S V3 86-inch Interactive Flat Panel – SBID-6086S-V3 — datasheets, manuals, drawings and certificates.
- Datasheet – SMART Board 6000S (V3) series – specssbid6000s-v3-p
- Datasheet – SMART Board 6000S (V3) series – specssbid6000s-v3
- Datasheet – SMART Board 6000S (V3) series – specssbid6500s-v3-p-taa
- User manual – SMART Board 6000S (V3) series – guidesbid6000suser
- User manual – SMART Board 6000S (V3) series – sbid6000s-v3textlessguide
Questions
Can’t find your answer? Ask on WhatsApp
What resolution, brightness and response time does the SBID-6086S-V3 have?
The SBID-6086S-V3 has a 4K UHD panel at 3840 x 2160 resolution with a 16:9 aspect ratio, a 60 Hz refresh rate and a 178° viewing angle. Brightness is rated at 350 nits or more, and the response time is 8 ms or less.
Does the SBID-6086S-V3 support multi-touch and pen input?
Yes. It supports up to 40 touch points, depending on the operating system, with HyPr Touch with InGlass technology and ±1 mm accuracy. Two pens and two erasers are included, and the touch features include Pen ID, Object Awareness and Pressure Sensitive Ink.
Does the SBID-6086S-V3 run its own apps without a computer?
Yes. It has an iQ built-in Android 11 experience with 6 GB memory, 32 GB storage, file and app libraries, and Google Drive and OneDrive access. SMART Notebook, SMART Ink and SMART Product Drivers are included, and updates are delivered automatically over the air.
Can the SBID-6086S-V3 be wall-mounted, and what mount does it need?
Yes. It uses a VESA 600 x 400 mm pattern with M8 fixings, and a WM-SBID-200 wall mount is included. The panel measures 2005 x 1221 x 124 mm (W x H x D) and weighs 86 kg, so the wall structure should be checked for that load. Procure.ae can advise on installation across the UAE.
Which ports does the SBID-6086S-V3 have for laptops and PC modules?
The panel has three HDMI 2.1 ports with HDCP 1.4 and 2.3 support, two USB-C ports that carry 4K at 60 Hz, DisplayPort 1.2 and touch, and a rear OPS slot for devices up to 60 W. RJ45 Ethernet, RS-232, VGA and USB 3.0 ports are also fitted.
