VSYS VMAE-C012 Spring-Assisted Single Monitor Arm for 17"–32" Monitors, 9 kg
- Model: VMAE-C012
- SKU: VMAE-C012
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VMAE-C012 is a spring-assisted single monitor arm for 17"–32" screens weighing 2 to 9 kg, clamping to the desk to free the footprint a factory stand occupies, available in the UAE from Procure.ae. A standard monitor stand takes roughly a keyboard's worth... See More
The VSYS VMAE-C012 is a spring-assisted single monitor arm for 17"–32" screens weighing 2 to 9 kg, clamping to the desk to free the footprint a factory stand occupies, available in the UAE from Procure.ae.

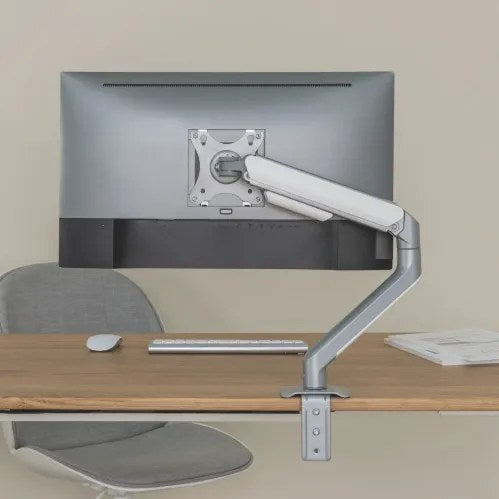

A standard monitor stand takes roughly a keyboard's worth of desk depth and fixes the screen at one height, usually below eye level. Over a full shift that combination is what produces neck and shoulder complaints in workstation assessments. The VMAE-C012 moves a single screen onto a clamped arm: the desk surface underneath is recovered for paperwork or a laptop, and the panel sits where the user's eye line actually is rather than where the stand happened to put it.
A mechanical spring carries the panel's weight, and one tension screw tunes that force anywhere across the 2 to 9 kg range, so the screen glides and then holds without drifting. The arm reaches up to 453 mm from its base and moves through a 133 mm to 428 mm height range. It tilts plus or minus 55 degrees, swivels plus or minus 90 degrees and rotates plus or minus 180 degrees between landscape and portrait, with a 180 degree rotation stop that prevents it swinging into a wall or partition.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Spring counterbalance carries the monitor's weight, so height and angle change by hand with no knobs to slacken and retighten.
- Single tension adjustment tunes the arm anywhere from 2 kg to 9 kg, so it stays balanced if the screen is swapped later.
- Reach of up to 453 mm and a 133 mm to 428 mm height range cover both a pulled-forward reading position and a pushed-back eye-level one.
- Tilt plus or minus 55 degrees, swivel plus or minus 90 degrees and rotation plus or minus 180 degrees for landscape or portrait use.

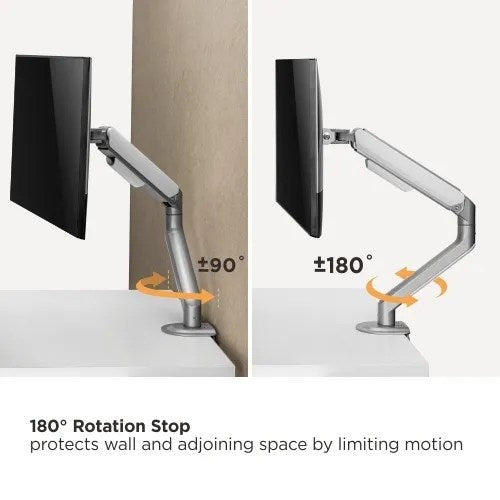

- 180 degree rotation stop prevents the screen swinging into a wall, partition or the next desk in a back-to-back layout.

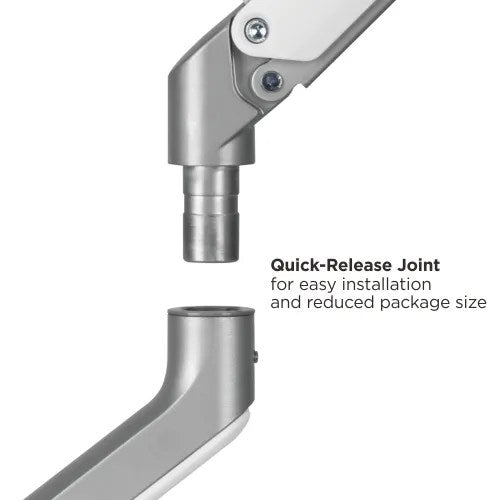

- Quick-release joint separates the arm from the base, which speeds installation and reduces carton size on volume orders.
- Desk clamp for surfaces 10 to 80 mm thick and a grommet mount for 10 to 40 mm both ship in the box, so no extra parts are needed.

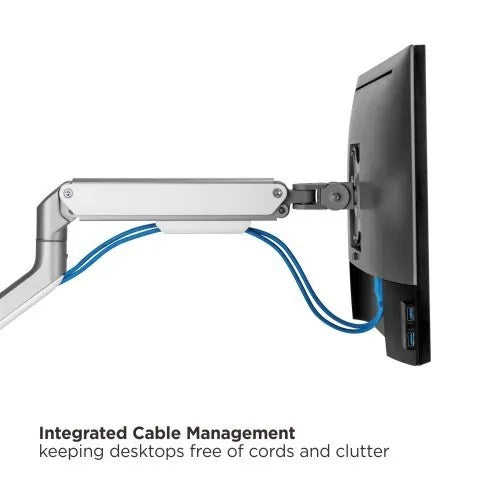

- Cable routing along the arm keeps the lead tidy and protected as the screen moves.
- Steel and aluminium construction with a powder-coated finish, RoHS compliant.

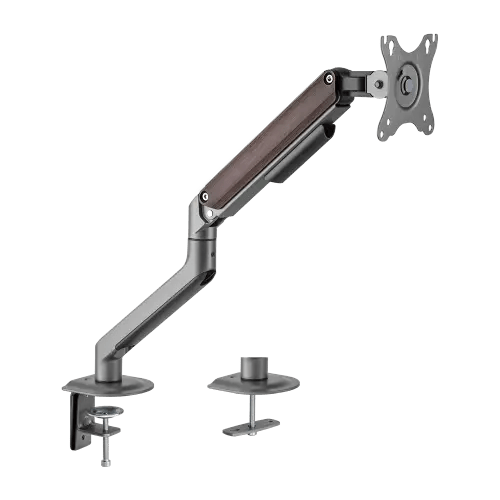

- Three finishes - Space Grey, Matte Silver, and Space Grey with wood - to match office and home interiors.

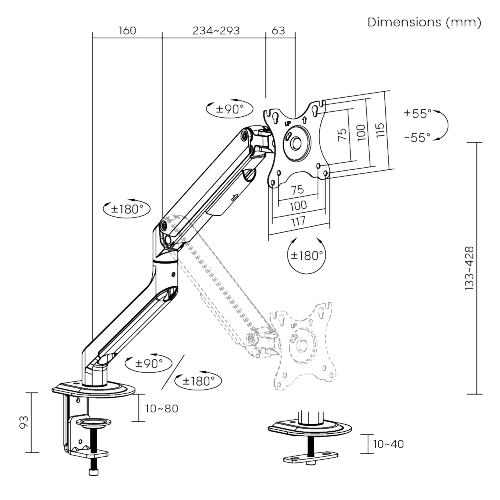

Technical Specifications
| Configuration | Single monitor |
| Monitor size range | 17" to 32" |
| Weight capacity | 2 kg to 9 kg |

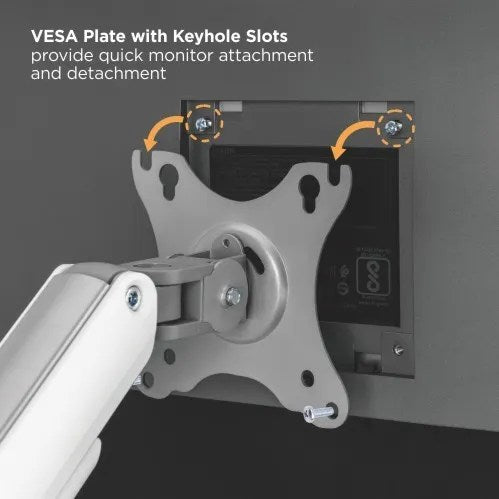

| VESA compatibility | 75x75 mm and 100x100 mm |
| Extension | Up to 453 mm from the base |
| Height range | 133 mm to 428 mm |
| Tilt | Plus or minus 55 degrees |
| Swivel | Plus or minus 90 degrees |
| Rotation | Plus or minus 180 degrees, with rotation stop |
| Mounting | Desk clamp 10-80 mm, grommet mount 10-40 mm |
| Material | Steel and aluminium, powder-coated |
| Finishes | Space Grey, Matte Silver, Space Grey and wood |
| Certifications | RoHS compliant |
| In the box | Arm, detachable VESA plate, desk clamp, grommet mount, installation instructions |
Ideal for: hot-desking and agile corporate offices, reception and front-of-house counters, single-screen operator and helpdesk stations, university and school computer labs, clinic and consultation desks, and home-office fit-outs across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VMAE-C012 Spring-Assisted Single Monitor Arm for 17"–32" Monitors, 9 kg |
| Height Adjustment Type | Spring counterbalance with single tension adjustment |
| Mounting Type | Desk clamp 10-80mm or grommet mount 10-40mm, both supplied |
| Screen Size Support | 17 inch to 32 inch |
| Product Type | Spring-assisted single monitor arm |
| Screen Size Range | 17 inch to 32 inch |
| Load Capacity | 2 kg to 9 kg |
| VESA Compatibility | 75x75mm and 100x100mm |
| Movement | Spring-assisted height, tilt, swivel and rotation with 180 degree rotation stop |
| Tilt | Plus or minus 55 degrees |
| Swivel | Plus or minus 90 degrees |
| Rotation | Plus or minus 180 degrees with rotation stop |
| Extension Range | Up to 453mm from the base |
| Height Range | 133mm to 428mm |
| Material and Finish | Steel and aluminium with powder-coated finish |
| Available Finishes | Space Grey, Matte Silver, Space Grey and wood |
| Mounting Interface | Detachable VESA plate, 75x75mm and 100x100mm |
| Cable Management | Integrated cable routing along the arm |
| Testing and Certification | RoHS compliant |
| In the Box | Arm, detachable VESA plate, desk clamp, grommet mount, installation instructions |
| MPN | VMAE-C012 |
| Model | VMAE-C012 |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VMAE-C012 in the UAE?
Procure.ae supplies the VSYS VMAE-C012 across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
What monitors does the VMAE-C012 fit?
Single screens from 17" to 32", including curved panels, weighing between 2 kg and 9 kg, using either a 75x75 mm or 100x100 mm VESA pattern. Those two patterns cover the overwhelming majority of office monitors, so most Dell, HP, LG, Samsung, ASUS and Lenovo models mount directly.
Will it work on my desk without drilling?
Yes. The included C-clamp grips desk surfaces from 10 mm to 80 mm thick with no modification to the furniture. If the desk already has a cable grommet, the supplied grommet mount fits openings in 10 mm to 40 mm surfaces instead. Both are in the box.
Does the screen drift down over time?
It should not. The spring is tensioned to the specific weight of your monitor using a single adjustment, so the counterbalance matches the load and the panel holds at whatever height you set. If you later fit a heavier or lighter screen, re-tension the spring rather than replacing the arm.
Can I order these in quantity for an office fit-out?
Yes. The quick-release joint keeps the carton compact, which lowers freight on volume orders. Send Procure.ae your quantity, preferred finish and delivery site and we will return a procurement-ready quotation for the UAE or wider GCC.
Request a quote: WhatsApp wa.me/97145465041 or email info@procure.ae.
