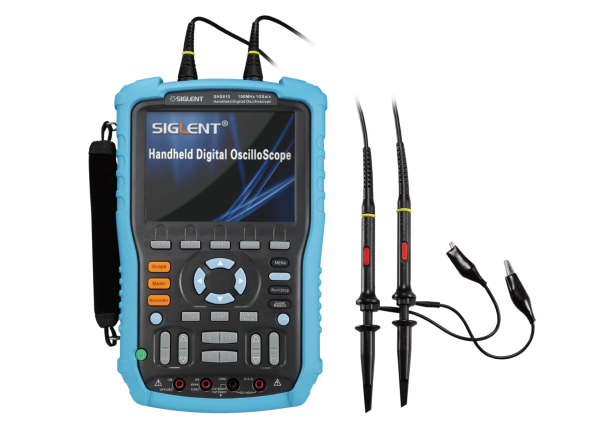

Siglent SHS806 60MHz Handheld Digital Oscilloscope

PRODUCT OVERVIEW

Mobile 2 channel handheld DSO with 60 MHz bandwidth, 1 GSa/s and 2 Mpts memory. Combines oscilloscope, multimeter and recorder (including TrendPlot and waveform recorder) in one unit.

hese Siglent SHS800 / SHS1000 oscilloscopes are entry level-devices at affordable pricing without compromising on quality. The low pricing level results from the large amount of units sold as well as substantial economies. They are equipped with well designed and easy to use control panels offering comprehensive ease-of-use functions for all measuring tasks. The menu navigation is intuitive and available in several languages.

The particularly large TFT color displays are very easy to read. Thanks to an intelligent system for displaying or masking information, the largest possible area is always available for displaying signals. The signal curves, the FFT display, and other functions can be shown simultaneously on the display.

Key Features

High-performance oscilloscope

• Bandwidths: 60 MHz, 100 MHz, 150 MHz, 200 MHz; Memory depth: 2 Mpts
• Real-time sampling rate: 1 GSa/s; Equivalent sampling rate: 50 GSa/s

Data recorder function

• 7M internal storage, up to18 hours recording time
• USB port, up to 3000 hours recording time
• Record, replay and zoom functions supported

High precision multimeter

• 6000 count display
• Accurate measurement of DCV, ACV, DCI, ACI
• Accurate measurement of Resistance, Diode, Capacitance, Continuity

Trend plot

• 32 measurement trend plot analyzer
• Scope: 800k points capacity, more than 24 hours recording time
• Meter: 1.2M points capacity 9320 hours recording time at 0.05Sa/s
