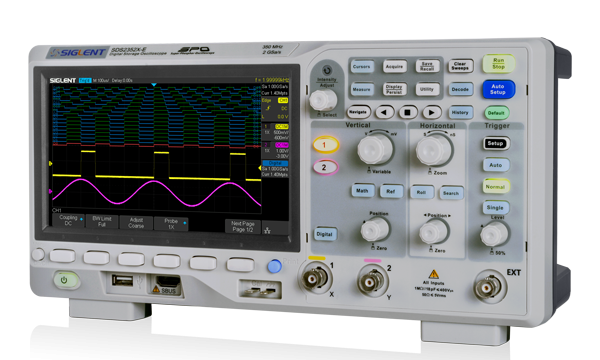

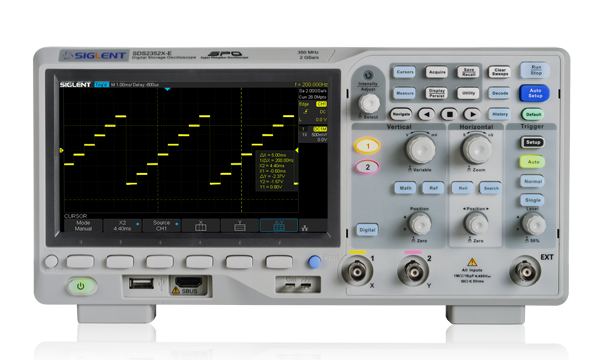

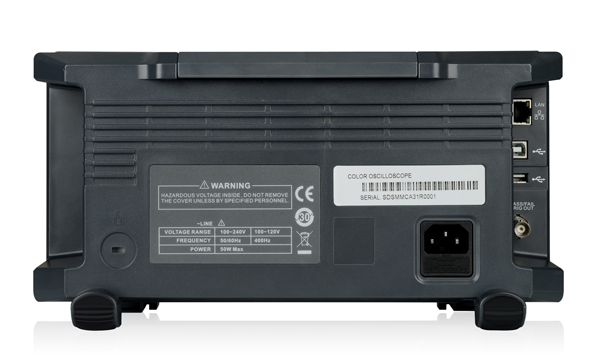

Siglent SDS2352X-E 350MHz SPO Digital Oscilloscope

PRODUCT OVERVIW

The Siglent SDS2000X-E series of oscilloscopes are a 2-channel higher performance version of the Siglent SDS1202X-E model. They come in available bandwidths of 200 MHz and 350 MHz and a sampling rate of up to 2 GSa/s. With the faster sample rates and record lengths up to 28 MPts, the SDS2000X-E scopes allow for excellent signal fidelity and recording / analyzing signals up to 350 MHz (SDS2352X-E).

Other features include AWG (optional SAG1021) and MSO (requires optional SLA1016 Logic Probe and SLA2000X-E-16LA Firmware Key).

Bode Plot capability is available using the optional SAG1021 generator or any Siglent SDG-series of function generator.

With its dual-mode display allowing for intensity-grading or color-‘temperature’ display mode, the SDS2000X-E series of oscilloscopes represents one of the most powerful sub-$1000 oscilloscopes available today.

Key Features

• Intelligent triggers:Edge, Slope, Pulse Width, Window, Runt, Interval,Time out (Dropout), Pattern
• Serial bus triggering and decoding (standard), supports protocols IIC, SPI,
  UART, CAN, LIN
• Low background noise with voltage scales from 500μV/div to 10V/div
• 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
• History waveform record (history) function (maximum recorded waveform length is 80,000 frames)
• 1 Mpt FFT
• Math and measurement functions use all sampled data points in memory (up to 28 Mpts)
• Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)
• Large 7 inch TFT -LCD display with 800 * 480 resolution
• Supports Multi-language display and embedded online help
