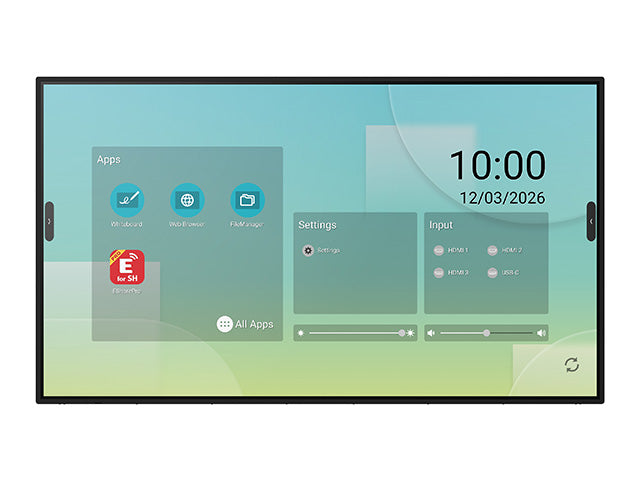

Sharp PN-LB653-WIFI 65-inch interactive flat panel with Wi-Fi and infrared touchSharp
Interactive Flat PanelsSKU PN-LB653-WIFI

Sharp PN-LB Series Wi-Fi 65-inch Interactive Flat Panel – PN-LB653-WIFI

The Sharp PN-LB653-WIFI is a 65-inch 4K UHD interactive flat panel with infrared touch, up to 40 touch points and built-in Wi-Fi and Bluetooth 5.3 for wireless networking. It suits classrooms, meeting rooms and corporate collaboration spaces. Procure.ae supplies the Sharp PN-LB653-WIFI across the UAE.

The PN-LB653-WIFI uses a 65-inch IPS panel with a 3840 x 2160 native resolution, 500 cd/m² brightness, a 1,500:1 typical contrast ratio and an 8 ms grey-to-grey response time. Its infrared touch supports real multi-touch up to 40 touches, with finger, glove, stylus and dual-tip pen input, plus Windows Ink and palm rejection. The Android 14 system on chip, with 8 GB RAM and 64 GB storage, runs Google Play Store apps and includes a whiteboard, annotation overlay and E-Share wireless screen sharing. The USB-C 1 port delivers up to 100 W.

The PN-LB653-WIFI fits meeting rooms, classrooms, lecture halls and corporate boardrooms. Its built-in wireless adapter supports IEEE 802.11 a/b/g/n/ac/ax with WPA3 Enterprise, which suits network installations without a separate dongle. The panel also supports NaViSet Administrator 2 remote management, RS-232C and LAN control, and a Q-Sys plug-in. The non-Wi-Fi PN-LB653 uses an optional Wi-Fi dongle instead.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
  • Infrared multi-touch
  • Built-in Wi-Fi and Bluetooth
  • 4K UHD IPS panel
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Infrared multi-touch
Real multi-touch up to 40 touches with finger, glove, stylus and dual-tip pen input.
02
Built-in Wi-Fi and Bluetooth
IEEE 802.11 a/b/g/n/ac/ax Wi-Fi with WPA3 Enterprise and Bluetooth 5.3.
03
4K UHD IPS panel
3840 x 2160 native resolution, 500 cd/m² brightness and 1,500:1 typical contrast ratio.
04
Android 14 platform
Android 14 system on chip with 8 GB RAM and 64 GB storage, Google EDLA certified.
05
Pen and whiteboard tools
Pen-on-Paper writing, built-in whiteboard, annotation overlay mode and Windows Ink support.
06
USB-C 100 W input
USB-C 1 port carries video, touch and USB data and delivers up to 100 W.
07
E-Share screen sharing
Built-in wireless screen sharing via E-Share for presenting from personal devices.
08
Enterprise remote management
NaViSet Administrator 2 management, HDMI CEC control and SNMP support.

Specifications

37 specifications
General
Key FeaturesInfrared touch, 40-point multi-touch, Android 14, Google EDLA certified, 100 W USB-C, built-in whiteboard, E-Share screen sharing, OPS slot
ModelPN-LB653-WIFI
TypeInteractive Flat Panel
What's in the BoxDisplay, 2 passive styluses, remote control, power cable, 300 cm USB cable, 2 AAA batteries, cable clamps, setup manual, wireless adapter
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size16 mm (symmetrical)
Brightness500 nits
Contrast Ratio1,500:1
OrientationLandscape; Portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points40-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorOcta-core Arm Cortex-A53 2 GHz + Cortex-A73 2.3 GHz
RAM8 GB
Storage64 GB
Audio
Speaker Output2 × 15 W
Connectivity
BluetoothBluetooth 5.3
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS (NEC / Intel standard)
PortsHDMI In × 3, HDMI Out × 1, USB-C × 2 (100 W and 7.5 W), USB-A × 3, USB-B × 1, LAN × 2, RS-232C × 1, 3.5 mm audio out
Wi-FiIEEE 802.11 a/b/g/n/ac/ax; WPA3 Enterprise
Power
Power Consumption140 W (typical)
Physical
Dimensions1487 x 862 x 87 mm
Duty Cycle18/7
Operating Humidity20% to 80% RH
Operating Temperature5 to 35 °C
VESA Mount600 x 400 mm
Weight35 kg
Compliance
CertificationsCE, EMC Class B, RoHS, UKCA, EnergyStar 8.0
Warranty3 years (incl. backlight)

Questions

Can’t find your answer? Ask on WhatsApp

Is the Sharp PN-LB653-WIFI different from the PN-LB653?
Yes. The PN-LB653-WIFI includes a built-in wireless adapter with Bluetooth 5.3 and IEEE 802.11 a/b/g/n/ac/ax Wi-Fi. The PN-LB653 uses an optional Wi-Fi dongle for wireless networking. Other specifications are the same.
Is the Sharp PN-LB653-WIFI suitable for classrooms?
Yes. It is a 65-inch 4K interactive flat panel with infrared touch, a built-in whiteboard and Android 14. Its 16:9 display and 40-point touch suit teaching and group work in classrooms and lecture halls.
Does the PN-LB653-WIFI work with Windows and Mac?
Yes. The touch works with Windows, Linux, Android, Raspberry Pi and Mac OS. On Mac OS the touch is single-touch only. The panel connects to a PC over USB HID and to a laptop over HDMI or USB-C.
What mounting does the PN-LB653-WIFI need?
It uses a 600 x 400 mm VESA pattern with M8 holes. The panel measures 1487 x 862 x 87 mm and weighs 35 kg, so the wall mount or stand must be rated for that load. Procure.ae can advise on suitable mounting options.
How many touches does the PN-LB653-WIFI support?
Up to 40 touches. The infrared touch is real multi-touch, supports finger, glove, stylus and dual-tip pen input, and includes palm rejection and Windows Ink. Palm rejection stops a resting hand from registering as input while a pen is in use.
Can I buy the Sharp PN-LB653-WIFI in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
