SharpInteractive Flat PanelsSKU PN-LB863

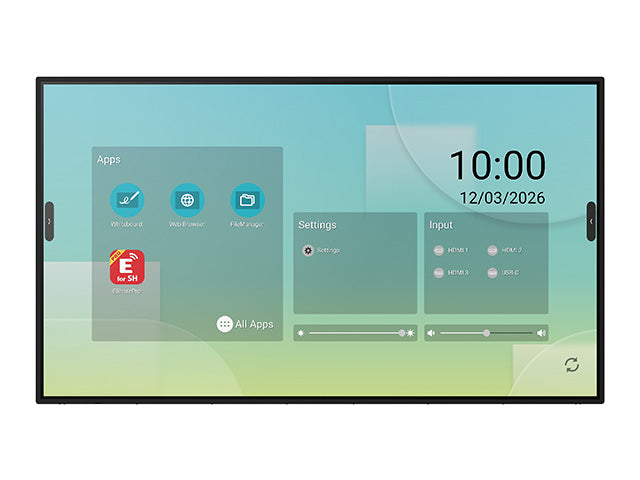

Sharp PN-LB Series 86-inch Interactive Flat Panel – PN-LB863
The Sharp PN-LB863 is an 86-inch 4K UHD interactive flat panel with infrared touch, up to 40 simultaneous touch points and Android 14 built in. It suits large classrooms, boardrooms and corporate collaboration spaces. Procure.ae supplies the Sharp PN-LB863 across the UAE.
The PN-LB863 uses an 86-inch IPS panel with a 3840 x 2160 native resolution, 500 cd/m² brightness, a 1,500:1 typical contrast ratio and an 8 ms grey-to-grey response time. Its infrared touch supports real multi-touch up to 40 touches, with finger, glove, stylus and dual-tip pen input, plus Windows Ink and palm rejection. The built-in Android 14 system on chip, with 8 GB RAM and 64 GB storage, runs apps from the Google Play Store and includes a whiteboard, annotation overlay and E-Share wireless screen sharing. The USB-C 1 port delivers up to 100 W.
The PN-LB863 fits large lecture halls, boardrooms and open collaboration areas. It is designed for landscape orientation only, uses an 800 x 600 mm VESA mount and draws about 245 W typically. It supports NaViSet Administrator 2 remote management, RS-232C and LAN control, HDMI CEC and a scheduled timer. The standard model uses an optional Wi-Fi dongle for wireless networking.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
- Infrared multi-touch
- 4K UHD IPS panel
- Android 14 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared multi-touch
Real multi-touch up to 40 touches with finger, glove, stylus and dual-tip pen input.
02
4K UHD IPS panel
3840 x 2160 native resolution, 500 cd/m² brightness and 1,500:1 typical contrast ratio.
03
Android 14 platform
Android 14 system on chip with 8 GB RAM and 64 GB storage, Google EDLA certified.
04
Pen and whiteboard tools
Pen-on-Paper writing, built-in whiteboard, annotation overlay mode and Windows Ink support.
05
USB-C 100 W input
USB-C 1 port carries video, touch and USB data and delivers up to 100 W.
06
E-Share screen sharing
Built-in wireless screen sharing via E-Share for presenting from personal devices.
07
Ambient light sensing
Integrated ambient light sensor with programmable triggered actions and under 0.5 W ECO standby.
08
Enterprise remote management
NaViSet Administrator 2 management, HDMI CEC control and scheduled timer.
Specifications
36 specificationsGeneral
Key FeaturesInfrared touch, 40-point multi-touch, Android 14, Google EDLA certified, 100 W USB-C, built-in whiteboard, E-Share screen sharing, OPS slot
ModelPN-LB863
TypeInteractive Flat Panel
What's in the BoxDisplay, 2 passive styluses, remote control, power cable, 300 cm USB cable, 2 AAA batteries, cable clamps, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size16 mm (symmetrical)
Brightness500 nits
Contrast Ratio1,500:1
OrientationLandscape
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points40-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 14
ProcessorOcta-core Arm Cortex-A53 2 GHz + Cortex-A73 2.3 GHz
RAM8 GB
Storage64 GB
Audio
Speaker Output2 × 15 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS (NEC / Intel standard)
PortsHDMI In × 3, HDMI Out × 1, USB-C × 2 (100 W and 7.5 W), USB-A × 3, USB-B × 1, LAN × 2, RS-232C × 1, 3.5 mm audio out
Wi-FiOptional Wi-Fi dongle
Power
Power Consumption245 W (typical)
Physical
Dimensions1954 x 1125 x 87 mm
Duty Cycle18/7
Operating Humidity20% to 80% RH
Operating Temperature5 to 35 °C
VESA Mount800 x 600 mm
Weight60 kg
Compliance
CertificationsCE, EMC Class B, RoHS, UKCA, EnergyStar 8.0
Warranty3 years (incl. backlight)
Downloads
Manufacturer documents for the Sharp PN-LB Series 86-inch Interactive Flat Panel – PN-LB863 — datasheets, manuals, drawings and certificates.
- Datasheet – PN-LB863
- Brochure – NEC (covers 64 models)
- Brochure – NEC (covers 96 models)
- User manual – Sharp (covers 18 models)
- User manual – PN-LB Series
- User manual – PN-LB Series
- User manual – Sharp (covers 18 models)
- Installation guide – PN-LB Series
- Drawing – PN-LB Series
- Control protocol (RS232 / LAN) – PN-LB Series
- Control protocol (RS232 / LAN) – PN-LB Series
- Control protocol (RS232 / LAN) – PN-LB Series
- Certificate / compliance – PN-LB Series
- Certificate / compliance – PN-LB Series
Questions
Can’t find your answer? Ask on WhatsApp
Is the Sharp PN-LB863 suitable for large lecture halls?
Yes. The PN-LB863 is an 86-inch 4K interactive flat panel with infrared touch, a built-in whiteboard and Android 14. Its large screen suits lecture halls and boardrooms where many people need to see the content.
Does the Sharp PN-LB863 support portrait orientation?
No. The PN-LB863 is designed for landscape orientation only. The 75-inch PN-LB753 and 65-inch PN-LB653 support both landscape and portrait. Choose the PN-LB753 or PN-LB653 if the room needs a portrait display.
What mounting does the PN-LB863 need?
The PN-LB863 uses an 800 x 600 mm VESA pattern with M8 holes. It measures 1954 x 1125 x 87 mm and weighs 60 kg, so the wall mount or stand must be rated for that load. Procure.ae can advise on suitable mounting options.
Can the PN-LB863 be controlled by a room control system?
Yes. The PN-LB863 has RS-232C and LAN control ports, HDMI CEC and a scheduled timer. It also supports NaViSet Administrator 2 for remote management and a Q-Sys plug-in, so it can be managed alongside other devices in the same room system.
How many touches does the PN-LB863 support?
Up to 40 touches. The infrared touch is real multi-touch, supports finger, glove, stylus and dual-tip pen input, and includes palm rejection and Windows Ink. Palm rejection stops a resting hand from registering as input while a pen is in use.
