SharpDigital SignageSKU PN-M752

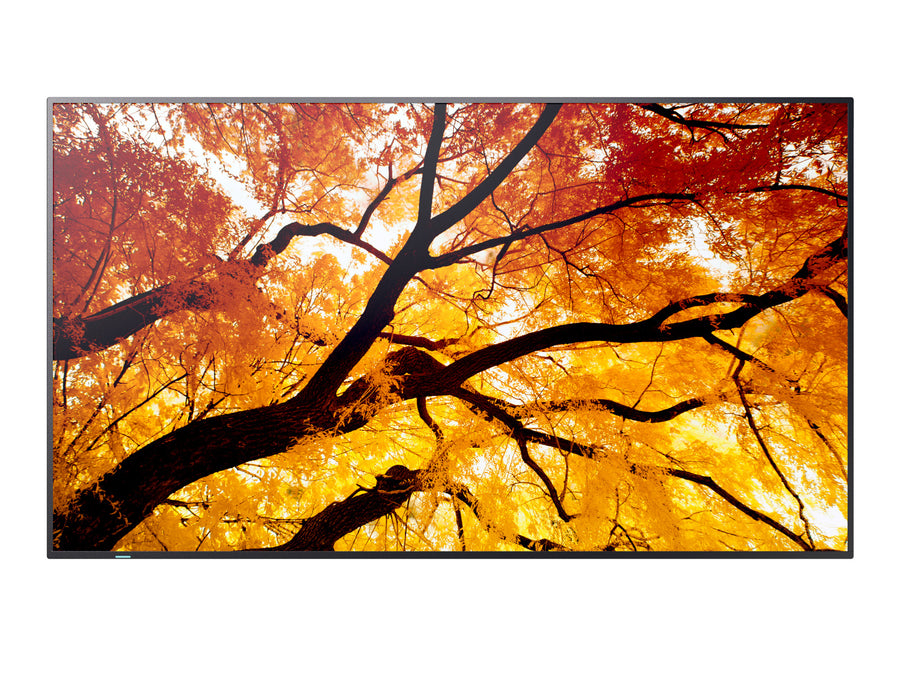

Sharp MultiSync M Series 75-inch 4K UHD Digital Signage Display – PN-M752
The Sharp MultiSync PN-M752 is a 75-inch 4K UHD display for large boardrooms, lobbies and 24/7 signage. It has a 550 nits IPS panel, a USB-C input with 65 W power and emergency notification for public-facing use. Procure.ae supplies the PN-M752 across the UAE.
The PN-M752 has a 3840 x 2160 native resolution on a 75-inch IPS panel rated at 550 nits, with a minimum 8,000:1 contrast ratio and 178° viewing angles. Its 10-bit colour depth covers 72% of the NTSC gamut. The high-haze panel (Pro 25) limits reflections from windows and ceiling lights, and response time is 8 ms at a 60 Hz refresh rate. The display supports 2-split picture-in-picture and scalable picture size. The warranty is 3 years including the backlight.
The M752 fits large boardrooms, lobbies, retail and transport signage, and video wall setups. It supports landscape and portrait orientation and mounts on a 600 x 400 mm VESA pattern. Connectivity covers USB-C with 65 W power, DisplayPort and HDMI loop-through, and an MPi4 or MPi5 compute module slot. It is verified for Cisco collaboration devices, certified for Crestron CCV2 and XiO Cloud, and supports Q-Sys and NaViSet Administrator 2 remote management.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
550 nits
Type
Digital Signage Display
- 4K UHD panel
- High-brightness display
- USB-C input
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 resolution on a 75-inch IPS panel with 8 ms response time.
02
High-brightness display
550 nits with a high-haze finish (Pro 25) for glare control.
03
USB-C input
UHD 60 Hz video with 65 W power and DP alt. 1.2 support.
04
Loop-through outputs
HDMI OUT and DisplayPort OUT for daisy-chaining sources.
05
Computing options
MPi4 or MPi5 compute module slot and Intel SDM up to 66 W.
06
Emergency notification
built-in security feature for public-facing installations.
07
Certified platforms
verified for Cisco collaboration devices and certified for Crestron.
08
Network security
IEEE802.1X LAN support and disable options for hardware buttons and IR.
Specifications
32 specificationsGeneral
Key FeaturesNative 4K UHD, 550 nits IPS, USB-C 65 W input, DP and HDMI loop-through, MPi4/MPi5 and Intel SDM slots, Cisco and Crestron certified, emergency notification, IEEE802.1X LAN
ModelPN-M752
TypeDigital Signage Display
What's in the BoxDisplay, HDMI cable, power cable, remote control, 2x AAA batteries, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size14.3 mm left, right and top, 14.8 mm bottom
Brightness550 nits
Color Depth1.07 billion colours (10-bit)
Color Gamut72% of NTSC
Contrast Ratio8,000:1 (minimum)
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° horizontal / 178° vertical
Connectivity
Ethernet100 Mbit/s
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, HDMI Out × 1, DisplayPort In × 1, DisplayPort Out × 1, USB-C × 2, USB-A × 1, LAN × 1, RS-232C × 1, Audio Out × 1 (3.5 mm)
Serial PortRS-232C, 9600 bps
Power
Power Consumption140 W (shipping)
Physical
Dimensions1682.3 x 961.1 x 83.2 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight38 kg
Compliance
CertificationsCE, EMC Class B, Energy Star 8, FCC Class B, REACH, RoHS, UKCA, UL/C-UL or CSA
IP RatingIP5x front, IP2x back
Security FeaturesDisable hardware buttons, disable IR, emergency notification, IEEE802.1X (LAN)
Warranty3 years
Downloads
Manufacturer documents for the Sharp MultiSync M Series 75-inch 4K UHD Digital Signage Display – PN-M752 — datasheets, manuals, drawings and certificates.
- Datasheet – PN-M752
- Datasheet – PN-M752
- Brochure – NEC (covers 64 models)
- Brochure – NEC (covers 96 models)
- User manual – Sharp MultiSync M Series / MultiSync P Series
- Drawing – PN-M752
- Control protocol (RS232 / LAN) – Sharp MultiSync M Series / MultiSync P Series
- Control protocol (RS232 / LAN) – Sharp MultiSync M Series / MultiSync P Series
- Certificate / compliance – PN-M752
- Energy label – PN-M752
- Energy label – PN-M752
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the Sharp PN-M752?
The PN-M752 is a 75-inch display with a native 3840 x 2160 resolution (4K UHD) and a 16:9 aspect ratio. It has a 550 nits IPS panel, a 60 Hz refresh rate and an 8 ms response time, suited to large rooms and continuous signage.
Can the PN-M752 be wall mounted?
Yes. The rear has four mounting holes on a 600 x 400 mm VESA pattern with M8 screws. The display weighs 38 kg, so specify a mount rated well above that load. Feet, a trolley, speakers and wall mounts are listed as optional accessories.
Does the PN-M752 work with Cisco or Crestron systems?
Yes. The display is verified for Cisco collaboration devices and certified for Crestron CCV2 and XiO Cloud. It also supports Q-Sys, PJLink, SNMP and AMX NetLinx control for integration into existing room systems.
Can a laptop connect over USB-C on the PN-M752?
Yes. The USB-C input accepts UHD 60 Hz video with DisplayPort alt. mode and delivers up to 65 W of power to a connected laptop, which suits bring-your-own-device meetings. A second USB-C port provides 7.5 W for peripherals.
What are the operating conditions for the PN-M752?
The display operates at 0 to 40 °C and 20% to 80% RH humidity, and it is rated for 24/7 operation. It draws 140 W in shipping mode and runs on 100–240 V AC at 50/60 Hz.
