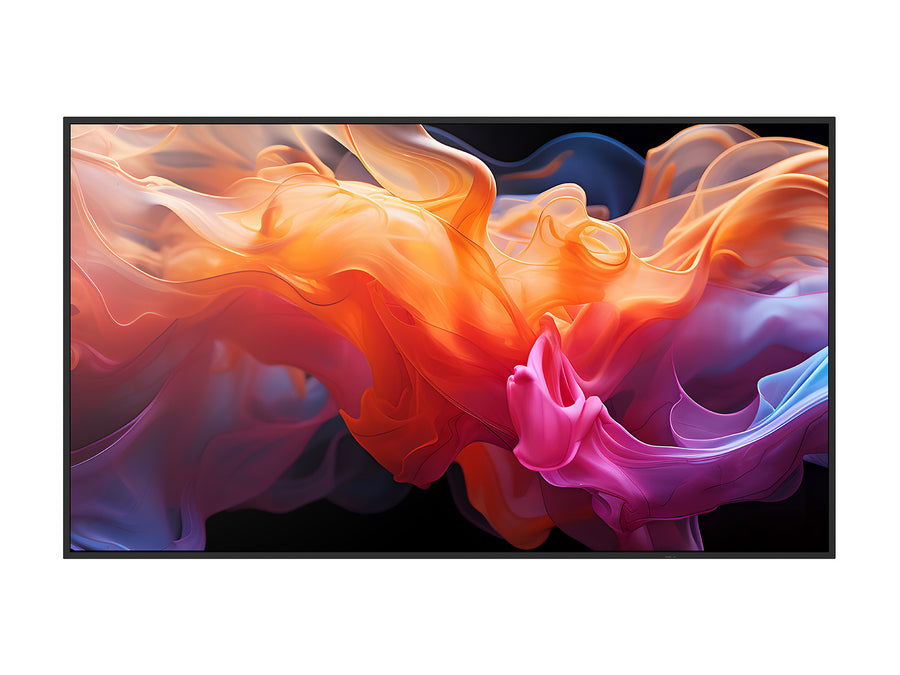

Sharp MultiSync PN-E869 86-inch 4K UHD digital signage displaySharp
Digital SignageSKU PN-E869

Sharp MultiSync E Series 86-inch 4K UHD Digital Signage Display – PN-E869

The Sharp MultiSync PN-E869 is an 86-inch 4K UHD digital signage display for meeting rooms, lobbies and signage loops. It has a 3840 x 2160 IPS panel rated at 350 nits, 16/7 operation and built-in USB media playback. Procure.ae supplies the PN-E869 across the UAE.

The PN-E869 has a 3840 x 2160 native resolution, a 1200:1 typical contrast ratio and 178° horizontal and vertical viewing angles. Its high-haze matte panel (haze level Pro 25) reduces reflections in bright rooms. Response time is 8 ms grey-to-grey at a 60 Hz panel refresh rate. The integrated media player plays MP4, TS and MPG video and MP3 or AAC audio from USB 2.0 storage. The display is rated for 16 hours a day, 7 days a week, and the warranty is 3 years including the backlight.

The PN-E869 suits meeting rooms, reception areas, corridors and digital signage loops in offices, schools and retail spaces. It supports landscape and portrait orientation and mounts on a 600 x 400 mm VESA pattern. Control options include RS-232C at 9600 bps, LAN at 100 Mbit/s, HDMI CEC and HDMI ARC, with NaViSet Administrator 2 for remote management and a built-in scheduler. It is the Essential-tier model in the Sharp range; the M Series adds Intel SDM and Raspberry Pi compute module slots.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
  • Native 4K UHD panel
  • High-haze matte finish
  • USB media playback
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Native 4K UHD panel
3840 x 2160 resolution on an 86-inch IPS panel with 8 ms response time.
02
High-haze matte finish
Pro 25 haze level reduces glare from windows and lighting.
03
USB media playback
plays MP4, TS and MPG video and MP3 or AAC audio from USB storage.
04
HDMI ARC and CEC
two HDMI inputs, audio return on HDMI IN 1 and CEC power control.
05
USB-C video input
UHD 60 Hz input with DP alt. 1.2 and 15 W USB-C power.
06
16/7 operation
rated for 16 hours a day, seven days a week.
07
Remote management
NaViSet Administrator 2, LAN and RS-232C control, built-in scheduler.
08
3-year warranty
covers the backlight for the full period.

Specifications

29 specifications
General
Key FeaturesNative 4K UHD, IPS panel, USB media player, 16/7 operation, HDMI ARC and CEC, NaViSet Administrator 2, Q-Sys plug-in, Pro 25 matte haze panel
ModelPN-E869
TypeDigital Signage Display
What's in the BoxDisplay, remote control, 2x AAA batteries, power cable, USB-C cable, cable clamps, setup manual
Display
Aspect Ratio16:9
BacklightDirect LED
Bezel Size12.9 mm (symmetrical)
Brightness350 nits
Color Depth1.07 billion colours (8-bit + FRC)
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° horizontal / 178° vertical
Connectivity
Ethernet100 Mbit/s
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2, USB-C × 1, USB-A × 1, LAN × 1, RS-232C × 1, Audio Out × 1 (3.5 mm)
Serial PortRS-232C, 9600 bps
Power
Power Consumption245 W (typical)
Physical
Dimensions1927 x 1098 x 60 mm
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight32.5 kg
Compliance
CertificationsCE, FCC Class B, UL/C-UL, UKCA, VCCI, RCM, Energy Star 8
Warranty3 years

Questions

Can’t find your answer? Ask on WhatsApp

What size and resolution is the Sharp PN-E869?
The PN-E869 is an 86-inch display with a native 3840 x 2160 resolution (4K UHD) and a 16:9 aspect ratio. It has a 350 nits IPS panel, a 60 Hz refresh rate and a 1200:1 typical contrast ratio, which suits lit meeting rooms and signage loops.
Can the PN-E869 be wall mounted?
Yes. The rear has four mounting holes on a 600 x 400 mm VESA pattern with M8 screws. The display weighs 32.5 kg, so specify a mount rated above that load. Feet, a trolley and wall mounts are listed as optional accessories.
Does the PN-E869 connect to a video conferencing system?
Yes, through standard inputs. The display has two HDMI inputs and a USB-C video input, so most conferencing codecs and PCs connect directly. CEC support lets the codec switch the panel on and off. A Q-Sys plug-in is also listed for Q-Sys audiovisual systems.
Can the PN-E869 play content without a PC?
Yes. The built-in USB media player plays MP4, TS and MPG video and MP3 or AAC audio stored on USB 2.0 storage, without a connected computer. The built-in scheduler can switch the display on and off at set times.
What are the operating conditions for the PN-E869?
The display operates at 0 to 40 °C and 20% to 80% RH humidity, and is rated for 16 hours a day, 7 days a week. It draws 245 W typical and runs on 100–240 V AC at 50/60 Hz.
Can I buy the PN-E869 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
