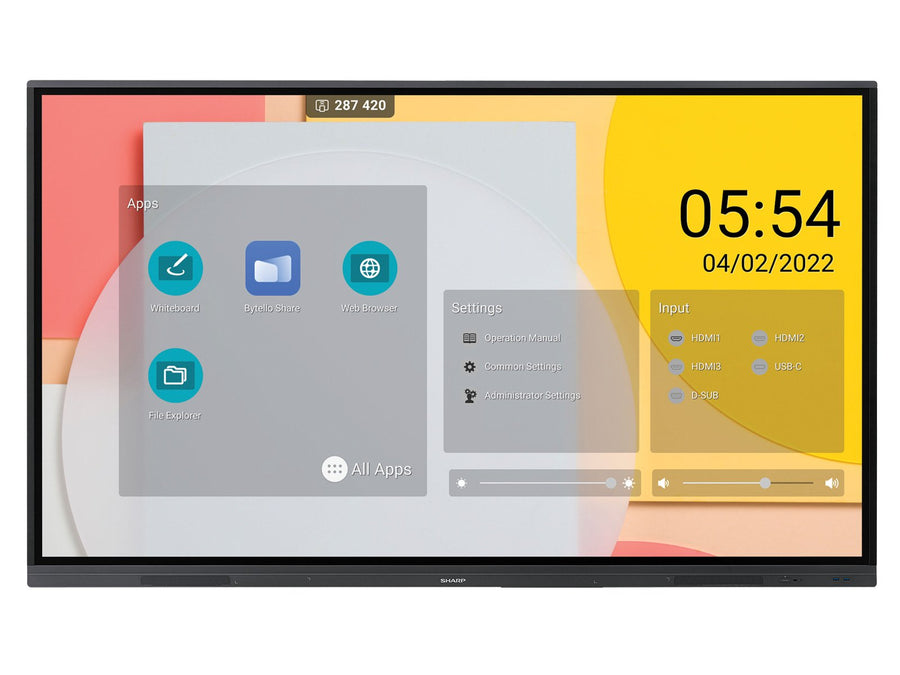

Sharp BIG PAD L2B 65-inch 4K Interactive Flat Panel – PN-L652B

The Sharp BIG PAD L2B PN-L652B is a 65-inch 4K interactive flat panel for meeting rooms, boardrooms and training rooms. It offers 20-point multi-touch on a 3840 x 2160 VA display, with built-in Android 9.0, whiteboard software and a 4000:1 typical contrast ratio. Procure.ae, an authorised reseller, supplies the Sharp PN-L652B across the UAE.

The PN-L652B uses a VA panel with direct LED backlights, 400 nits brightness and a typical 4000:1 contrast ratio, with a 6.5 ms typical response time. Its precision touch technology supports real multi-touch up to 20 touches with finger, glove or dual-tip stylus input, and Windows Ink is included. The single USB-C input provides video and up to 65 W of power. The display has integrated 10 W + 10 W speakers and a built-in Android 9.0 system with 4 GB RAM and 32 GB storage, with whiteboard, annotation overlay mode and wireless screen sharing.

The PN-L652B fits offices, boardrooms, meeting rooms and training rooms. It can be mounted with a 600 x 400 mm VESA pattern (FDMI, M8 screws) and supports landscape and portrait orientation. An OPS slot accepts Intel OPS standard modules, which the manufacturer recommends in Enterprise Pro or Enterprise Ultra form. Integration features include NaViSet Administrator 2 remote management, Crestron CCV2 certification, a Q-Sys plug-in and tested compatibility with Barco ClickShare. Within the PN-L range, it is the 65-inch model alongside the 75-inch PN-L752B and 86-inch PN-L862B.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Precision touch
  • Real multi-touch
  • 4K display
  • Brightness and contrast
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Real multi-touch
Up to 20 touches with finger, glove or dual-tip stylus input
02
4K display
3840 x 2160 native resolution at 16:9
03
Brightness and contrast
400 nits and 4000:1 typical contrast ratio
04
Built-in Android PC
Android 9.0 with 4 GB RAM and 32 GB storage
05
Whiteboard and annotation
Whiteboard, annotation overlay mode and Windows Ink support
06
Wireless screen sharing
Built-in Bytello Share application
07
System integration
Crestron CCV2, Q-Sys plug-in and Barco ClickShare compatible
08
Three-year warranty
3 years including backlight, as stated by the manufacturer

Specifications

32 specifications
General
Key Features20-point multi-touch, 4K UHD, Android 9.0 built in, whiteboard and annotation overlay, wireless screen sharing, Windows Ink, Crestron CCV2 and Barco ClickShare compatible, OPS slot
ModelPN-L652B
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Bezel Size16.8 mm (left, right, top), 45.7 mm (bottom)
Brightness400 nits
Contrast Ratio4000:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
Touch Points20-point multi-touch
Touch TechnologyPrecision touch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemAndroid 9.0 (built in)
ProcessorArm Cortex-A73 quad-core
RAM4 GB
Storage32 GB
Audio
AudioIntegrated speakers, 10 W + 10 W
Connectivity
BluetoothBluetooth 5.0
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS slot (NEC / Intel OPS standard)
PortsHDMI In × 3, USB-C × 1 (65 W), VGA × 1, USB 3.0 Type-A × 4, USB 3.0 Type-B × 2, USB 2.0 Type-A × 1, LAN 100 Mbit/s, RS-232C × 1, 3.5 mm audio in × 1, 3.5 mm audio out × 1
Wi-FiIEEE 802.11 a/b/g/n/ac/ax
Power
Power Consumption165 W (Eco setting)
Physical
Dimensions1488.4 x 896.6 x 85.5 mm
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature5 to 35 °C
VESA Mount600 x 400 mm
Weight36.5 kg
Compliance
Warranty3 years (backlight included)

Questions

Can’t find your answer? Ask on WhatsApp

Does the Sharp PN-L652B support touch with a finger, a glove or a pen?
Yes. The PN-L652B supports real multi-touch up to 20 touches, with finger, glove and stylus input. The stylus supports dual pen tips of 3 mm and 9 mm, and Windows Ink is supported. The manufacturer lists palm rejection as not supported, so use the stylus for writing.
Is the PN-L652B suitable for a small meeting room?
The PN-L652B is a 65-inch model measuring 1488.4 x 896.6 x 85.5 mm and weighing 36.5 kg. It suits meeting and training rooms where its size and weight fit the wall or stand. Confirm the room layout with Procure.ae before ordering.
Can the PN-L652B be wall mounted?
Yes. The PN-L652B has four mounting holes with a 600 x 400 mm VESA pattern (FDMI, M8). The manufacturer also lists trolley and wall mount accessories for this model. Procure.ae can advise on mounting options for your room.
Which conferencing and control systems does the PN-L652B support?
The PN-L652B is Crestron CCV2 certified, tested compatible with Barco ClickShare for conferencing, and includes a Q-Sys plug-in. It offers LAN 100 Mbit/s and RS-232C control, and can be managed with NaViSet Administrator 2.
Can a notebook connect to the PN-L652B with one cable?
Yes. The single USB-C input carries video and up to 65 W of power, so a notebook can connect with one cable, as the manufacturer describes. The display also provides three HDMI inputs and a VGA input for other sources.
