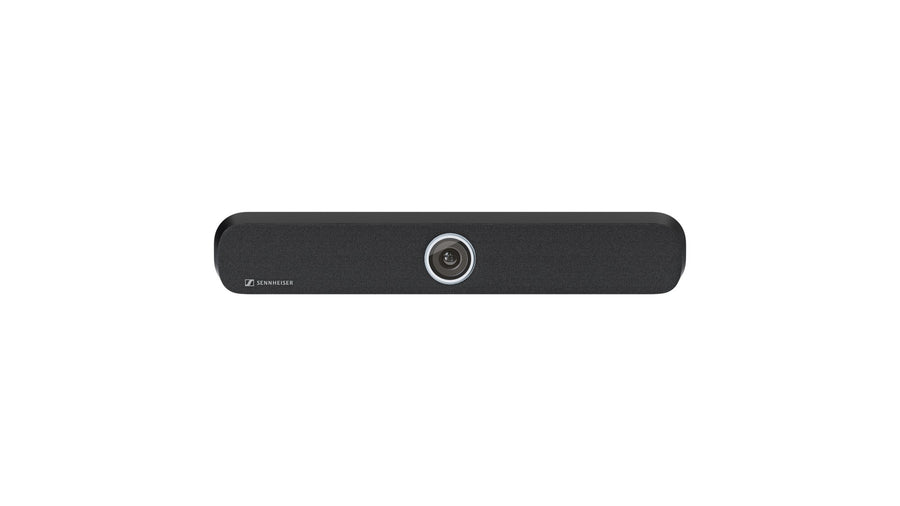

Sennheiser TeamConnect Bar S AUS/NZS video conferencing barSennheiser
Meeting Room SolutionsSKU TeamConnect Bar S AUS/NZS

Sennheiser TeamConnect Bar S Video Conferencing Bar – TeamConnect Bar S AUS/NZS

The Sennheiser TeamConnect Bar S AUS/NZS is an all-in-one video conferencing bar for small meeting rooms. It combines a 4K UHD ePTZ camera, four microphones and two speakers in one unit, and it can be powered over PoE+. Procure.ae supplies the TeamConnect Bar S AUS/NZS across the UAE, with delivery and installation.

The TeamConnect Bar S AUS/NZS has a UHD 2160p (4K) ePTZ camera with a 120° diagonal and 115° horizontal field of view, 2x digital zoom and autoframing with person tiling. Four MEMS microphones use integrated beamforming to follow presenters as they move, with a pickup range of 4.5 m. Two full-range stereo speakers cover an audio frequency response of 100 Hz to 18 kHz, and a built-in DSP automatically optimises room acoustics. Setup is plug and play, with a quick start over a USB cable.

The TeamConnect Bar S AUS/NZS suits small meeting rooms and collaboration spaces. It mounts on a wall or VESA bracket, or sits on a table or stand. Dante support lets you add extension microphones or a second external USB camera, and Sennheiser DeviceHub gives full remote-control access. Compared with the TeamConnect Bar M, the S model has four microphones, two speakers, one HDMI out port, 2x digital zoom and an 80 dB SPL maximum level, and it runs from PoE+ (42.5–57.0 V DC) instead of an 18 V DC supply.

Type
Video Conferencing Bar
Weight
1.5 kg
  • 4K ultra HD camera
  • Autoframing and person tiling
  • Integrated beamforming
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
4K ultra HD camera
UHD 2160p (4K) ePTZ camera with advanced AI features and 2x digital zoom.
02
Autoframing and person tiling
Keeps everyone in the room clearly in view.
03
Integrated beamforming
Four microphones allow freedom of movement and seamless transition among presenters.
04
Full-range stereo speakers
Two speakers deliver natural speech and clear intelligibility.
05
Built-in DSP
Automatically optimises room acoustics.
06
Dante expansion
Add extension microphones or a second external USB camera over Dante.
07
Brand-agnostic integration
Approved for Barco, Crestron, Extron and Q-Sys control systems, and for Microsoft Teams and Zoom.
08
Secure remote management
Full remote control through Sennheiser DeviceHub, with encrypted, password-protected control communication.

Specifications

28 specifications
General
CompatibilityWindows 10 and later
ControlsFull remote control via Sennheiser DeviceHub
Key Features4K UHD camera, autoframing and person tiling, integrated beamforming, Dante expansion, built-in DSP, PoE+ power, DeviceHub remote management
ModelTeamConnect Bar S AUS/NZS
TypeVideo Conferencing Bar
Display
CameraUHD 2160p (4K) ePTZ, 120° diagonal and 115° horizontal field of view
Zoom2x digital
Performance
Storage Conditions-25 to 70 °C, 0% to 95% RH, non-condensing
Audio
Dynamic Range69 dB(A)
Frequency Response100 Hz to 18 kHz
Max SPL80 dB SPL
MicrophoneMEMS, 4 microphones with integrated beamforming
Pickup Range4.5 m
Speaker ConfigurationStereo, 2 speakers
THD<5%
Connectivity
BluetoothBluetooth 5.1 (SBC, A2DP)
ConnectivityUSB, RJ45 (Ethernet), Dante, Wi-Fi, Bluetooth, PoE+
Input Voltage42.5–57.0 V DC (PoE+)
PoEPoE+ (IEEE 802.3at Type 2)
PortsHDMI out 2.0 × 1, USB, RJ45 (Ethernet)
Wi-Fi802.11a/b/g/n/ac, 2412–2472 MHz
Power
Power Consumption30 W (max)
Physical
MountingWall, VESA, tabletop or freestanding
Operating Humidity0% to 75% RH, non-condensing
Operating Temperature0 to 40 °C
Weight1.5 kg
Compliance
CertificationsMicrosoft Teams and Zoom approved; Barco, Crestron, Extron, Q-Sys control systems
Warranty3 years

Downloads

Manufacturer documents for the Sennheiser TeamConnect Bar S Video Conferencing Bar – TeamConnect Bar S AUS/NZS — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Is the TeamConnect Bar S AUS/NZS a camera, microphone and speaker in one unit?
Yes. The TeamConnect Bar S AUS/NZS combines a UHD 2160p (4K) ePTZ camera, four microphones and two speakers in one bar. It starts with a quick plug-and-play setup over a USB cable and has one HDMI out 2.0 port for a display.
What room size is the TeamConnect Bar S AUS/NZS designed for?
It is designed for small meeting rooms and collaboration spaces. The microphones have a pickup range of 4.5 m and the camera has a 115° horizontal field of view. For larger rooms, the TeamConnect Bar M has six microphones and four speakers.
Does the TeamConnect Bar S AUS/NZS work with Microsoft Teams and Zoom?
Yes. The manufacturer lists approval for Microsoft Teams and Zoom, and the camera zoom is noted as Microsoft Teams certified. Barco, Crestron, Extron and Q-Sys control systems are also approved. Tencent and DingTalk certifications are listed as pending.
Can the TeamConnect Bar S AUS/NZS be powered over Ethernet?
Yes. It accepts PoE+ (IEEE 802.3at Type 2) with a 42.5 to 57.0 V DC input range, draws a maximum of 30 W, and has an RJ45 Ethernet connection.
How is the TeamConnect Bar S AUS/NZS mounted?
It supports wall mounting, VESA mounting, tabletop or freestanding setups. The manufacturer's specifications do not state the VESA pattern, so confirm the bracket size with Procure.ae before ordering a mount.
Can I buy the TeamConnect Bar S AUS/NZS in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
