SennheiserMeeting Room SolutionsSKU SL MCR 2 DW-7

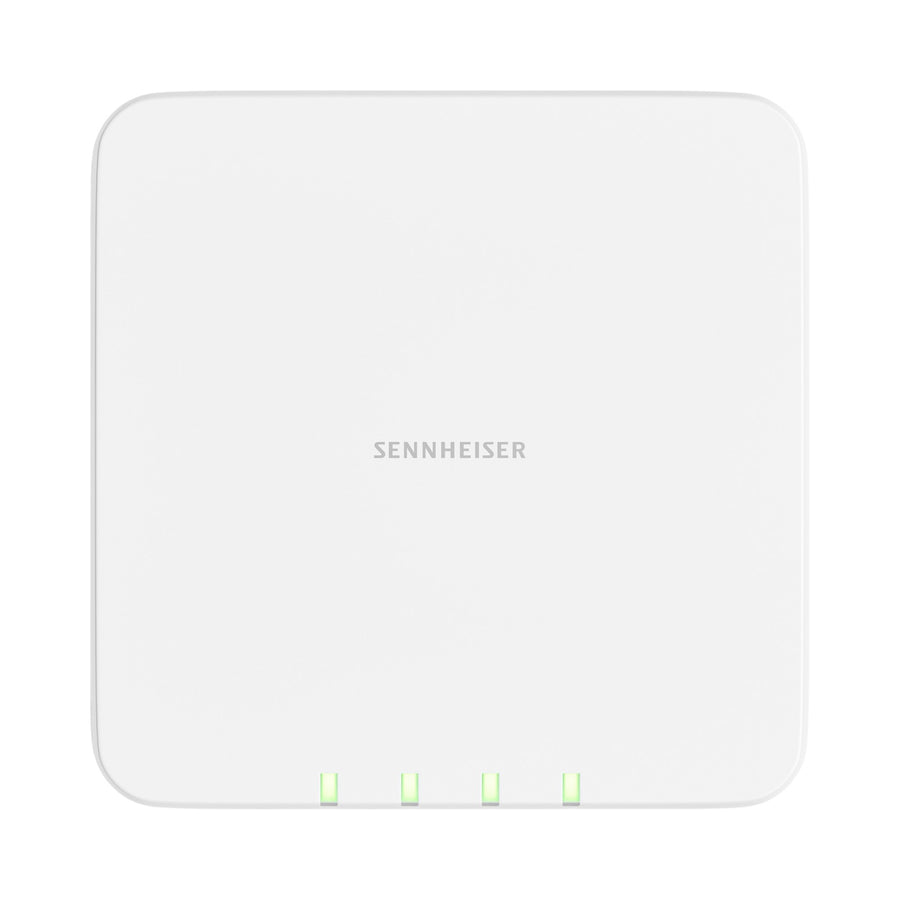

Sennheiser SpeechLine DW 2-Channel Microphone Receiver – SL MCR 2 DW-7
The Sennheiser SL MCR 2 DW-7 (alternate code 508853) is a 2-channel wireless microphone receiver for the SpeechLine Digital Wireless (DW) system, built for meeting and conference rooms. It provides Dante audio networking, power over Ethernet (PoE) and AES 256 encryption, with an analog mix output. Procure.ae supplies the SL MCR 2 DW-7 in the UAE.
The SL MCR 2 DW-7 receives audio from SpeechLine DW mobile transmitters in the 1880 to 1900 MHz frequency range. Automatic frequency management removes the need for manual frequency settings, and automatic gain control (AGC) adjusts input levels automatically. The integrated automixer combines the audio channels into one sum signal. The receiver is specified with a 20 to 20,000 Hz frequency response, more than 120 dB(A) dynamic range and 0.1 % typical total harmonic distortion (THD).
The receiver mounts on a wall, a ceiling or a microphone stand. A single network cable carries power and audio through PoE and Dante, so complex analog cabling is not needed, and Dante can extend an existing setup without exchanging the DSP. Transmitter settings are made in the Sennheiser Control Cockpit, and media control systems such as AMX, Crestron and Q-SYS Control can monitor the receiver. Compared with the four-channel SL MCR 4 receivers, this model serves two channels.
Type
Wireless Microphone Receiver
Weight
560 g
- Channel count
- Automatic gain control
- Automatic frequency management
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Channel count
The SL MCR 2 DW-7 is a 2-channel receiver from the SpeechLine DW Multi-Channel Receiver series.
02
Automatic gain control
The receiver adjusts input levels automatically with automatic gain control (AGC).
03
Automatic frequency management
Frequencies are managed automatically, so no manual frequency settings are needed.
04
Dante networking
Two Dante RJ-45 sockets provide primary and secondary digital audio networking.
05
Power over Ethernet
The receiver supports PoE, so a single network cable carries power and audio.
06
Analog mix output
A 3-pin socket provides all audio channels as one analog sum signal.
07
Remote control
Transmitter settings are made in the Sennheiser Control Cockpit, and media control systems can monitor the receiver.
08
AES 256 encryption
The receiver is specified with AES 256 encryption.
Specifications
25 specificationsGeneral
CompatibilitySennheiser Control Cockpit, AMX, Crestron, Q-SYS Control
Key Features2 channels, automatic gain control, automatic frequency management, Dante, PoE, analog mix output, integrated automixer, AES 256 encryption
ModelSL MCR 2 DW-7
TypeWireless Microphone Receiver
Audio
Audio OutAnalog mix: one 3-pin socket; Dante: two RJ-45 sockets
Channels2
Dynamic RangeMore than 120 dB(A)
Frequency Response20 to 20,000 Hz
THD0.1 % (typical)
Connectivity
ConnectivityWireless, RJ45 Ethernet, Dante
EthernetRJ45
Frequency Band1880 to 1900 MHz
PoEYes
ProtocolsDante (primary and secondary)
Power
BatteryNot included
Power ConsumptionLess than 15 W
Power SourcePoE (Power over Ethernet)
Physical
ColorWhite
Dimensions180 x 180 x 45 mm (incl. wall mount)
MountingWall, ceiling or microphone stand
Operating HumidityUp to 95 % RH
Operating Temperature-10 to +45 °C
Weight560 g
Compliance
Security FeaturesAES 256 encryption
Warranty2 years
Downloads
Manufacturer documents for the Sennheiser SpeechLine DW 2-Channel Microphone Receiver – SL MCR 2 DW-7 — datasheets, manuals, drawings and certificates.
- Datasheet – Sennheiser SpeechLine DW Multi-Channel Receiver (SL MCR DW) / SpeechLine DW Rack Receiver (SL Rack Receiver DW)
- Datasheet – Wall Mount adapter
- Datasheet – SpeechLine DW Multi-Channel Receiver (SL MCR DW) – SL MCR DW Specifications ManufacturerDeclarations
- User manual – Sennheiser (covers 39 models)
- Quick start guide – Wall Mount adapter
- Certificate / compliance – SpeechLine DW Multi-Channel Receiver (SL MCR DW)
- EU DoC SL MCR DW signed
- SpeechLine Digital Wireless - Letter of Volatility
Questions
Can’t find your answer? Ask on WhatsApp
What does the SL MCR 2 DW-7 connect to?
The SL MCR 2 DW-7 connects to SpeechLine DW mobile transmitters over a wireless link. On the network side it has two Dante RJ-45 sockets for primary and secondary digital audio, an RJ45 Ethernet connector, and a 3-pin socket for the analog mix output.
Can the SL MCR 2 DW-7 be powered over the network?
Yes. The SL MCR 2 DW-7 supports Power over Ethernet (PoE), so one network cable carries power and Dante audio. Power consumption is less than 15 W, and no battery is included.
Is the SL MCR 2 DW-7 suitable for wall or ceiling mounting?
Yes. The receiver mounts on a wall, a ceiling or a microphone stand. It measures 180 x 180 x 45 mm including the wall mount and weighs 560 g. It operates from -10 to +45 °C at humidity up to 95 %.
Can the SL MCR 2 DW-7 be controlled remotely?
Yes. Transmitter settings are made in the Sennheiser Control Cockpit. The receiver can also be remotely controlled and monitored through media control systems such as AMX, Crestron and Q-SYS Control.
What is the difference between the SL MCR 2 DW-7 and the other variants?
The manufacturer's specifications list the same values for the other SL MCR 2 variants (DW-5 and DW-6), including 2 channels, the 1880 to 1900 MHz frequency range and a weight of 560 g. Procure.ae can confirm which variant matches your system before you order.
Can I buy the SL MCR 2 DW-7 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
