SamsungInteractive Flat PanelsSKU WM85B

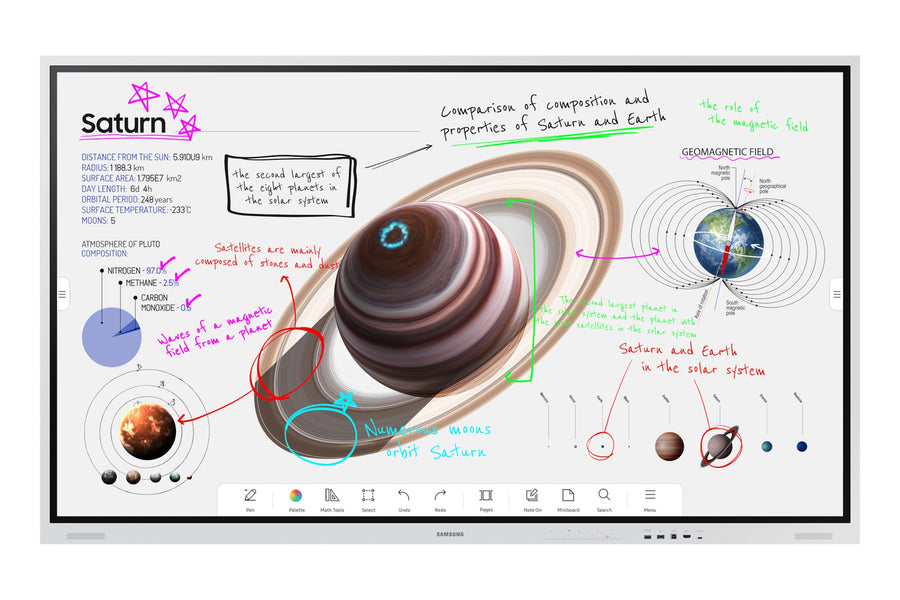

Samsung Flip Pro 85-inch Interactive Flat Panel – WM85B
The Samsung Flip Pro WM85B is an 85-inch interactive flat panel for classrooms, meeting rooms and training spaces. It offers 3840 x 2160 (4K UHD) resolution, infrared touch and Tizen 6.5 software. Procure.ae supplies the Samsung WM85B across the UAE, with delivery and installation.
The WM85B uses an 85-inch VA panel with 3840 x 2160 (4K UHD) resolution, 350 nits typical brightness without glass (220 nits with glass) and a 4,000:1 contrast ratio without glass. The panel has 178-degree viewing angles, an 8 ms response time and a 72% colour gamut. Infrared touch is built into the panel, and the product is rated for 16/7 operation with a 48–75 Hz vertical scanning range.
The WM85B runs Tizen 6.5 with 32 GB of flash storage and includes Wi-Fi and Bluetooth. Its inputs are two HDMI 2.0 ports and one DisplayPort 1.2 port, with three USB-A ports, one USB-C port, an RS232C input and an RJ45 network port. The manufacturer lists the WMN8200SF mount model and a 600 x 400 mm VESA pattern. The 75-inch WM75B in the same Flip Pro range is the next size down.
Screen Size
85 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (without glass), 220 nits ...
Touch Technology
Infrared
- 4K UHD Panel
- Infrared Touch
- Tizen Software
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Panel
3840 x 2160 resolution on an 85-inch VA panel.
02
Infrared Touch
infrared touch technology built into the display.
03
Tizen Software
Tizen 6.5 operating system with 32 GB storage.
04
Brightness and Contrast
350 nits typical brightness and 4,000:1 contrast without glass.
05
Video Inputs
two HDMI 2.0 inputs and one DisplayPort 1.2 input.
06
USB Ports
three USB-A ports and one USB-C port.
07
Wireless Connectivity
Wi-Fi and Bluetooth listed for the display.
08
Extended Operation
rated for 16/7 operation.
Specifications
31 specificationsGeneral
Key Features4K UHD, infrared touch, Tizen 6.5, 350 nits without glass, 4,000:1 contrast, HDMI 2.0, DisplayPort 1.2, Wi-Fi and Bluetooth
ModelWM85B
TypeInteractive Flat Panel
Display
Bezel Size20.4 mm (top and sides), 44.7 mm (bottom)
Brightness350 nits (without glass), 220 nits (with glass)
Color Gamut72%
Contrast Ratio4,000:1 (without glass)
Panel TechnologyVA
Refresh Rate48–75 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85 inch
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Duty Cycle16/7 operation
Operating SystemTizen 6.5
Storage32 GB
Connectivity
BluetoothYes
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 2, DisplayPort 1.2 In × 1, USB-A × 3, USB-C × 1, RS232C In, RJ45 In, Audio Out (stereo mini jack)
Wi-FiYes
Power
Power Consumption528 W (on mode, 100–240 V)
Standby Power0.5 W (sleep mode)
Physical
Dimensions1945.8 x 1151.1 x 89 mm
MaterialAluminium frame
Operating Humidity10% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Shipping Dimensions2136 x 1318 x 260 mm
Shipping Weight91.6 kg
VESA Mount600 x 400 mm
Weight75.2 kg
Downloads
Manufacturer documents for the Samsung Flip Pro 85-inch Interactive Flat Panel – WM85B — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Samsung WM85B?
The Samsung Flip Pro WM85B is an 85-inch interactive flat panel with a 3840 x 2160 VA panel, infrared touch and Tizen 6.5. It sits in the Flip Pro range alongside the 75-inch WM75B.
Does the WM85B support touch?
Yes. The WM85B uses infrared touch technology. The manufacturer's specifications do not state a touch point count, so ask Procure.ae to confirm the touch details for your software and setup before ordering.
Can the WM85B connect to a laptop?
Yes. Connect a laptop over HDMI 2.0 or DisplayPort 1.2. The panel also has three USB-A ports, one USB-C port and an RJ45 network port for connecting to a network.
Can the WM85B be wall mounted?
Yes. The panel uses a 600 x 400 mm VESA pattern, and the manufacturer lists the WMN8200SF mount model. The panel weighs 75.2 kg, so confirm the wall structure and mount rating with your installer before installation.
How does the WM85B differ from the WM75B?
The WM85B is the 85-inch model, measuring 1945.8 x 1151.1 x 89 mm and weighing 75.2 kg. The WM75B is the 75-inch model, measuring 1724 x 1026.3 x 89 mm and weighing 59.3 kg, with a 400 x 400 mm VESA pattern.
Can I buy the WM85B in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
