SamsungInteractive Flat PanelsSKU WM75B

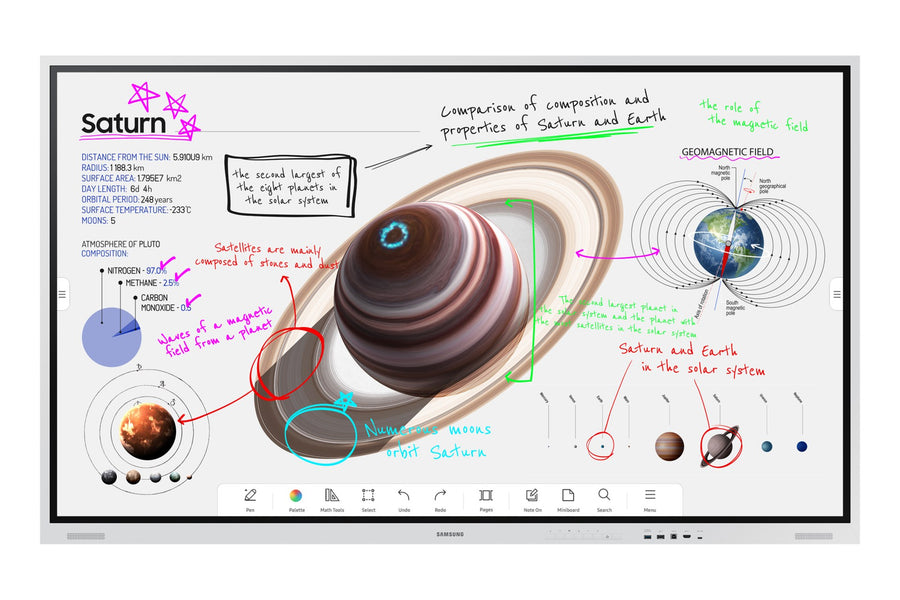

Samsung Flip Pro 75-inch Interactive Flat Panel – WM75B
The Samsung Flip Pro WM75B is a 75-inch interactive flat panel for classrooms, meeting rooms and training spaces. It offers 3840 x 2160 (4K UHD) resolution, infrared touch and Tizen 6.5 software. Procure.ae supplies the Samsung WM75B across the UAE, with delivery and installation.
The WM75B uses a 75-inch VA panel with 3840 x 2160 (4K UHD) resolution, 350 nits typical brightness without glass (220 nits with glass) and a 4,000:1 contrast ratio without glass. The panel has 178-degree viewing angles, an 8 ms response time and a 72% colour gamut. Infrared touch is built into the panel, and the product is rated for 16/7 operation with a 48–75 Hz vertical scanning range.
The WM75B runs Tizen 6.5 with 32 GB of flash storage and includes Wi-Fi and Bluetooth. Its inputs are two HDMI 2.0 ports and one DisplayPort 1.2 port, with three USB-A ports, one USB-C port, an RS232C input and an RJ45 network port. The manufacturer lists the WMN6575SF mount model for this panel. The 85-inch WM85B in the same Flip Pro range is the next size up.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (without glass), 220 nits ...
Touch Technology
Infrared
- 4K UHD Panel
- Infrared Touch
- Tizen Software
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Panel
3840 x 2160 resolution on a 75-inch VA panel.
02
Infrared Touch
infrared touch technology built into the display.
03
Tizen Software
Tizen 6.5 operating system with 32 GB storage.
04
Brightness and Contrast
350 nits typical brightness and 4,000:1 contrast without glass.
05
Video Inputs
two HDMI 2.0 inputs and one DisplayPort 1.2 input.
06
USB Ports
three USB-A ports and one USB-C port.
07
Wireless Connectivity
Wi-Fi and Bluetooth listed for the display.
08
Extended Operation
rated for 16/7 operation.
Specifications
31 specificationsGeneral
Key Features4K UHD, infrared touch, Tizen 6.5, 350 nits without glass, 4,000:1 contrast, HDMI 2.0, DisplayPort 1.2, Wi-Fi and Bluetooth
ModelWM75B
TypeInteractive Flat Panel
Display
Bezel Size20.4 mm (top and sides), 44.7 mm (bottom)
Brightness350 nits (without glass), 220 nits (with glass)
Color Gamut72%
Contrast Ratio4,000:1 (without glass)
Panel TechnologyVA
Refresh Rate48–75 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Duty Cycle16/7 operation
Operating SystemTizen 6.5
Storage32 GB
Connectivity
BluetoothYes
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI 2.0 In × 2, DisplayPort 1.2 In × 1, USB-A × 3, USB-C × 1, RS232C In, RJ45 In, Audio Out (stereo mini jack)
Wi-FiYes
Power
Power Consumption473 W (on mode, 100–240 V)
Standby Power0.5 W (sleep mode)
Physical
Dimensions1724 x 1026.3 x 89 mm
MaterialAluminium frame
Operating Humidity10% to 80% RH, non-condensing
Operating Temperature0 to 40 °C
Shipping Dimensions1905 x 1189 x 287 mm
Shipping Weight72.2 kg
VESA Mount400 x 400 mm
Weight59.3 kg
Downloads
Manufacturer documents for the Samsung Flip Pro 75-inch Interactive Flat Panel – WM75B — datasheets, manuals, drawings and certificates.
- Quick start guide – Samsung Flip Pro WM75B Interactive Display / Flip Pro WM85B Interactive Display
- Quick start guide – Samsung Flip Pro WM75B Interactive Display / Flip Pro WM85B Interactive Display
- Quick start guide – Samsung Flip Pro WM75B Interactive Display / Flip Pro WM85B Interactive Display
- Quick start guide – WM75B
Questions
Can’t find your answer? Ask on WhatsApp
What is the Samsung WM75B?
The Samsung Flip Pro WM75B is a 75-inch interactive flat panel with a 3840 x 2160 VA panel, infrared touch and Tizen 6.5. It sits in the Flip Pro range alongside the 85-inch WM85B.
Does the WM75B support touch?
Yes. The WM75B uses infrared touch technology. The manufacturer's specifications do not state a touch point count, so ask Procure.ae to confirm the touch details for your software and setup before ordering.
Can the WM75B connect to a laptop?
Yes. Connect a laptop over HDMI 2.0 or DisplayPort 1.2. The panel also has three USB-A ports, one USB-C port and an RJ45 network port for connecting to a network.
Can the WM75B be wall mounted?
Yes. The panel uses a 400 x 400 mm VESA pattern, and the manufacturer lists the WMN6575SF mount model. The panel weighs 59.3 kg, so confirm the wall structure and mount rating with your installer.
How does the WM75B differ from the WM85B?
The WM75B is the 75-inch model, measuring 1724 x 1026.3 x 89 mm and weighing 59.3 kg. The WM85B is the 85-inch model, measuring 1945.8 x 1151.1 x 89 mm and weighing 75.2 kg, with a 600 x 400 mm VESA pattern.
Can I buy the WM75B in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
