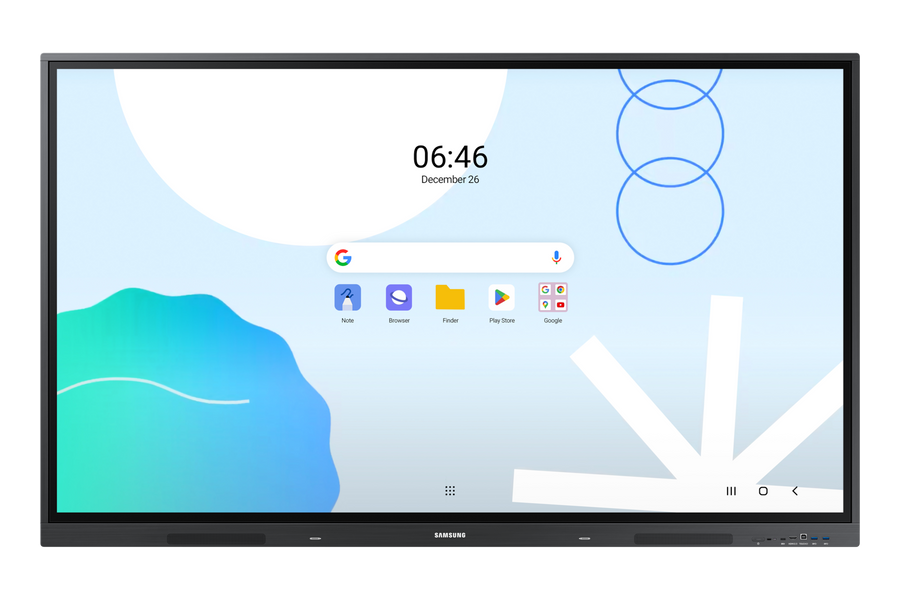

Samsung 86" – WAD Series Interactive Display (Model: LH86WADWLGCXZA)
The Samsung 86" – WAD Series Interactive Display (Model: LH86WADWLGCXZA) is a interactive flat panel available in the UAE from Procure.ae.
The Samsung 86" – WAD Series Interactive Display (Model: LH86WADWLGCXZA) is the ultimate solution for modern classrooms and collaborative meeting spaces, delivering advanced interactive display technology on a stunning 86-inch screen. Engineered for seamless touchscreen collaboration , this display enables real-time engagement through multi-touch capabilities, making it perfect for dynamic presentations and group projects. With ultra-high-definition 4K resolution , content appears crisp and vibrant, ensuring every detail is clear. The WAD Series integrates with leading educational software.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- Massive 86-Inch Display
- Ultra HD 4K Resolution
- Multi-Touch Technology
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Massive 86-Inch Display
Captivate audiences with a large, immersive screen ideal for classrooms and boardrooms.
02
Ultra HD 4K Resolution
Experience crystal-clear visuals for presentations, videos, and interactive content.
03
Multi-Touch Technology
Supports simultaneous touchpoints for collaborative work and engaging activities.
04
Seamless Wireless Connectivity
Easily share content from devices without cables for hassle-free meetings.
05
Integrated Whiteboard Functionality
Write, draw, and annotate directly on the display for interactive sessions.
06
Durable Build Quality
Designed for frequent use in educational and corporate environments.
07
Smart Compatibility
Works with popular educational and business software for flexible integration.
08
Intuitive User Interface
Simple navigation and controls ensure ease of use for all users.
Specifications
33 specificationsDisplay
Bezel Size16.4 mm (sides/top), 44.9 mm (bottom)
Brightness400 nits
Color Gamut72%
Contrast Ratio1,200:1
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch PointsMulti-touch
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemAndroid 13
Storage64 GB
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
Connectivity
BluetoothBuilt-in
EthernetRJ45 (Gigabit) × 2
HDMI InputsHDMI In (HDMI 2.0) × 3
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS-232 × 1
USB PortsUSB 2.0 × 1, USB 3.0 × 4
Wi-FiBuilt-in
Power
Power Consumption486 W
Standby Power0.5 W
Physical
Dimensions1957 x 1160 x 99 mm
Duty Cycle12/7
Operating Humidity10% to 90% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2110 x 1283 x 225 mm
Shipping Weight74.3 kg
VESA Mount800 x 600 mm
Weight56.5 kg
Downloads
Manufacturer documents for the Samsung 86" – WAD Series Interactive Display (Model: LH86WADWLGCXZA) — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Samsung interactive flat panel used for?
The Samsung 86" – WAD Series Interactive Display (Model: LH86WADWLGCXZA) is the ultimate solution for modern classrooms and collaborative meeting spaces, delivering advanced interactive display technology on a stunning 86-inch screen. Engineered for seamless touchscreen collaboration , this display.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?

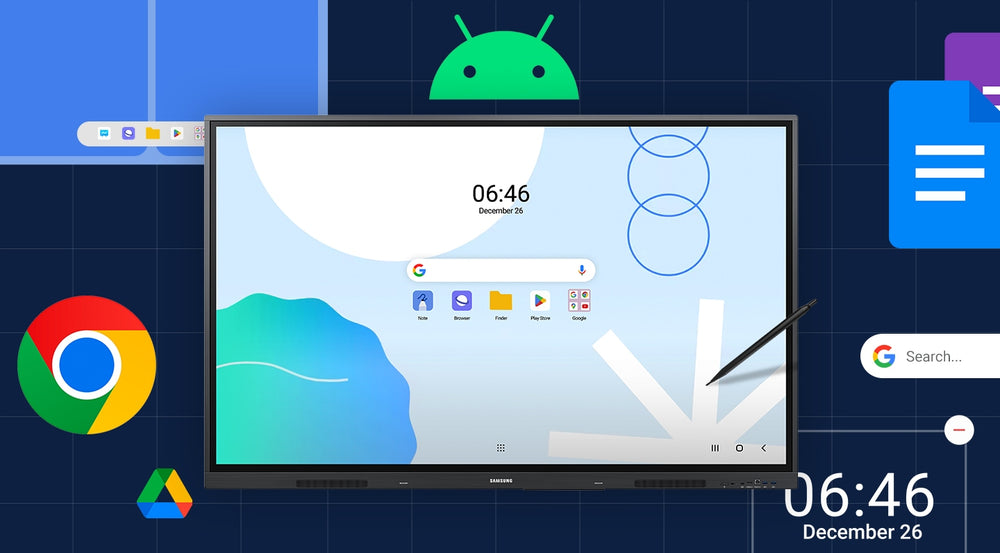

Yes — it runs Android 13, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
