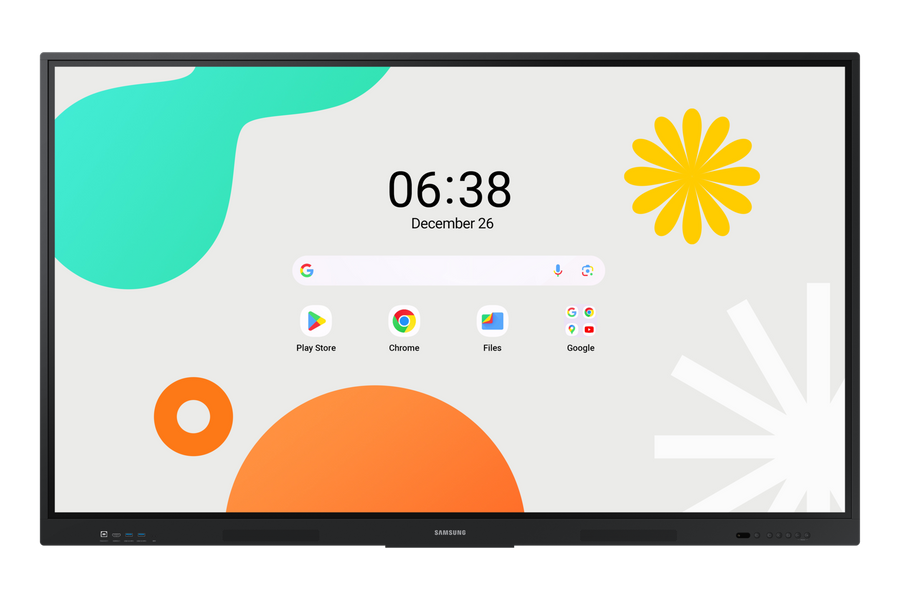

The Samsung 86" – Interactive Display – WAF Series (Model: LH86WAFWLGCXZA) is a interactive flat panel available in the UAE from Procure.ae.

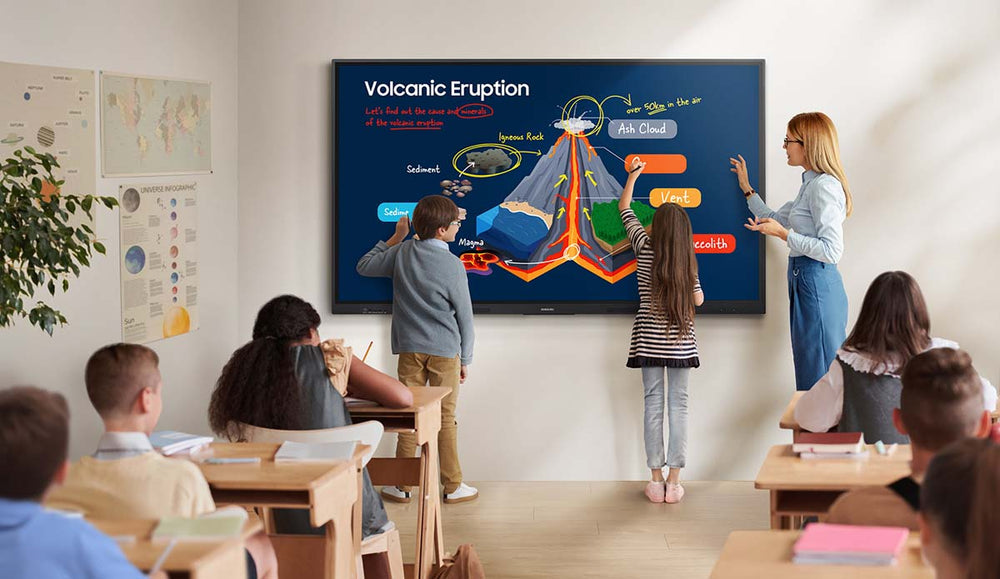

Transform your workspace or classroom with the Samsung 86" Interactive Display – WAF Series (Model: LH86WAFWLGCXZA), a cutting-edge solution designed to engage, collaborate, and inspire. This ultra-large interactive touchscreen boasts a brilliant 4K UHD resolution, delivering stunning visuals for presentations, lessons, and meetings. Powered by advanced touch technology , the WAF Series display provides seamless multi-user interaction, making it perfect for education, corporate settings, and digital signage. With integrated wireless connectivity , users can easily share content from their.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- 86-Inch 4K UHD Display - Immersive large screen with ultra-high-definition clarity for impactful visuals.
- Multi-Touch Technology - Supports multiple users simultaneously for collaborative experiences.
- Wireless Screen Sharing - Effortlessly connect devices for seamless content sharing and presentations.
- Integrated Annotation Tools - Easily write, draw, and highlight directly on the display for interactive sessions.
- Anti-Glare Coating - Ensures clear visibility from any angle, minimizing reflections in bright environments.
- Robust Security Features - Protect sensitive data with advanced security and user management options.
- Versatile Mounting Options - Compatible with wall mounts and stands for flexible installation in any space.
- Powerful Built-in Speakers - Delivers clear, room-filling audio for engaging presentations and video calls.
Ideal for: offices, schools, and government facilities across Dubai, Abu Dhabi, Sharjah and the wider GCC.
General
| Name |
Samsung 86" – Interactive Display – WAF Series (Model: LH86WAFWLGCXZA) |
| What's in the Box |
Remote Controller, Touch Pen (2ea, Black), Warranty/QSG, Power Cord, HDMI Cable, USB Cable |
Display
| Backlight |
Direct LED |
| Brightness |
400 nits |
| Refresh Rate |
60 Hz |
| Resolution |
3840 x 2160 (4K UHD) |
| Screen Size |
86 inch |
| Touch Points |
40-point multi-touch |
| Touch Response Time |
< 5 ms |
| Touch Technology |
Infrared |
| Viewing Angle |
178° (H) / 178° (V) |
Performance
| Operating System |
Android 14 |
| Processor |
ARM 4x Cortex-A73 + 4x Cortex-A53 |
Audio
| Audio In |
Audio in × 1 |
| Audio Out |
Audio out × 1 |
| Speaker Output |
2 × 15 W |
| Speaker Type |
Built-in |
Connectivity
| Bluetooth |
Built-in |
| Ethernet |
RJ45 (Gigabit) × 1 |
| HDMI Inputs |
HDMI In × 2 |
| HDMI Outputs |
HDMI Out × 1 |
| OPS Slot |
Optional |
| Serial Port |
RS-232 × 1 |
| Touch USB Ports |
Touch USB × 2 (Front × 1, Rear × 1) |
| USB Ports |
USB 2.0 × 2, USB 3.0 × 2 |
| USB-C Ports |
USB-C × 1 (Front) |
| Wi-Fi |
Wi-Fi 5 (802.11ac) |
Power
| Power Consumption |
< 262 W |
Physical
| Dimensions |
1961.8 x 1163.9 x 87.7 mm |
| Operating Humidity |
10% to 90% RH |
| Operating Temperature |
0°C to 40°C |
| Shipping Dimensions |
2095 x 1265 x 185 mm |
| Surface Protection |
Yes |
| VESA Mount |
800 x 600 mm |
| Weight |
65.5 kg |
Frequently Asked Questions
Where can I buy the Samsung 86" – Interactive Display – WAF Series (Model: LH86WAFWLGCXZA) in the UAE?
Procure.ae is an authorized UAE supplier of the Samsung 86" – Interactive Display – WAF Series (Model: LH86WAFWLGCXZA), with delivery across Dubai, Abu Dhabi, Sharjah and the GCC, free demos, and procurement-ready quotations.
What is the Samsung interactive flat panel used for?
Transform your workspace or classroom with the Samsung 86" Interactive Display – WAF Series (Model: LH86WAFWLGCXZA), a cutting-edge solution designed to engage, collaborate, and inspire. This ultra-large interactive touchscreen boasts a brilliant 4K UHD resolution, delivering stunning visuals for.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 14, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
Contact us — camera/mic availability varies by model and can be added.
