SamsungDigital SignageSKU QB13C

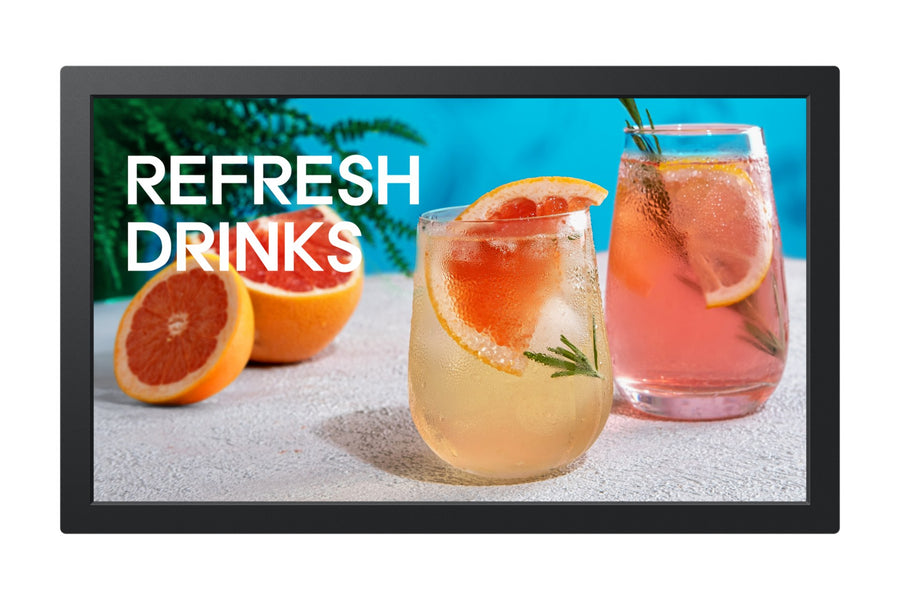

Samsung 13-inch QB13C Small Signage Display – QB13C
The Samsung QB13C is a 13-inch Full HD (1920 x 1080) small signage display for counters, menu boards, queue points and information points. It runs Tizen 7.0 with Wi-Fi and Bluetooth, and supports 16/7 operation. Procure.ae supplies the Samsung QB13C in the UAE with delivery and installation.
The Samsung QB13C is a 13-inch Full HD (1920 x 1080) small signage display with a 500 nits typical brightness, an 800:1 contrast ratio and a 170-degree viewing angle horizontally and vertically. The 30 ms response time and 45% colour gamut suit static and simple motion content. The manufacturer lists 10,000:1 dynamic contrast and 16/7 operation support, with 8 GB of flash storage for the built-in Tizen 7.0 operating system.
The QB13C fits counters, queue points, menu boards and information points where a compact screen is needed. It connects over Wi-Fi, an RJ45 network port and RS232 serial, and includes Bluetooth. It mounts on a 100 x 100 mm VESA pattern and weighs 0.8 kg. Compared with the 32-inch and larger SMHX-P spatial signage models in the same range, the QB13C is a smaller display with lower on-mode power consumption at 35 W.
Screen Size
13 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Small Signage Display
- Full HD Resolution
- Compact Size
- Extended Operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD Resolution
1920 x 1080 pixels on a 13-inch ADS panel.
02
Compact Size
322 x 193.5 x 19.9 mm and 0.8 kg for counter and wall use.
03
Extended Operation
16/7 operation support as listed by the manufacturer.
04
Wi-Fi and Bluetooth
Wireless connectivity for content and device links.
05
Tizen 7.0 Platform
Built-in Tizen 7.0 operating system with 8 GB flash storage.
06
Network and Serial Control
RJ45 network input and RS232 serial input.
07
Low Power Use
35 W on-mode consumption and 0.5 W in sleep mode.
Specifications
23 specificationsGeneral
Key Features16/7 operation support, Dynamic contrast 10,000:1, Wi-Fi and Bluetooth, RS232 control, Tizen 7.0 OS, Black non-glossy bezel, Energy class B
ModelQB13C
TypeSmall Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Color Gamut45%
Contrast Ratio800:1
Panel TechnologyADS
Resolution1920 x 1080 (Full HD)
Response Time30 ms
Screen Size13 inch
Viewing Angle170° / 170°
Performance
Operating SystemTizen 7.0
Storage8 GB
Connectivity
BluetoothBluetooth
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 1, USB × 1, RJ45 In × 1, RS232 In × 1, Stereo Mini Jack audio out
Wi-FiWi-Fi
Power
Power Consumption35 W (on mode), 0.5 W (sleep mode)
Physical
Dimensions322 x 193.5 x 19.9 mm
Operating Humidity10% to 80% RH, non-condensing
VESA Mount100 x 100 mm
Weight0.8 kg
Downloads
Manufacturer documents for the Samsung 13-inch QB13C Small Signage Display – QB13C — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Samsung QB13C?
The Samsung QB13C is a 13-inch Full HD small signage display. It is designed for counters, queue points, menu boards and information points where a compact screen is needed. It has a 500 nits typical brightness and runs the built-in Tizen 7.0 operating system.
Is the QB13C suitable for long daily operation?
Yes. The manufacturer lists 16/7 operation support for the QB13C, which covers extended business hours. It is a small signage display rated for that schedule rather than continuous 24/7 use, so Procure.ae can advise if your site needs longer running hours.
What connectivity does the QB13C include?
The QB13C includes one HDMI input, one USB port, an RJ45 network input, an RS232 serial input, Wi-Fi and Bluetooth, plus a stereo mini jack audio output. These cover network connection, serial control and wireless links for content and device management.
How is the QB13C mounted?
The QB13C has a 100 x 100 mm VESA pattern and weighs 0.8 kg, so it suits compact wall mounts and desk or counter stands. Procure.ae can advise on the right bracket and fixing for your counter, wall or fixture before installation.
Can the QB13C be controlled over a network?
Yes. The QB13C has an RJ45 network input and an RS232 serial input, which support network and serial control. Wi-Fi and Bluetooth are also built in, and the Tizen 7.0 operating system runs the display. Procure.ae can confirm the control setup for your project.
Can I buy the QB13C in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
