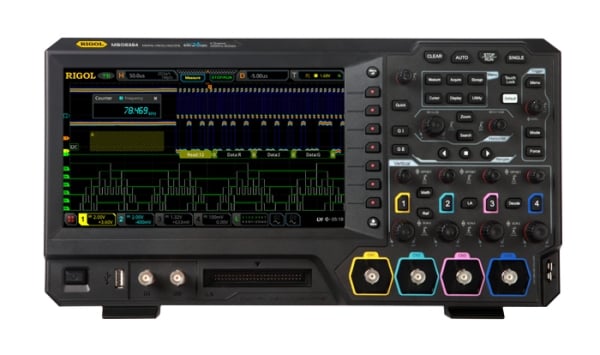

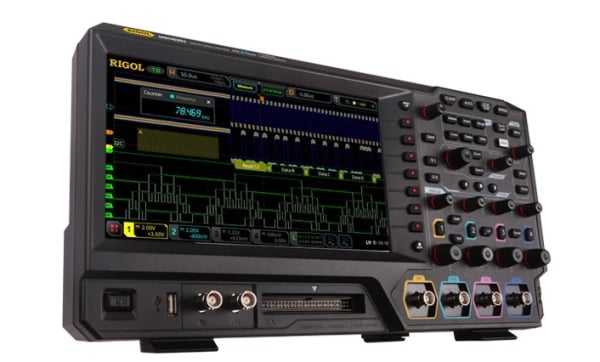

Rigol MSO5104 100MHz 4 Channel Digital Oscilloscope
- SKU: MSO5104
Actual Stock Can Be Confirmed After Placing the Order.
PRODUCT OVERVIEW MSO5000 series of digital oscilloscope’s is a high-performance oscilloscope model design based on RIGOL UltraVision II technology. The MSO5000 series integrates 7 independent instruments into one. The MSO5000 series offers a high sample rate / bandwidth ratio, high memory depth, clear 9... See More
PRODUCT OVERVIEW
MSO5000 series of digital oscilloscope’s is a high-performance oscilloscope model design based on RIGOL UltraVision II technology. The MSO5000 series integrates 7 independent instruments into one. The MSO5000 series offers a high sample rate / bandwidth ratio, high memory depth, clear 9 inch touch-screen display, excellent waveform capture rate and powerful data analysis functions. Many of its specifications are industry leading. These instruments are expected to be popular for R&D, universities, production , quality control, communications engineering, automotive engineering, aerospace engineering, industrial and power markets.
Features:
- Analogue bandwidth: 350 MHz, 200 MHz, 100 MHz, and 70 MHz; bandwidth upgrade option supported
- 2 or 4 analogue channels (upgradeable), standard 16 digital channels(LA probe required)
- Up to 8 GSa/s real-time sample rate
- Up to 200 Mpts memory depth (option)
- High waveform capture rate (over 500,000 wfms/s)
- Auto measurement of 41 waveform parameters; full-memory hardware measurement function
- A variety of serial protocol triggers and decodes
- NEW Bode Plot Analysis – Automate advanced device characterisation with new phase and gain analysis capabilities
- Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
- Independent search, navigation keys, and event table
- Built-in advanced power analysis software (option)
- Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyser, a spectrum analyser, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totaliser, and a protocol analyser
- 9-inch capacitive multi-touch screen, 256-level intensity grading display, with colour persistence

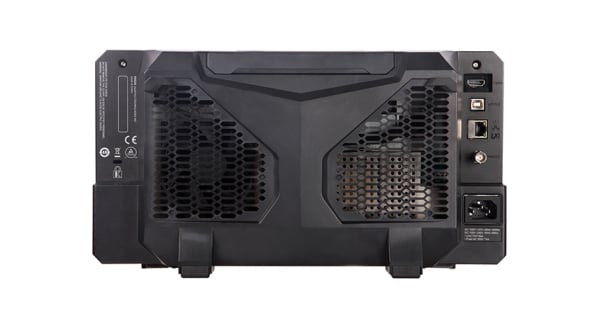

- Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
- Web Control remote command
- Unique online version upgrade
- Novel and delicate industrial design, easy to operate
- Supplied with… 4-off passive probes (350MHz), USB cable, UK & European mains leads, quick guide
