PrometheanMeeting Room SolutionsSKU ASB-40-3

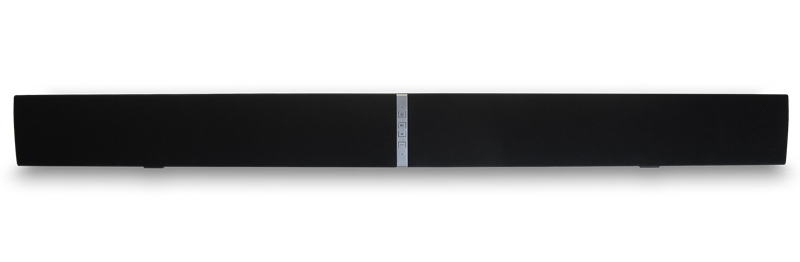

Promethean ActivSoundBar 3 Soundbar – ASB-40-3
The Promethean ActivSoundBar 3 (model ASB-40-3) is a soundbar accessory with 2 x 20 W RMS speakers, Bluetooth and AUX, S/PDIF and USB-A inputs. It mounts with brackets for Promethean ActivPanel and ActivBoard displays. The manufacturer lists the model as discontinued, so Procure.ae can confirm UAE availability.
The ActivSoundBar 3 provides two 20 W RMS speakers with 4 x 2.25-inch drivers, a 65 Hz to 20 kHz frequency response and a signal-to-noise ratio of at least 75 dB. It connects to ActivPanel, ActivPanel i-Series, ActivBoard Touch and ActivBoard displays. Inputs are one AUX, one S/PDIF and one USB-A, and Bluetooth is included. The unit enters automatic standby after two hours and draws 0.5 W or less on standby.
Type
Soundbar
Weight
4.0 kg (net)
- Dual 20 W RMS speakers
- Wide frequency range
- Promethean display fit
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Dual 20 W RMS speakers
2 x 20 W RMS with 4 x 2.25-inch drivers.
02
Wide frequency range
65 Hz to 20 kHz frequency response.
03
Promethean display fit
Brackets and fittings for ActivPanel and ActivBoard displays.
04
Multiple inputs
AUX in, S/PDIF and USB-A.
05
Bluetooth
Bluetooth connectivity built in.
06
Automatic standby
Enters standby after 2 hours.
Specifications
15 specificationsGeneral
CompatibilityActivPanel, ActivPanel i-Series, ActivBoard Touch, ActivBoard
Key FeaturesDual 20 W RMS speakers, Bluetooth, AUX, S/PDIF and USB-A inputs, automatic standby after 2 hours, ActivPanel and ActivBoard brackets
ModelASB-40-3
TypeSoundbar
What's in the BoxActivSoundBar, IR remote control, 5 m 3.5 mm AUX cable, 3 power cables (UK, EU, US), drilling guide, brackets and fittings, user guide
Audio
Frequency Response65 Hz – 20 kHz
Signal-to-Noise Ratio75 dB or more
Speaker Output2 x 20 W RMS
Speaker Size4 x 2.25 inch
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsAUX in × 1, S/PDIF × 1, USB-A × 1
Power
Standby Power0.5 W or less
Physical
Dimensions860 x 100 x 70 mm (L x W x H)
Weight4.0 kg (net)
Compliance
CertificationsCE, FCC, IC, ETL, CB, RCM, CCC, PSB, EAC, BSMI
Downloads
Manufacturer documents for the Promethean ActivSoundBar 3 Soundbar – ASB-40-3 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Promethean ASB-40-3?
It is the ActivSoundBar 3, a soundbar with 2 x 20 W RMS speakers, a 65 Hz to 20 kHz frequency response, and AUX, S/PDIF, USB-A and Bluetooth connectivity. The manufacturer lists it for ActivPanel and ActivBoard systems.
Is the ASB-40-3 compatible with my Promethean display?
Yes, for the listed displays. The manufacturer lists ActivPanel, ActivPanel i-Series, ActivBoard Touch and ActivBoard. Confirm your exact display model with Procure.ae before ordering, since the listing names specific systems only.
How is the ASB-40-3 mounted?
It includes ActivPanel and ActivBoard brackets, fittings and a drilling guide. The manufacturer's specifications do not state a VESA pattern, so confirm the fitting with Procure.ae before installation, particularly for the display model you are fitting it to.
Can I buy the ASB-40-3 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
