PrometheanInteractive Flat PanelsSKU AP7-U86

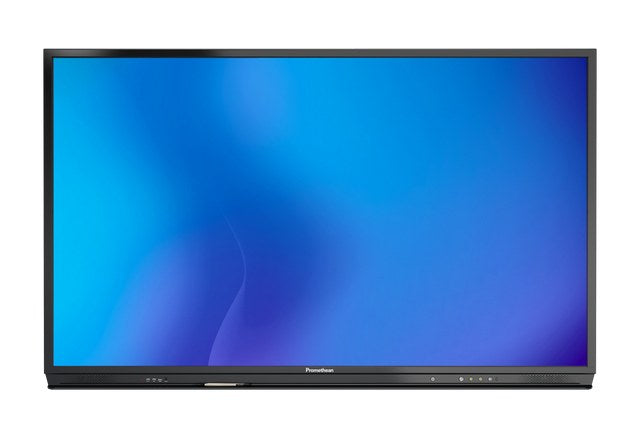

Promethean ActivPanel Nickel 86-inch Interactive Flat Panel – AP7-U86
The Promethean ActivPanel Nickel 86-inch (model AP7-U86) is a 4K UHD interactive flat panel for classrooms. It has a 86-inch 3840 x 2160 LCD, 15-point Vellum touch and Android OS. Procure.ae supplies the AP7-U86 across the UAE, including delivery and installation.
The AP7-U86 uses a 86-inch 4K UHD LCD panel at 3840 x 2160 resolution and 60 Hz, with 400 nits brightness, a 4,000:1 contrast ratio, 8 ms response time and a 178° viewing angle. Vellum writing technology supports 15 continuous touch points with 1 mm touch accuracy and palm detection. The panel has an ambient light sensor, anti-glare and heat-tempered glass, and front-facing controls for power, menu, volume and source selection. It includes one pen and two front-facing speakers rated 15 W each.
The built-in Android operating system provides the Unified Menu and the Locker for apps, tools and files, with classroom apps including whiteboard, annotate, timer, screen capture and a PDF reader. The panel supports Linux Ubuntu 18.04 LTS and Chrome OS alongside Windows and Mac, and it has Wi-Fi and RS-232 control. The VESA mount point is 700 x 400 mm. Compared with the Titanium models, the Nickel has 2 GB of RAM, 16 GB of storage and a 10/100 Mbps LAN port.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Vellum Writing Technology
- 4K UHD display
- Vellum writing
- Front controls
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution at 60 Hz on a 86-inch LCD panel
02
Vellum writing
15 continuous touch points with 1 mm touch accuracy
03
Front controls
power, menu, volume and source selection on the front
04
Built-in Android OS
Android 8 (Oreo) with the Unified Menu and Locker
05
Front speakers
two front-facing speakers rated 15 W each
06
Wi-Fi module
802.11a/b/g/n/ac 2x2 Wi-Fi included
07
Connectivity
HDMI In × 3, VGA In × 1, RS-232 and 10/100 Mbps LAN
08
Fanless design
ultra-quiet design with no cooling fan
Specifications
27 specificationsGeneral
Key FeaturesVellum touch, 15-point touch, Android OS, Wi-Fi module, OPS slot, fanless design, RS-232 control
ModelAP7-U86
TypeInteractive Flat Panel
What's in the BoxActivPanel Nickel, 3 m HDMI cable, 3 m USB cable, remote control, pen, VESA mount screws, mini PC bracket
Display
Aspect Ratio16:9
Brightness400 nits
Contrast Ratio4,000:1
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy1 mm
Touch Points15-point multi-touch
Touch TechnologyVellum Writing Technology
Viewing Angle178°
Performance
Operating SystemAndroid 8 (Oreo)
RAM2 GB
Storage16 GB
Audio
Speaker Output2 x 15 W
Connectivity
Input Voltage100–240 V AC
Power
Power Consumption450 W (maximum)
Physical
Dimensions2018 x 1236 x 113 mm
Operating Humidity20% to 80% non-condensing
Operating Temperature0 to 40 °C
VESA Mount700 x 400 mm
Weight84 kg (net)
Downloads
Manufacturer documents for the Promethean ActivPanel Nickel 86-inch Interactive Flat Panel – AP7-U86 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Promethean AP7-U86?
The AP7-U86 is a 86-inch 4K UHD interactive flat panel in the ActivPanel Nickel range of the ActivPanel Elements series. It has a 3840 x 2160 LCD panel, 15-point Vellum touch and a built-in Android operating system.
Does the AP7-U86 work with Windows and Mac computers?
Yes. The manufacturer lists support for Windows 8 to 10, OS X 10.8 to 10.11, macOS Sierra 10.12.1 or later, Ubuntu 18.04 LTS and Chrome OS, and the built-in Android system runs its own classroom apps.
How many touch points does the AP7-U86 support?
The AP7-U86 supports 15 continuous touch points with Vellum writing technology and 1 mm touch accuracy. Palm detection helps prevent accidental marks when a hand rests on the screen, and the touch resolution is 32768 x 32768 px.
Can the AP7-U86 be wall mounted?
Yes. The VESA mount point is 700 x 400 mm, and four M6 VESA mount screws are included. The manufacturer lists wall mount dimensions of 1010 x 720 x 52 mm, so check your wall fixing and clearance before installation.
Can I connect a laptop and other sources to the AP7-U86?
Yes. The panel has three HDMI inputs, a VGA input and an OPS slot. Connect a laptop or PC to HDMI, and use the USB touch ports to pass touch input back to the connected computer.
