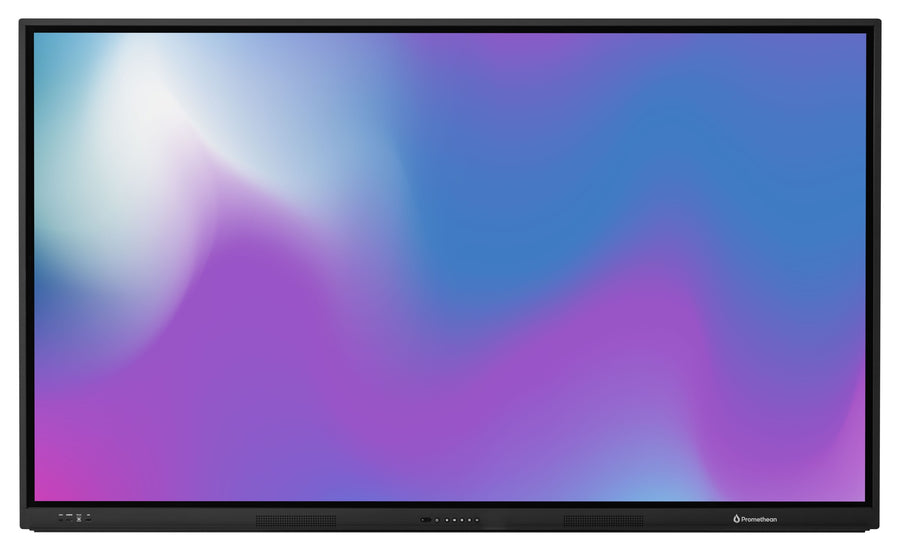

Promethean ActivPanel LX 75-inch Interactive Flat Panel – APLX-75
The Promethean ActivPanel LX 75-inch (APLX-75) is a 4K UHD interactive flat panel with no built-in operating system, so you choose Windows, Android or Chrome OS. It has 20-point touch, 350 nits brightness and an 800 x 400 mm VESA pattern. Procure.ae, an authorised reseller, supplies it in the UAE with delivery and installation.
The APLX-75 has a 75-inch 16:9 panel with 3840 x 2160 (4K UHD) resolution at 60 Hz, rated at 350 nits brightness and a 5,000:1 dynamic contrast ratio. Its 10-bit panel shows 1.07 billion colours with an 8 ms LCD response time. Touch uses 20 continuous touch points with 1 mm accuracy, palm rejection and palm erase. The glass is 8H pencil hardness, heat-tempered with an anti-glare finish. Two pens and an integrated full-length pen tray are included.
The panel has no built-in OS. You choose Windows, Android (EDLA-certified) or Chrome OS, and the manufacturer says the panel looks and feels familiar on whichever you use. It measures 1716 x 1033 x 110 mm and weighs 50 kg, with an 800 x 400 mm VESA pattern. Its ports include three HDMI 2.0 inputs, VGA, USB-C 2.0 with 15 W Power Delivery and two USB-B touch ports. Promethean lists OPS-A, OPS-M and Chromebox options, with availability varying by region.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Interactive Flat Panel
- OS-free design
- 4K UHD display
- 20-point touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
OS-free design
No built-in operating system, so you choose Windows, Android (EDLA-certified) or Chrome OS.
02
4K UHD display
75-inch 16:9 panel at 3840 x 2160 resolution and 60 Hz, with 350 nits brightness.
03
20-point touch
20 continuous touch points, 1 mm touch accuracy, palm erase and palm rejection.
04
Pen tray
Two pens and an integrated full-length pen tray.
05
Front speakers
Two front-facing speakers at 2 x 15 W (peak).
06
Port set
Three HDMI 2.0 inputs, VGA, USB-C 2.0 with 15 W Power Delivery and two USB-B touch ports.
07
Admin and software
ActivInspire Personal is included, with Wake-on-LAN and OTA updates.
08
Certifications
CE, FCC, IC, UL, CUL, CB and RCM, with ENERGY STAR for the 75-inch model.
Specifications
33 specificationsGeneral
CompatibilityWindows 7 to 11, Mac OS 10.8 to 10.11, macOS Sierra 10.12.1 or later, Linux Ubuntu 20.04 LTS, Chrome OS
Key FeaturesNo built-in OS, 4K UHD, 20-point touch, 350 nits, two pens, ActivInspire Personal, Wake-on-LAN, ENERGY STAR certified
ModelAPLX-75
TypeInteractive Flat Panel
What's in the BoxActivPanel LX panel, 3 m HDMI cable, 3 m USB cable (A-B), 3 m power cable, 2 m USB-C cable, remote control, remote batteries, 2 pens, antistatic bag, 4 VESA mount screws (M6), mini PC bracket
Display
Aspect Ratio16:9
Brightness350 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio5,000:1 dynamic, 1,200:1 static
Panel TechnologyTFT LCD (direct LED backlight)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Accuracy1 mm
Touch Points20-point multi-touch
Touch Response Time10 ms
Performance
Operating SystemNo built-in OS (choose Windows, Android or Chrome OS)
Audio
Audio In3.5 mm audio in
Speaker Output2 x 15 W (peak)
Connectivity
Ethernet10/100/1000 LAN in and out (RJ45), Wake-on-LAN
HDMI InputsHDMI 2.0 × 3 (2 rear, 1 front)
Input Voltage100–240 V AC
USB PortsUSB-A 2.0 × 3 (1 front, 2 rear), USB-B 2.0 touch × 2 (1 front, 1 rear)
USB-C PortsUSB-C 2.0 × 1 (front, 15 W Power Delivery)
VGA InputVGA × 1
Power
Power Consumption132 W (typical)
Physical
Dimensions1716 x 1033 x 110 mm
Operating Temperature0 to 40 °C
Surface Protection8H (pencil), 7 (Mohs), heat-tempered, anti-glare glass
VESA Mount800 x 400 mm
Weight50 kg
Compliance
CertificationsCE, FCC, IC, UL, CUL, CB, RCM, ENERGY STAR
Downloads
Manufacturer documents for the Promethean ActivPanel LX 75-inch Interactive Flat Panel – APLX-75 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the APLX-75?
The APLX-75 has a 75-inch 16:9 screen with 3840 x 2160 (4K UHD) resolution at 60 Hz. It is rated at 350 nits brightness and 5,000:1 dynamic contrast, with 20-point touch.
Does the APLX-75 come with an operating system?
No. The ActivPanel LX has no built-in operating system. You choose Windows, Android (EDLA-certified) or Chrome OS, and Promethean lists OPS-A, OPS-M and Chromebox options for the panel, with availability varying by region.
Can the APLX-75 connect to a laptop or PC?
Yes. Connect a laptop or PC through HDMI 2.0 or VGA, and use the USB-B 2.0 touch ports for touch input. The front USB-C 2.0 port supports 15 W Power Delivery.
Does the APLX-75 fit a wall mount or mobile stand?
Yes. The APLX-75 uses an 800 x 400 mm VESA mount pattern, and Promethean lists fixed and height-adjustable wall mounts and mobile stands as compatible with all sizes. The panel weighs 50 kg, so confirm the mount's load rating before installation.
How much power does the APLX-75 use?
The APLX-75 uses 132 W typical and 0.5 W or less on standby, on a 100 to 240 V AC supply. The manufacturer lists ENERGY STAR certification for the 75-inch model.
