PrometheanInteractive Flat PanelsSKU AP7-A75

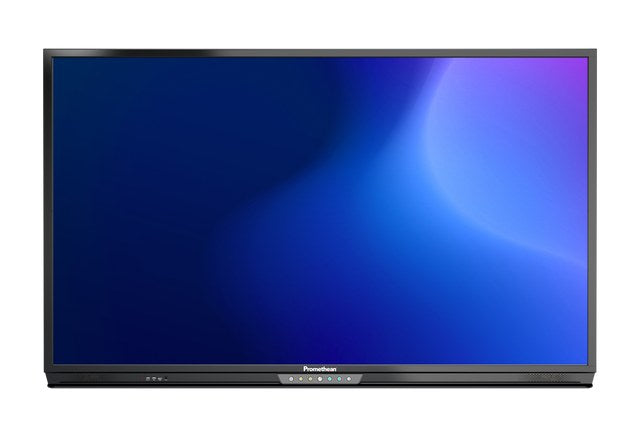

Promethean ActivPanel Cobalt 75-inch 4K UHD Interactive Flat Panel – AP7-A75
The Promethean ActivPanel Cobalt AP7-A75 is a 75-inch 4K UHD interactive flat panel with Vellum writing, 20 touch points and a built-in Android 8 system. It suits classrooms that need a self-contained teaching display with classroom tools such as Whiteboard and Annotate. This model is discontinued, and Procure.ae can confirm current availability in the UAE.
The ActivPanel Cobalt AP7-A75 has a 75-inch 4K UHD TFT LCD with direct LED backlight, 1.07 billion colours, a 4,000:1 contrast ratio and 350 nits brightness. Vellum writing technology supports 20 continuous touch points, with a 10 ms response and 1 mm accuracy. Pen and touch differentiation, palm detection and two pens are included. An ambient light sensor, dual front-facing 2 x 15 W speakers and heat-tempered, anti-glare glass complete the panel.
This Cobalt model belongs to the ActivPanel Elements series, which the manufacturer also lists as AP7-A65, AP7-A75 and AP7-A86. The panel runs a built-in Android 8 system with 3 GB RAM and 32 GB storage, a Unified Menu and a Locker for apps, tools and files. Classroom essential apps include Whiteboard, Annotate, Timer, Spinner, Screen Capture and Screen Share. An OPS slot, HDMI and DisplayPort inputs take external computers, and wall mounting uses a 600 x 400 mm VESA pattern.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Touch Technology
Vellum writing technology
- Vellum Writing
- 4K UHD Display
- Built-in Android
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Vellum Writing
20 continuous touch points with 10 ms response and 1 mm accuracy.
02
4K UHD Display
3840 x 2160 resolution at 60 Hz with 350 nits typical brightness.
03
Built-in Android
Android 8 (Oreo) with 3 GB RAM and 32 GB internal storage.
04
Classroom Essential Apps
Whiteboard, Annotate, Timer, Spinner, Screen Capture, Screen Share, Browser, PDF Reader and Media Players.
05
Angled Centre Console
Power, volume and menu controls on the centre console.
06
Dual Speakers
Dual front-facing speakers at 2 x 15 W.
Specifications
38 specificationsGeneral
CompatibilityWindows 8 to 10, OS X 10.8 to 10.11, macOS Sierra 10.12.1 or later, Ubuntu 18.04 LTS, Chrome OS
Key FeaturesVellum writing, 20-point touch, Classroom essential apps, Built-in Android 8, Angled centre console, OPS slot, Wi-Fi included, Remote over-the-air updates
ModelAP7-A75
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness350 nits
Contrast Ratio4,000:1
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Accuracy1 mm
Touch Points20-point touch
Touch Resolution32768 x 32768 px
Touch Response Time10 ms
Touch TechnologyVellum writing technology
Viewing Angle178°
Performance
Operating SystemAndroid 8 (Oreo)
ProcessorQuad-core ARM Cortex-A73 and A53, Mali-G51 MP2 GPU
RAM3 GB
Storage32 GB
Audio
Speaker Output2 × 15 W
Connectivity
Input Voltage100–240 V AC
OPS Slot1 OPS slot
PortsHDMI In × 3 (2 rear 2.0, 1 front), DisplayPort In × 1 (1.2), HDMI Out × 1 (2.0), USB-A 2.0 × 3, USB-A 3.0 × 1, USB Touch × 2, VGA In × 1, RJ45 LAN in/out, RS-232 × 1
Wi-Fi802.11a/b/g/n/ac, 2×2 (included)
Power
Power Consumption380 W (maximum)
Standby Power≤ 0.5 W
Physical
Dimensions1767 x 1093 x 106 mm
Operating Humidity20% to 80% non-condensing
Operating Temperature0 to 40 °C
Shipping Dimensions1880 x 1160 x 320 mm
Shipping Weight88.7 kg
VESA Mount600 x 400 mm
Weight64 kg
Compliance
CertificationsCE, FCC, IC, UL, CUL, CB, RCM, ENERGY STAR
Downloads
Manufacturer documents for the Promethean ActivPanel Cobalt 75-inch 4K UHD Interactive Flat Panel – AP7-A75 — datasheets, manuals, drawings and certificates.
- Datasheet – ActivPanel Elements – ActivPanel 2019 Cobalt SS 0420v2.2 EN-INTL
- User manual – ActivPanel Elements – TP-3000-EN-V04
- Quick start guide – ActivPanel Elements – ActivPanel Cobalt with USB-C Quick Install Guide (
- Certificate / compliance – ActivPanel Elements – ActivPanel Cobalt with USB-C Safety Guide (Multili
Questions
Can’t find your answer? Ask on WhatsApp
Does the Cobalt AP7-A75 have a built-in computer?
It has a built-in Android 8 operating system with a quad-core processor, 3 GB RAM and 32 GB storage. It also has one OPS slot for a compatible module, and external computers connect through the HDMI and DisplayPort inputs.
Is the AP7-A75 suitable for a classroom?
Yes. The panel includes classroom essential apps, Vellum writing with 20 touch points, pen and touch differentiation, palm detection and a centre console with power, volume and menu controls.
What VESA mount does the 75-inch model use?
The 75-inch model uses a 600 x 400 mm VESA mount point. The panel measures 1767 x 1093 x 106 mm and weighs 64 kg without packaging, so check the wall or stand rating before mounting.
What room size is the AP7-A75 for?
The manufacturer's specifications do not state a recommended room size. The 75-inch model is the larger of the two Cobalt sizes listed here, and it suits classrooms and meeting rooms.
Which operating systems does the AP7-A75 support?
The listing states compatibility with Windows 8 to 10, OS X 10.8 to 10.11, macOS Sierra 10.12.1 or later, Ubuntu 18.04 LTS and Chrome OS. The built-in system runs Android 8.
Can I buy the AP7-A75 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
