PrometheanInteractive Flat PanelsSKU AP9-B65

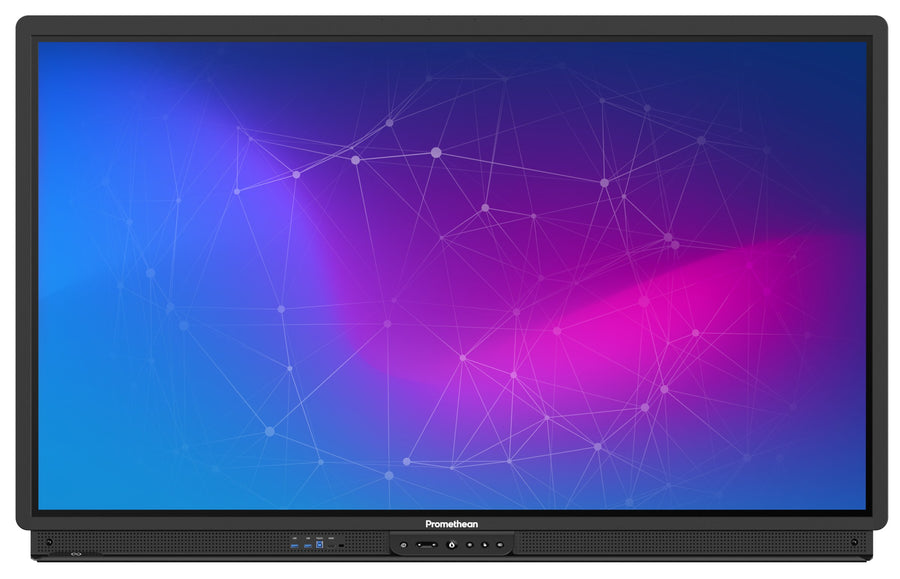

Promethean ActivPanel 9 Premium 65-inch Interactive Flat Panel – AP9-B65
The Promethean ActivPanel 9 Premium 65-inch (AP9-B65) is a discontinued 4K UHD interactive flat panel for classrooms and meeting rooms. It has 20-point touch, 400 nits brightness, a microphone array and 64 GB storage. Procure.ae, an authorised reseller, supplies it in the UAE with delivery and installation.
The AP9-B65 has a 65-inch 16:9 panel with 3840 x 2160 (4K UHD) resolution at 60 Hz, rated at 400 nits brightness and a 5,000:1 dynamic contrast ratio. It shows 10-bit colour with 1.07 billion colours and has an 8 ms LCD response time. Touch uses 20 continuous touch points with 5 ms or less touch response and 1 mm accuracy. Palm rejection covers both writing and non-writing hands. Four pens and a block eraser are included, along with an integrated full-length pen tray.
The panel runs ActivPanel OS, an Android-based system with 6.5 GB RAM and 64 GB internal storage. Its inputs are two rear HDMI (2.0 and 2.1), one front HDMI 2.0, DisplayPort 1.2 and VGA, and USB-C provides 100 W Power Delivery. It supports Windows 7 to 11, macOS, Linux Ubuntu 20.04 LTS and Chrome OS, and includes ActivInspire Professional. The 600 x 400 mm VESA pattern suits wall mounting. Compared with the standard ActivPanel 9, it adds a subwoofer, a microphone array, NFC and 64 GB storage.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Interactive Flat Panel
- 4K UHD display
- 20-point touch
- Four pens and eraser
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
65-inch 16:9 panel at 3840 x 2160 resolution and 60 Hz, with 400 nits brightness.
02
20-point touch
20 continuous touch points, 1 mm accuracy, and palm rejection for writing and non-writing hands.
03
Four pens and eraser
Four pens, a block eraser and an integrated full-length pen tray.
04
Microphone array
Built-in microphone array, listed with a subwoofer and two 18 W front speakers.
05
ActivPanel OS
Android-based operating system with 6.5 GB RAM and 64 GB internal storage.
06
USB-C power delivery
Rear USB-C 3.2 Gen 1 port with 100 W Power Delivery.
07
Software included
ActivInspire Professional and ActivSync are listed as included.
08
Connectivity
NFC, Wi-Fi 6 dual band, Bluetooth 5.0 and 1 Gbps LAN in and out.
Specifications
39 specificationsGeneral
CompatibilityWindows 7 to 11, Mac OS 10.8 to 10.11, macOS Sierra 10.12.1 or later, Linux Ubuntu 20.04 LTS, Chrome OS
Key Features4K UHD, 20-point touch, 400 nits, microphone array, subwoofer, four pens and block eraser, ActivInspire Professional, 100 W USB-C Power Delivery
ModelAP9-B65
TypeInteractive Flat Panel
What's in the BoxActivPanel 9 Premium panel, 3 m HDMI cable, 3 m USB cable (A-B), 3 m power cable, 2 m USB-C cable, remote control, remote batteries, 4 pens, block eraser, 4 VESA mount screws (M6), mini PC bracket
Display
Aspect Ratio16:9
Brightness400 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio5,000:1 dynamic, 1,200:1 static
Panel TechnologyTFT LCD (direct LED backlight)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Accuracy1 mm
Touch Points20-point multi-touch
Touch Response Time5 ms or less
Performance
Operating SystemActivPanel OS (Android-based)
RAM6.5 GB
Storage64 GB
Audio
Audio In3.5 mm AV-in, mic and PC audio
DisplayPortDisplayPort 1.2 × 1
MicrophoneMicrophone array
Speaker Output2 x 18 W front, 1 x 15 W subwoofer
Connectivity
BluetoothBluetooth 5.0
Ethernet1 Gbps LAN in and out (RJ45), Wake-on-LAN
HDMI InputsHDMI 2.0 × 2, HDMI 2.1 × 1 (2 rear, 1 front)
Input Voltage100–240 V AC
USB PortsUSB-A 3.2 Gen 1 × 4 (2 front, 2 rear), USB-A 2.0 × 1, USB-B 3.2 Gen 1 touch × 4 (1 front, 3 rear)
USB-C PortsUSB-C 3.2 Gen 1 × 1 (rear, 100 W Power Delivery)
VGA InputVGA In × 1
Power
Power Consumption111 W (typical)
Physical
Dimensions1508 x 945 x 85 mm
Operating Temperature0 to 40 °C
Surface Protection9H (pencil), 7 (Mohs), heat-tempered, anti-glare, anti-fingerprint glass
VESA Mount600 x 400 mm
Weight44.5 kg
Compliance
CertificationsCE, FCC, IC, UL, CUL, CB, RCM, ENERGY STAR
Security FeaturesTrusted Platform Module, cloud-based user profiles
Downloads
Manufacturer documents for the Promethean ActivPanel 9 Premium 65-inch Interactive Flat Panel – AP9-B65 — datasheets, manuals, drawings and certificates.
- Datasheet – ActivPanel 9 – ActivPanel 9 Premium 2022 SS 0524v1.8 EN-INTL
- Datasheet – ActivPanel 9 (Arabic) – ActivPanel 9 Premium 2022 SS 0524v1.8 AR-XM HR
- User manual – ActivPanel 9 – ActivPanel 9 - Accessory Guide (International)
- User manual – ActivPanel 9 – ActivPanel 9 Premium User Guide TP-3170 (US) 9-14-
- Certificate / compliance – ActivPanel 9
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the AP9-B65?
The AP9-B65 has a 65-inch 16:9 screen with 3840 x 2160 (4K UHD) resolution at 60 Hz. It is rated at 400 nits brightness and 5,000:1 dynamic contrast, with 20-point touch at 1 mm accuracy.
Does the AP9-B65 work with Windows and Mac computers?
Yes. The manufacturer lists compatibility with Windows 7 to 11, Mac OS 10.8 to 10.11, macOS Sierra 10.12.1 or later, Linux Ubuntu 20.04 LTS and Chrome OS. Connect a computer through HDMI, DisplayPort or VGA, and use the USB-B touch ports for touch connection.
What VESA mount and weight does the AP9-B65 need?
The AP9-B65 uses a 600 x 400 mm VESA mount pattern and includes four M6 VESA mount screws. The panel weighs 44.5 kg, so confirm that the wall or stand is rated for that load before installation.
Does the AP9-B65 come with pens and software?
Yes. Four pens, a block eraser, a remote control and a 3 m HDMI cable are in the box. ActivInspire Professional is listed as included, and the panel runs ActivPanel OS with 6.5 GB RAM and 64 GB storage.
How much power does the AP9-B65 use?
The AP9-B65 uses 111 W typical and 0.5 W or less on standby, on a 100 to 240 V AC supply. The manufacturer lists ENERGY STAR certification for the 65-inch model.
