PrometheanInteractive Flat PanelsSKU AP9-A65

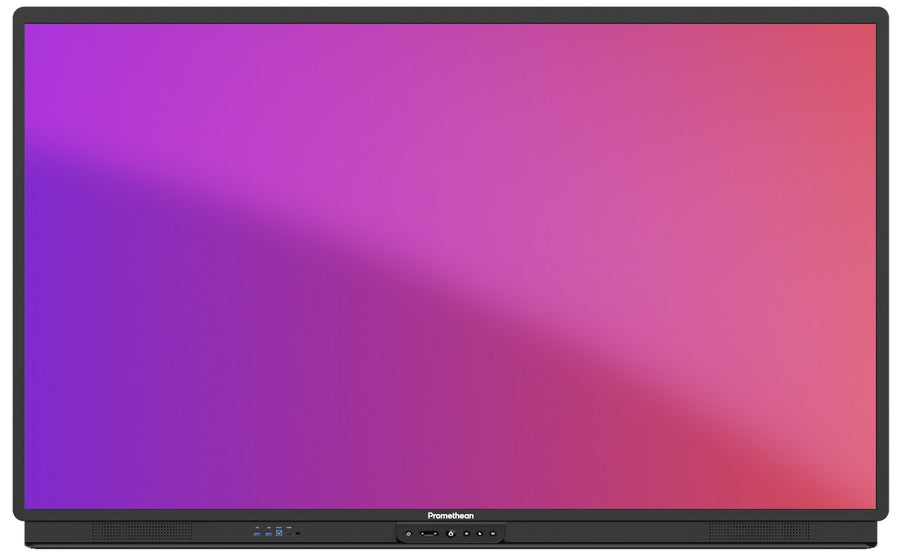

Promethean ActivPanel 9 65-inch Interactive Flat Panel – AP9-A65
The Promethean ActivPanel 9 65-inch (model AP9-A65) is a 4K UHD interactive flat panel for classrooms. It has a 65-inch 3840 x 2160 LCD, 20-point Vellum touch and an Android-based ActivPanel OS. Procure.ae supplies the AP9-A65 across the UAE, including delivery and installation.
The AP9-A65 uses a 65-inch 4K UHD LCD panel at 3840 x 2160 resolution and 60 Hz, with 400 nits display brightness, a 5,000:1 dynamic contrast ratio, 8 ms response time and a 178° viewing angle. Vellum touch supports 20 continuous touch points with 1 mm touch accuracy, palm rejection and pen and touch differentiation. The glass is bonded, anti-glare and anti-fingerprint, with blue light reduction, and the panel has two front-facing speakers rated 21 W peak each.
The ActivPanel OS is Android-based and supports cloud-based user profiles, a trusted platform module and Promethean admin tools for over-the-air updates. The panel supports Windows 7 to 11, macOS Sierra 10.12.1 or later, Ubuntu 20.04 LTS and Chrome OS, and it has Wi-Fi 6 and Bluetooth 5.0. Compared with the ActivPanel Titanium models, it adds Wi-Fi 6, a USB-C port with 60 W power delivery and a microSD slot.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Vellum Touch
- 4K UHD display
- Vellum touch
- Pen and palm rejection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution at 60 Hz on a 65-inch LCD panel
02
Vellum touch
20 continuous touch points with 1 mm touch accuracy
03
Pen and palm rejection
pen and touch differentiation with palm rejection and palm erase
04
ActivPanel OS
Android-based operating system with cloud-based user profiles
05
Trusted platform module
hardware security chip built into the panel
06
Connectivity
HDMI In × 3, DisplayPort In × 1, USB-C with 60 W power delivery
07
Wi-Fi 6 and Bluetooth
dual-band Wi-Fi 6 with Bluetooth 5.0
08
Fanless design
ultra-quiet design with no cooling fan
Specifications
29 specificationsGeneral
Key FeaturesVellum touch, 20 touch points, Android-based OS, Wi-Fi 6, OPS slot, trusted platform module, cloud-based user profiles, fanless design
ModelAP9-A65
TypeInteractive Flat Panel
What's in the BoxActivPanel 9, 3 m HDMI cable, 3 m USB cable, 2 m USB-C cable, remote control, 2 pens, VESA mount screws, mini PC bracket
Display
Aspect Ratio16:9
Brightness400 nits
Contrast Ratio5,000:1 (dynamic)
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Accuracy1 mm
Touch Points20-point multi-touch
Touch TechnologyVellum Touch
Viewing Angle178°
Performance
Operating SystemActivPanel OS (Android-based)
RAM4 GB
Storage32 GB
Audio
Speaker Output2 x 21 W (peak)
Connectivity
BluetoothBluetooth 5.0
Input Voltage100–240 V AC
Wi-FiWi-Fi 6 (802.11ax), dual band
Power
Power Consumption120 W (typical)
Physical
Dimensions1509 x 946 x 113 mm
Operating Humidity20% to 80% non-condensing
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight43.2 kg (panel, net)
Downloads
Manufacturer documents for the Promethean ActivPanel 9 65-inch Interactive Flat Panel – AP9-A65 — datasheets, manuals, drawings and certificates.
- Datasheet – ActivPanel 9 – ActivPanel 9 2022 SS 0524v2 EN-INTL
- Datasheet – ActivPanel 9 (Arabic) – ActivPanel 9 2022 SS 0524v2 AR-XM
- User manual – ActivPanel 9 – ActivPanel 9 - Accessory Guide (International)
- User manual – ActivPanel 9 – ActivPanel 9 User Guide (US) 9-14-2023
- Certificate / compliance – ActivPanel 9
Questions
Can’t find your answer? Ask on WhatsApp
What is the Promethean AP9-A65?
The AP9-A65 is a 65-inch 4K UHD interactive flat panel in the ActivPanel 9 range of the ActivPanel Elements series. It has a 3840 x 2160 LCD panel, 20-point Vellum touch and a built-in Android operating system.
Does the AP9-A65 work with Windows and Mac computers?
Yes. The AP9-A65 supports Windows 7 to 11, macOS Sierra 10.12.1 or later, Ubuntu 20.04 LTS and Chrome OS, and it runs the Android-based ActivPanel OS. A computer connects over HDMI or DisplayPort to show its screen.
How many touch points does the AP9-A65 support?
The AP9-A65 supports 20 continuous touch points with Vellum writing technology and 1 mm touch accuracy. Palm detection helps prevent accidental marks when a hand rests on the screen, and the touch resolution is 32768 x 32768 px.
Can the AP9-A65 be wall mounted?
Yes. The VESA mount point is 600 x 400 mm, and four M6 VESA mount screws and a mini PC bracket with screws are included. The manufacturer lists wall mount dimensions of 1010 x 720 x 52 mm, so check your wall fixing and clearance before installation.
Can I connect a laptop and other sources to the AP9-A65?
Yes. The panel has three HDMI inputs, a DisplayPort input, a USB-C port with 60 W power delivery and USB touch ports. Connect a laptop or PC over HDMI or DisplayPort, and use the USB touch ports to pass touch input back to the connected computer. The USB-C port is rated for 60 W power delivery.
