PrometheanInteractive Flat PanelsSKU AP10‑B86‑EU‑1

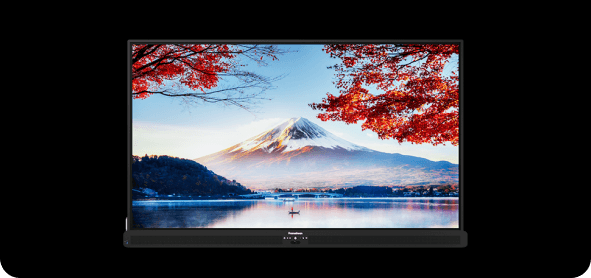

Promethean ActivPanel 10 Premium 85-Inch 4K Interactive Display
The Promethean ActivPanel 10 Premium 85-Inch 4K Interactive Display is a interactive flat panel available in the UAE from Procure.ae.
Transform your classroom or meeting space with the Promethean ActivPanel 10 Premium 85-Inch 4K Interactive Display , SKU AP10‑B86‑EU‑1 . This advanced interactive flat panel offers an ultra-large 85-inch 4K display with stunning visuals and responsive touchscreen technology to engage students, teams, or audiences. With its intuitive interface and premium build, the ActivPanel 10 is perfect for collaborative learning and seamless presentations. Designed to integrate easily into modern classrooms and business environments, this interactive display delivers vibrant colors, crystal-clear image.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
1034 nits
Touch Technology
Vellum Touch Technology
- Ultra-HD 4K Resolution
- Multi-Touch Capability
- Integrated Android OS
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra-HD 4K Resolution
Experience crystal-clear visuals and lifelike image quality on a massive 85-inch screen.
02
Multi-Touch Capability
Supports up to 20 simultaneous touch points for collaborative activities and group work.
03
Integrated Android OS
Enjoy a user-friendly interface with access to a wide range of educational and business apps.
04
Robust Connectivity
Multiple HDMI, USB, and wireless options facilitate seamless device integration.
05
Durable Tempered Glass
Resistant to scratches and fingerprints, ensuring long-lasting clarity and protection.
06
Powerful Audio System
Built-in speakers deliver immersive sound, enhancing presentations and multimedia content.
07
Remote Management
Easily manage and update your ActivPanel remotely for maximum convenience and security.
08
Pen and Touch Differentiation
Offers precise writing and gesture recognition for a natural, intuitive user experience.
Specifications
42 specificationsGeneral
Key FeaturesPalm rejection, Pen and touch differentiation, Wake on LAN, Sensors: Proximity, Ambient light
What's in the BoxHDMI Cable × 1, USB Cable (A-B) × 1, Regional Power Cable × 1, USB-C Cable × 1, USB-C ActivPen 2 Charging Cable × 1, All-in-one Remote Control, Passive Pens × 2, ActivPen 2 × 1, ActivPen 2 Charger and BT module × 1, Sealed Antistatic Bag × 1, Desiccant × 8, VESA Mount Screws (M8) × 4, Mini PC Bracket with Screws × 1, Quick Install Guide × 1, Promethean ActivSuite Activation Hangtag × 1
Display
Aspect Ratio16:9
BacklightDirect LED
Blue Light FilterYes
Brightness1034 nits
Color Depth10-bit (1.07 billion colours)
Contrast Ratio16,500:1
Panel TechnologyLCD
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Accuracy<1 mm
Touch Points50-point multi-touch
Touch Resolution32768 x 32768
Touch Response Time3 ms
Touch TechnologyVellum Touch Technology
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemNo built-in OS
Audio
Audio OutAudio out × 1
DisplayPortDisplayPort 1.4 × 1
Microphone8-mic array
Speaker Output2 × 25 W + 20 W subwoofer
Speaker TypeBuilt-in
Connectivity
EthernetRJ45 (Gigabit) × 2
HDMI InputsHDMI In (HDMI 2.1) × 2
HDMI OutputsHDMI Out (HDMI 2.0) × 1
OPS SlotOptional
Serial PortRS-232 × 1
Touch USB PortsTouch USB × 3
USB PortsUSB-A 3.2 Gen 1 × 3 (Rear), USB-A 2.0 × 1 (Rear), USB-A 3.2 Gen 1 × 1 (Front), USB-A 3.0 × 1 (Top), USB-C 3.0 × 1 (Top), USB-C 3.0 × 1 (out)
USB-C PortsUSB-C (100 W charging (Rear), 65 W charging (Front))
Power
Power Consumption< 117 W
Standby Power≤ 0.5 W
Physical
Dimensions1955 x 1197 x 107 mm
Operating Humidity20% to 80% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2105 x 185 x 1280 mm
Surface ProtectionAnti-glare smooth glass
VESA Mount800 x 600 mm
Weight67.9 kg
Downloads
Manufacturer documents for the Promethean ActivPanel 10 Premium 85-Inch 4K Interactive Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the Promethean interactive flat panel used for?
Transform your classroom or meeting space with the Promethean ActivPanel 10 Premium 85-Inch 4K Interactive Display , SKU AP10‑B86‑EU‑1 . This advanced interactive flat panel offers an ultra-large 85-inch 4K display with stunning visuals and responsive touchscreen technology to engage students,.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Vellum Touch Technology touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
Request a quote via WhatsApp wa.me/97145465041 or email info@procure.ae.
